Engineering via SICAM WEB
162 SICAM RTUs, User Manual SICAM CMIC
DC8-001-2.09, Edition 08.2016
The settings on the protocol element reside in the directory tree under
SICAM CMIC | Master module | PRE <0…3>: <protocol name> | Advanced settings |
IEC 60870-5-101 (applies only for end-end traffic and multi-point traffic).
You find the information thereto in the manual SICAM RTUs Common Functions Protocol El-
ements, chapter "Multi-Point Traffic (UMP)", section "Communication according to
IEC 60870-5-101", "Data Acquisition by Polling (Station Interrogation)".
5.1.7.5 Data Management and Priority Control

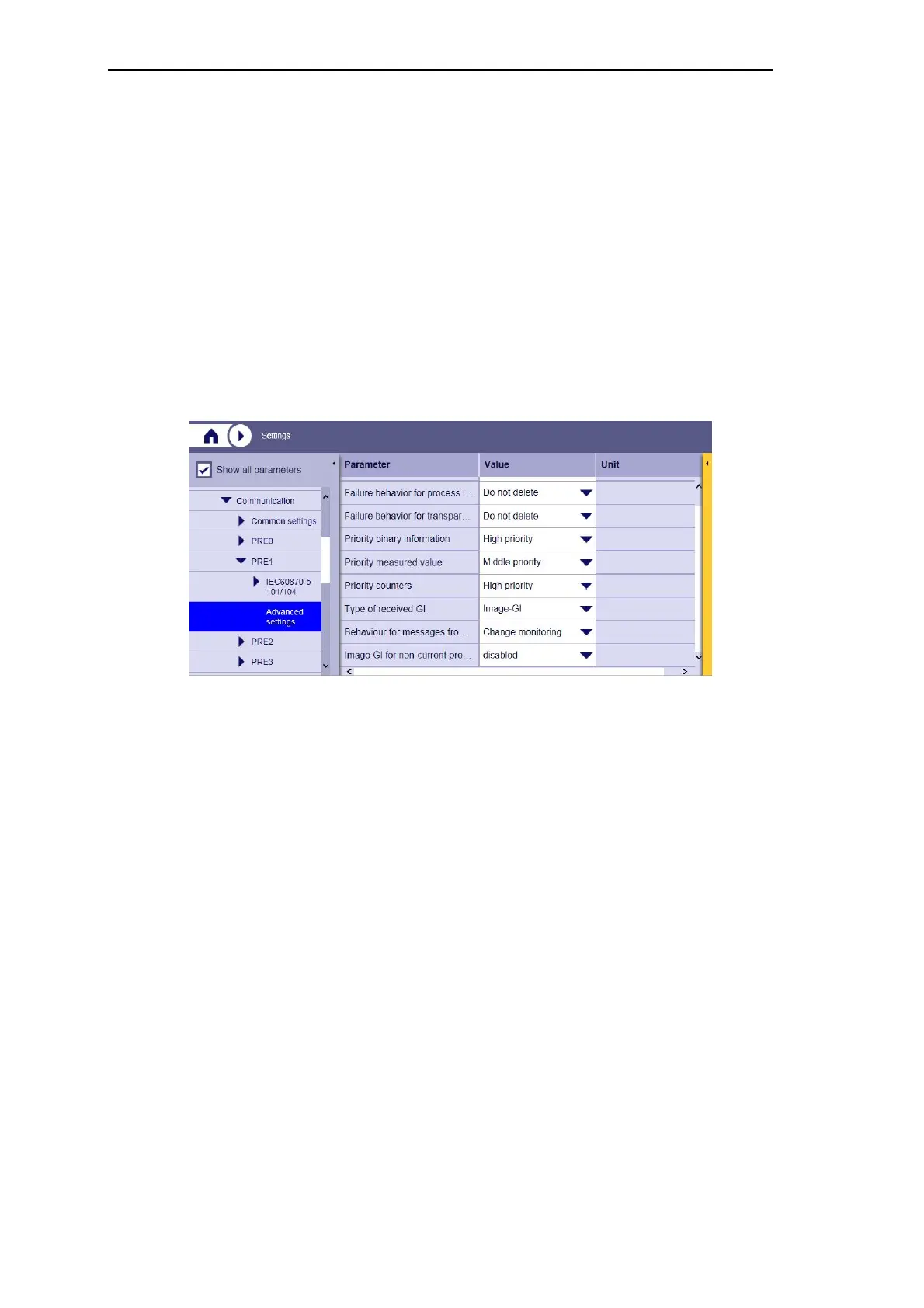

The settings for data management and priority controltraffic) reside in the directory tree under
SICAM CMIC | Master module | Communication | PRE<0…3> | Advanced settings.
(the checkbox Show all parameters must be activated).
• Behavior upon communication failure
• Priority for the emission
You find the information thereto in the manual SICAM RTUs Common Functions System and
Basic System Elements, chapter "Telecontrol", section "Communication with other Automation
Units", section "Data Storage", "Behavior during a Communication Failure" and section "Priori-
ty Control".
