Installation
32 SICAM RTUs, User Manual SICAM CMIC
DC8-001-2.09, Edition 08.2016

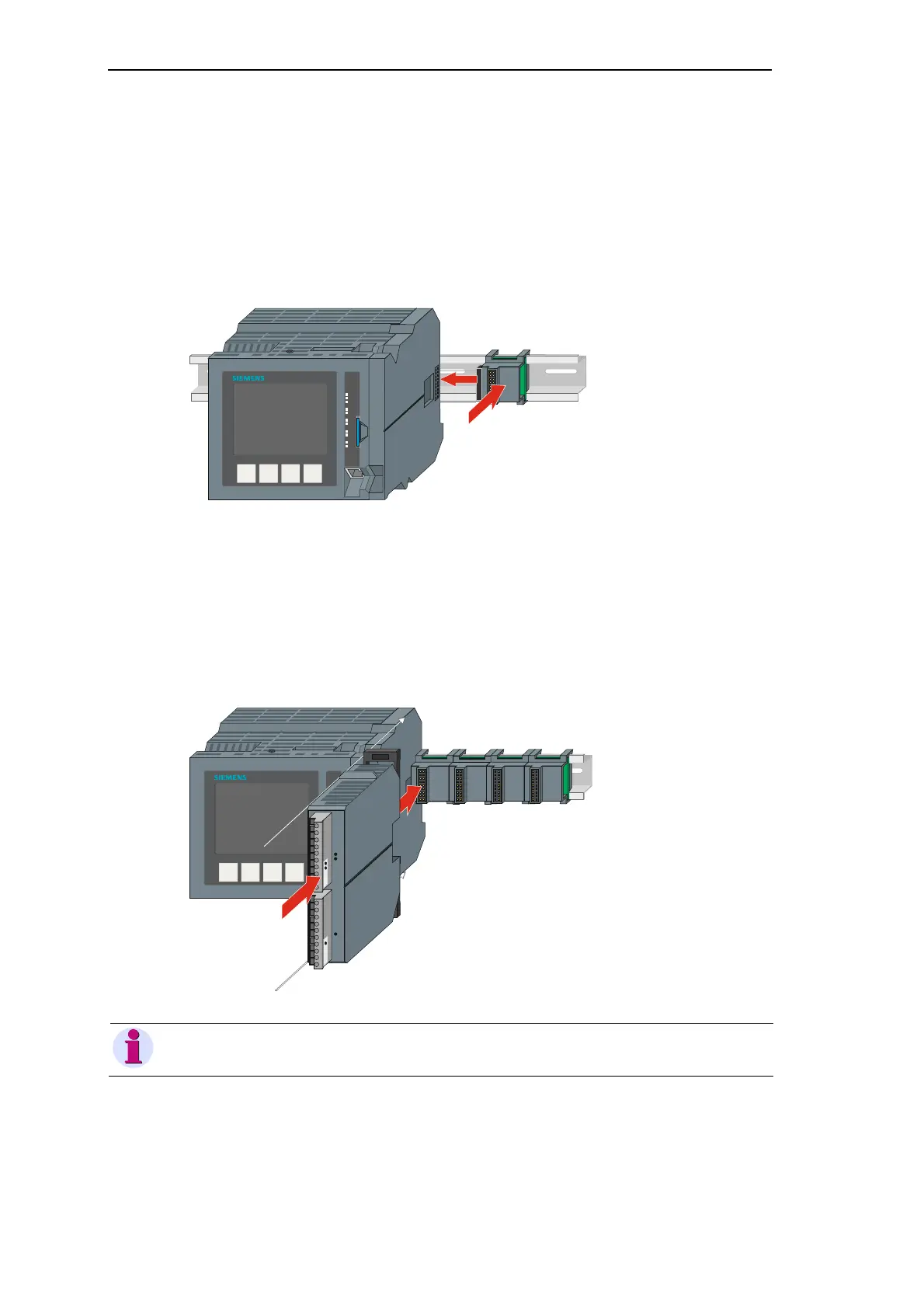

1.3.8.2 Mounting of the Bus Connector for SICAM I/O Modules
Each SICAM I/O module is equipped with a bus connector. These bus connectors must be
equipped separated from the I/O module. Hence you have to disconnect the bus connector
from the I/O module before.
Mount the first bus connector right from the device/coupling module on the DIN rail. Push it in-
to the bus plug of the coupling module k. Both elements must be aligned seamless.
Afterwards you can mount the bus connectors of further I/O modules in the same way.
1.3.8.3 Mounting of the SICAM I/O Modules
The SICAM I/O modules can be mounted a shown in following picture.
Note
The tongue and groove system integrated in the modules facilitates the correct combination. The module
is only connected correctly when the locking hook is snapped onto the DIN rail.
S ICAM CMIC
F4F3F2F1
SICAM CMIC
P OK
RY
ER
E TH
LK1
P K1
R S - 2 32
OH2
RTX2
R S - 4 85
OH3
RTX3
E TH
LK4
P K4
SD
X4
k
j
SICAM CM IC
F4F3F2F1
SICAM CMIC
POK
RY
ER
E TH
LK1
PK1
R S - 232
OH2
RTX2
R S - 485
OH3
RTX3
E TH
LK4
PK4
SD
X4
RY
