Engineering via SICAM WEB
SICAM RTUs, User Manual SICAM CMIC 225
DC8-001-2.09, Edition 08.2016
5.1.10.2 Display Process Values
If you select an I/O module for the process display, SICAM WEB performs the following steps:
Load signal assignments for the selected I/O module from the target device
Load actual process values and the according states from the target device
Note
If you modify the signal assignments for an I/O module, these changes are not immediately visible in the
test page. After changing a signal assignment you save the settings, after that a startup of the target de-
vice is required. Only then the data in the test page is loaded again from the device when selecting the
corresponding I/O module.
When selecting an I/O module, a table is displayed in the status area right beside the directory
tree. Each row of the table is a signal assignment of the related I/O module. The displayed
values can be read only.
The table contains the following columns:
Checkbox
(only for signal output)
Datapoint
Datapoint name and Hardware pins on the I/O module
Value
Actual process value
Since
Time tag of the last change of state
Signal
Name
*)
and IEC 60870-5-101/104 address
TI
Type identification
––––––
*)
empty, if engineered with an older SICAM WEB version or with the SICAM TOOLBOX II
You can change the column width with exception of the fixed columns. The column width is
maintained during the session, even if another menu is selected. Only if you select another
I/O module, the column width will be reset.

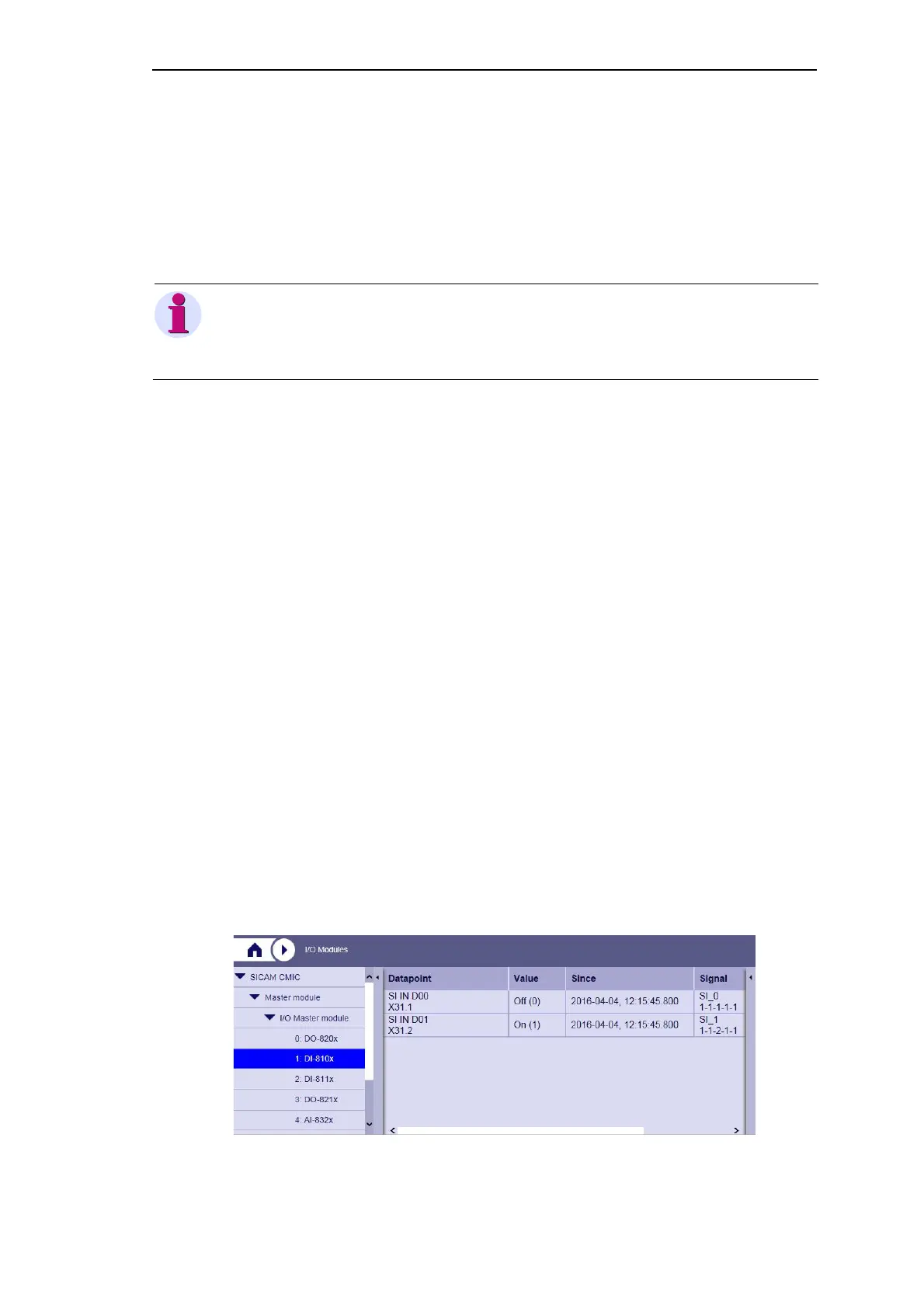

Example: Digital input – single-point information
