Siemens SICAM CMIC - Position of the Interfaces on the Housing

Interfaces and Circuitry
48 SICAM RTUs, User Manual SICAM CMIC
DC8-001-2.09, Edition 08.2016
2.1 Position of the Interfaces on the Housing
The interfaces are positioned on the SICAM CMIC housing according to their use.
X2
X3
X1

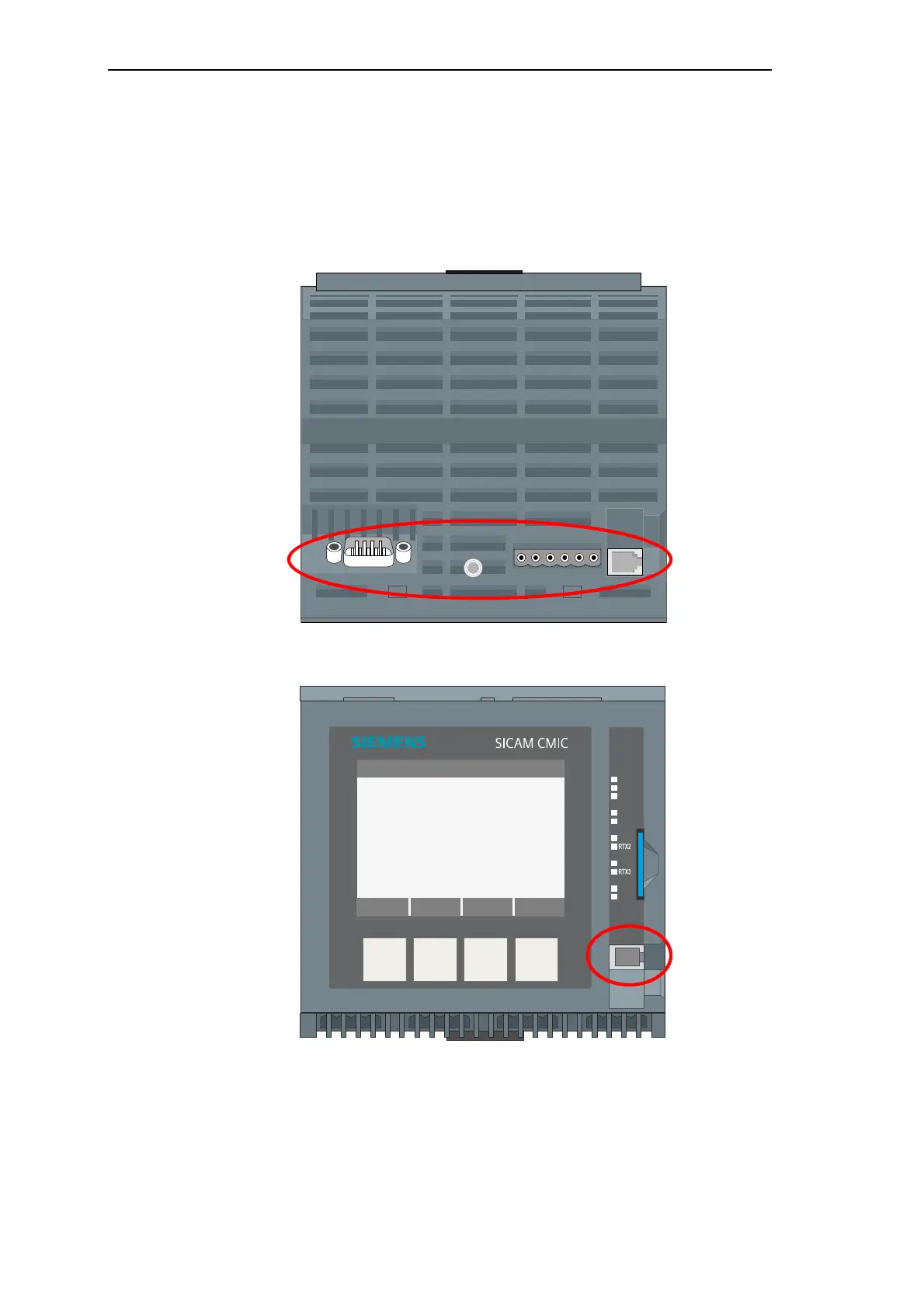

Interfaces on the
top of the housing
Communication
X2: RS-232
X3: RS-485
X1: Ethernet
F4F3F2F1
POK
RY
ER
ETH
LK1
PK1
RS-232
OH2
RS-485
OH3
ETH
LK4
PK4
SD
X4
Interfaces on the
front of the housing
Communication
X4: Ethernet
