Preparing the Engineering
SICAM RTUs, User Manual SICAM CMIC 73
DC8-001-2.09, Edition 08.2016
3.5 SD Card

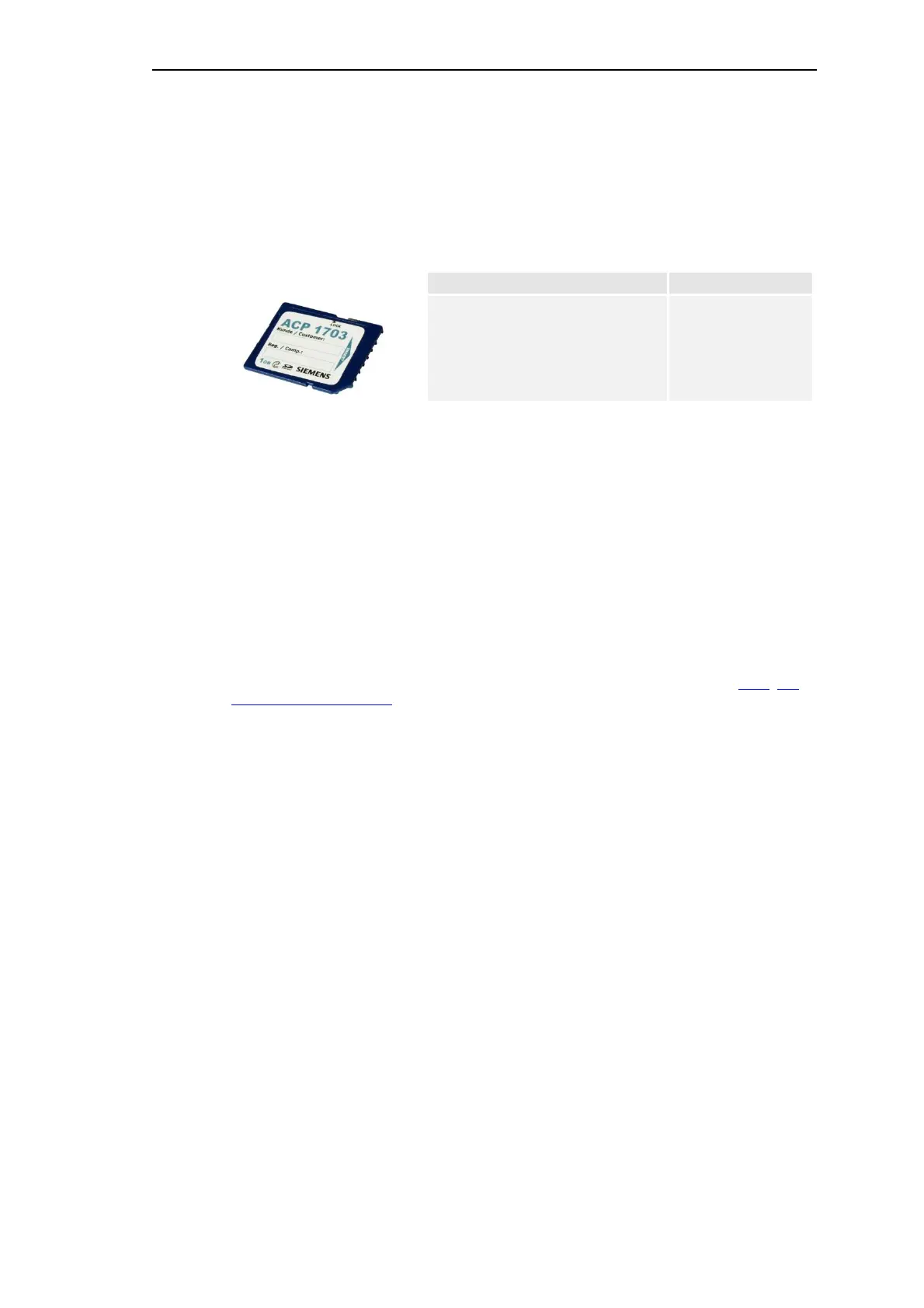

For the storage of engineering data SICAM CMIC needs the following SD card. This resides in
the slot at the front of the housing.
Designation Item number/MLFB
SD card up to 32 GB
Temperature range up to -25°C
CC6-095
6MF12131GA050AA0
With delivery of SICAM CMIC, all required files for the correct operation are stored in folders
on the SD card:
• Firmware SICAM WEB (Kurztext: SWEB00)
Name oft he binary file: SCD-001-1_01.web
• The Web files for SICAM WEB are unzipped on the SD card in the folder
SYSTEM\SICWEB
• The master data for SICAM WEB are unzipped on the SD card in the subfolders of
SYSTEM\SICWEB\FW
• Firmware of the device (e.g. SICAM CMIC: CPC80)
Name of the binary file: SC8-080-1_xy.bin
With usage of another suitable SD card, please consider the instruction in section 6.4.4, Re-
placement of the SD Card.
3.5.1 SD Card Reader/Writer
For archiving purposes, the engineering data and firmwares stored on the SD card can be
read with a standard commercial SD card reader/writer and be stored on a PC. On the other
hand, in particular for the initialization of a target device, the data can be written from a PC to
the SD card.
The driver software required for the use of the SD card reader/writer must be installed pre-
viously on the PC. Follow thereto the instructions of the manufacturer.
The SD card must be formatted with the file system FAT16.
