Engineering via SICAM TOOLBOX II
SICAM RTUs, User Manual SICAM CMIC 125
DC8-001-2.09, Edition 08.2016
4.2.1.4 Program Code Generation
Before the loading of the open-/closed-loop control function into the target device, the program
code must be generared.
You can start the code generation via the CAEx plus Transformer or from “CAEx plus”, via the
context menu of the basic system element (resource).

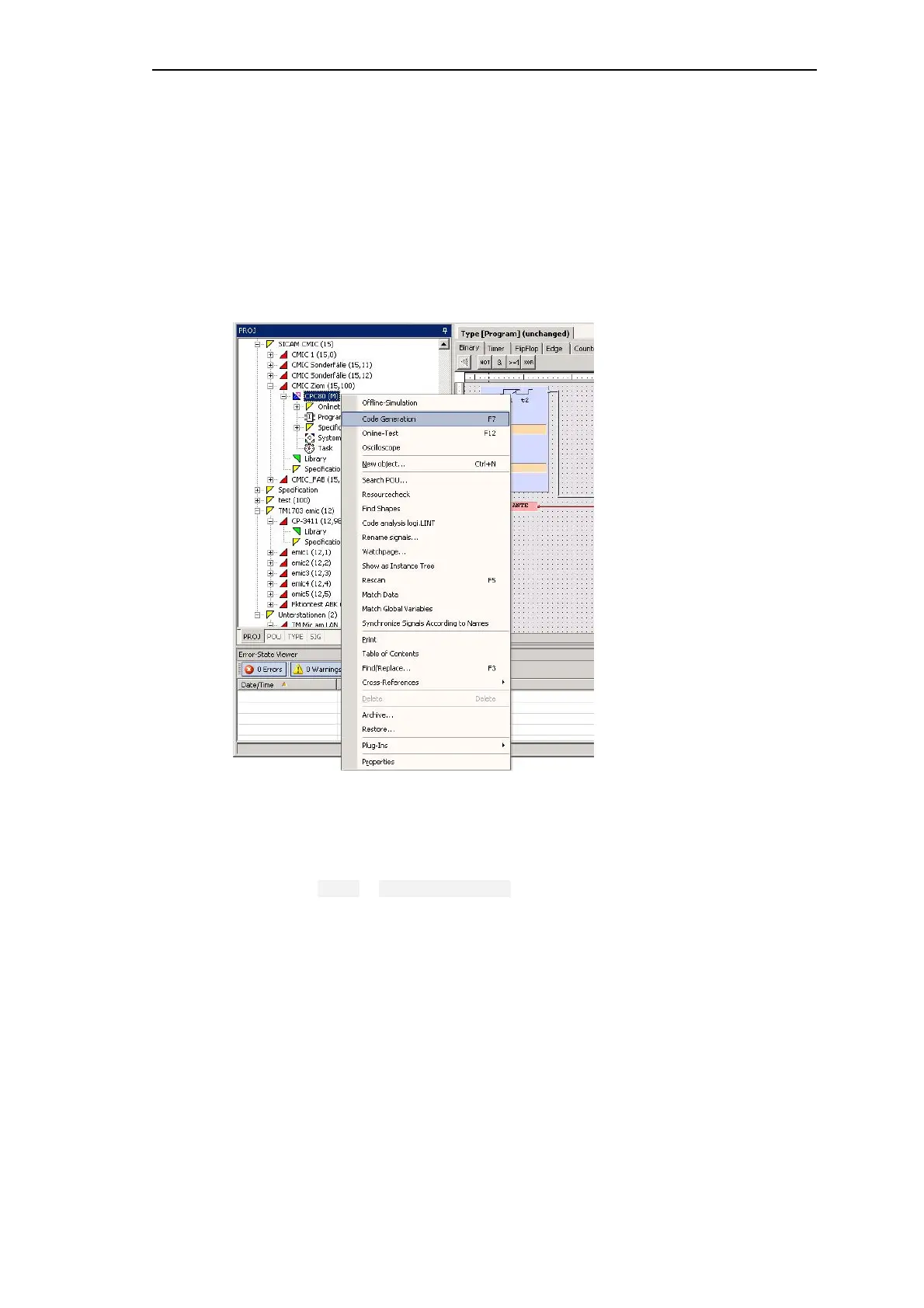

Start of the Program Code Generation
The function diagram is now translated and checked by a compiler. Simultaneously the pro-
gram code is created as instruction list (IL) in the folder “Specification”.
Via the menu Tools | Error-state viewer you can activate the notification display of the
code generation. There are recorded common notifications (as for instance information about
the occupied storage space for code and variables), as well as detected errors in detail.
