1.3.4 Installation Position
SICAM CMIC may only be installed horizontally.

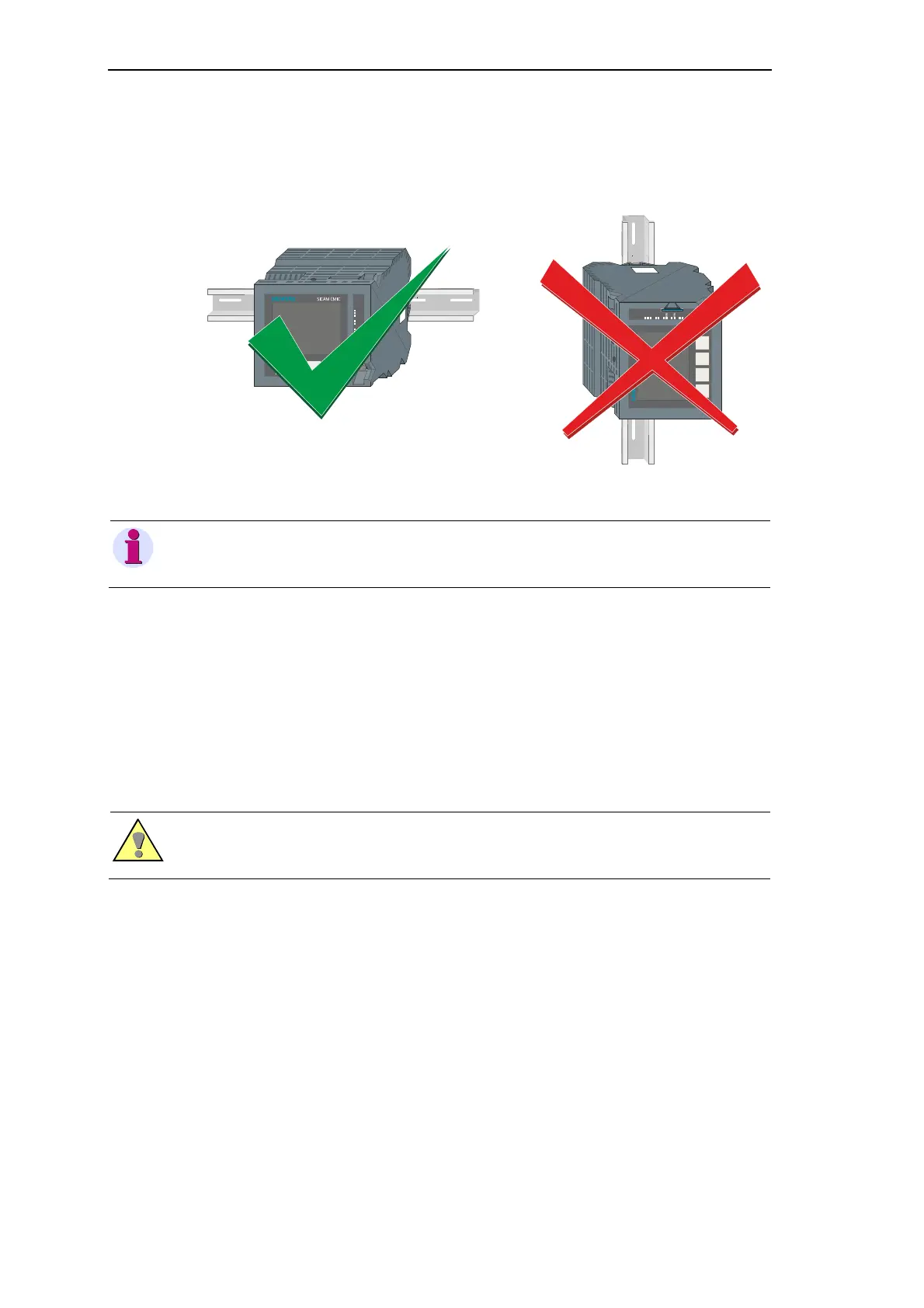

horizontal mounting position vertical mounting position
Note
Not permitted is the vertical installation or installations on the ceiling and on the floor (excessive tempera-
ture, dust load).
1.3.5 DIN Rail (TS35 Rail)
For the installation of SICAM CMIC a DIN rail is to be used, which conforms to the European
Standard EN 50 022. The orientation and position in which the DIN rail is to be installed must
be determined locally.
The DIN rail must be installed horizontally on a vertical wall.
Warning
The connection of the DIN rail with the cabinet/rack must guarantee a reliable grounding of SICAM CMIC.
The cabinet/rack itself must be grounded properly.
