288 SICAM RTUs, User Manual SICAM CMIC
DC8-001-2.09, Edition 08.2016
Submenu Submenu Display/settings Meaning/range
3.3
Cockpit
<Group 1>
<Group 2>
<Group 3>
:
<Group 32>
Signal name Freely definable text
Status Freely definable text (applies
for binary information)
Value Freely definable text (applies
for analog information)
Unit Freely definable text (applies
for analog information)
Quality bit Valid for process-events
(TI 30 and TI 31) only:
?: not topical
!: invalid
#: blocked
$: substituted
6.1.2.4.6 I/O Modules

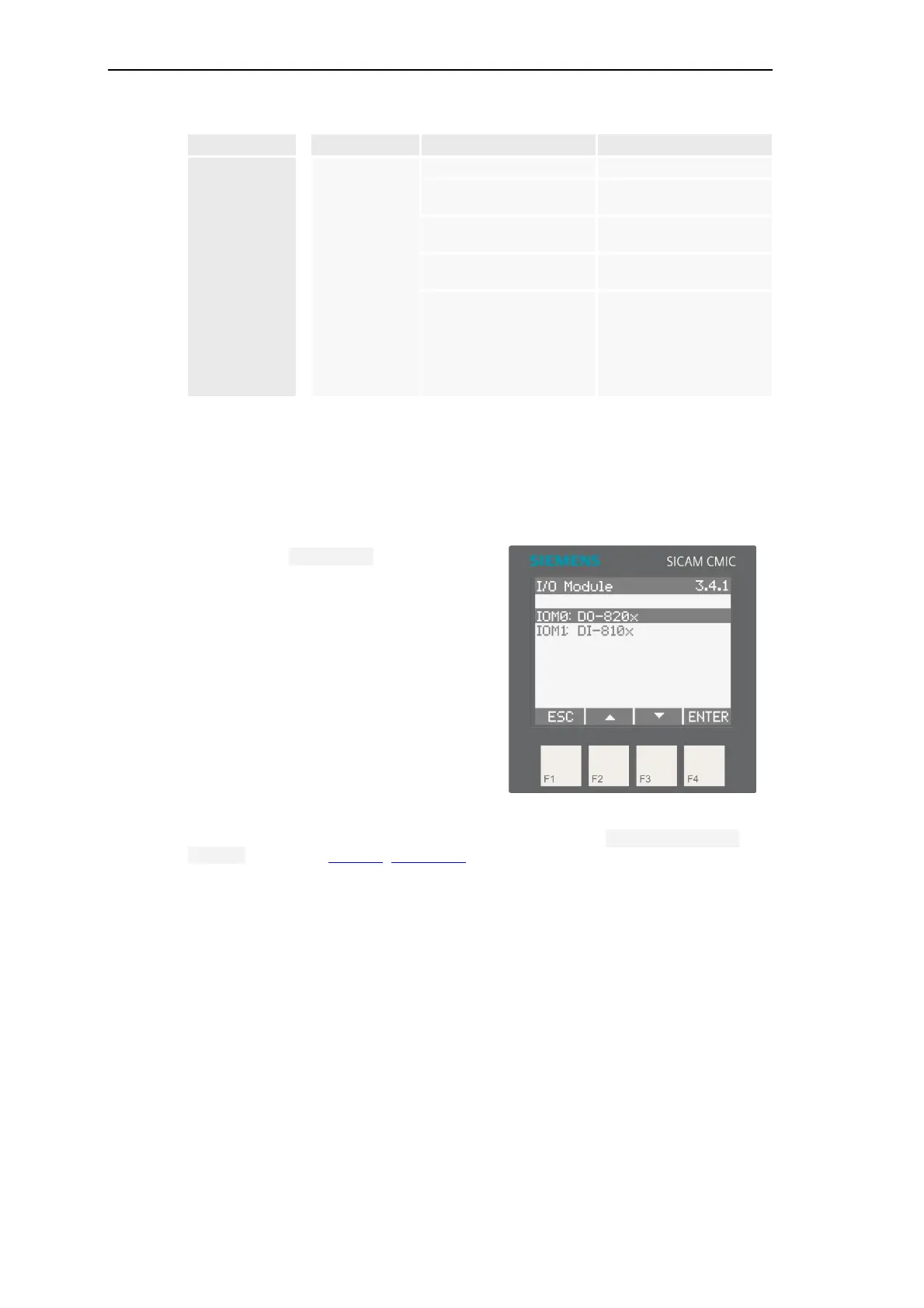

In the submenu I/O Modules you can select
the status display fort he individual I/O modules
(only with equipped PE).
(The image besides shows the standard sub-
menu.)
The menu structure and the display corresponds with the submenu Configuration | I/O
Modules (see section 6.1.2.3.1, I/O Modules).
