Interfaces and Circuitry
60 SICAM RTUs, User Manual SICAM CMIC
DC8-001-2.09, Edition 08.2016

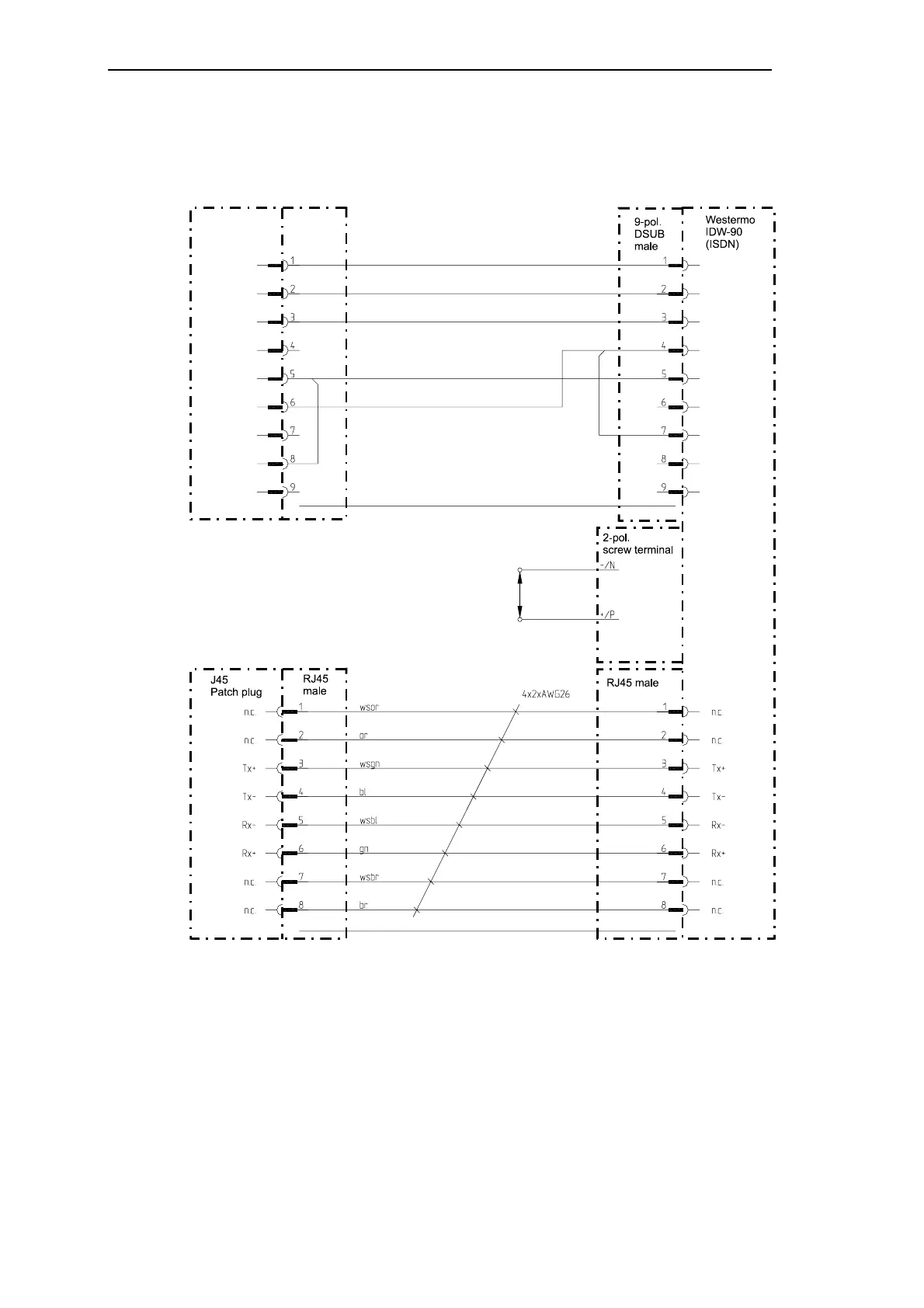

2.4.3 Modem Cable for Dial-Up Traffic (ISDN)
Wiring
SICAM
CMIC
AUX V0+
AUX V0-
(12/24V)
X2:1
DCD
RXD
TxD
DTR
GND
DSR
RTS
CTS
NC
X2:2
X2:3
X2:4
X2:5
X2:6
X2:7
X2:8
X2:9
DCD
RXD
TxD
DTR
GND
DSR
RTS
CTS
NC
9-pol.
DSUB
female
Shield
Shield
Shield
Shield
