3.6 Interfaces for the Communication

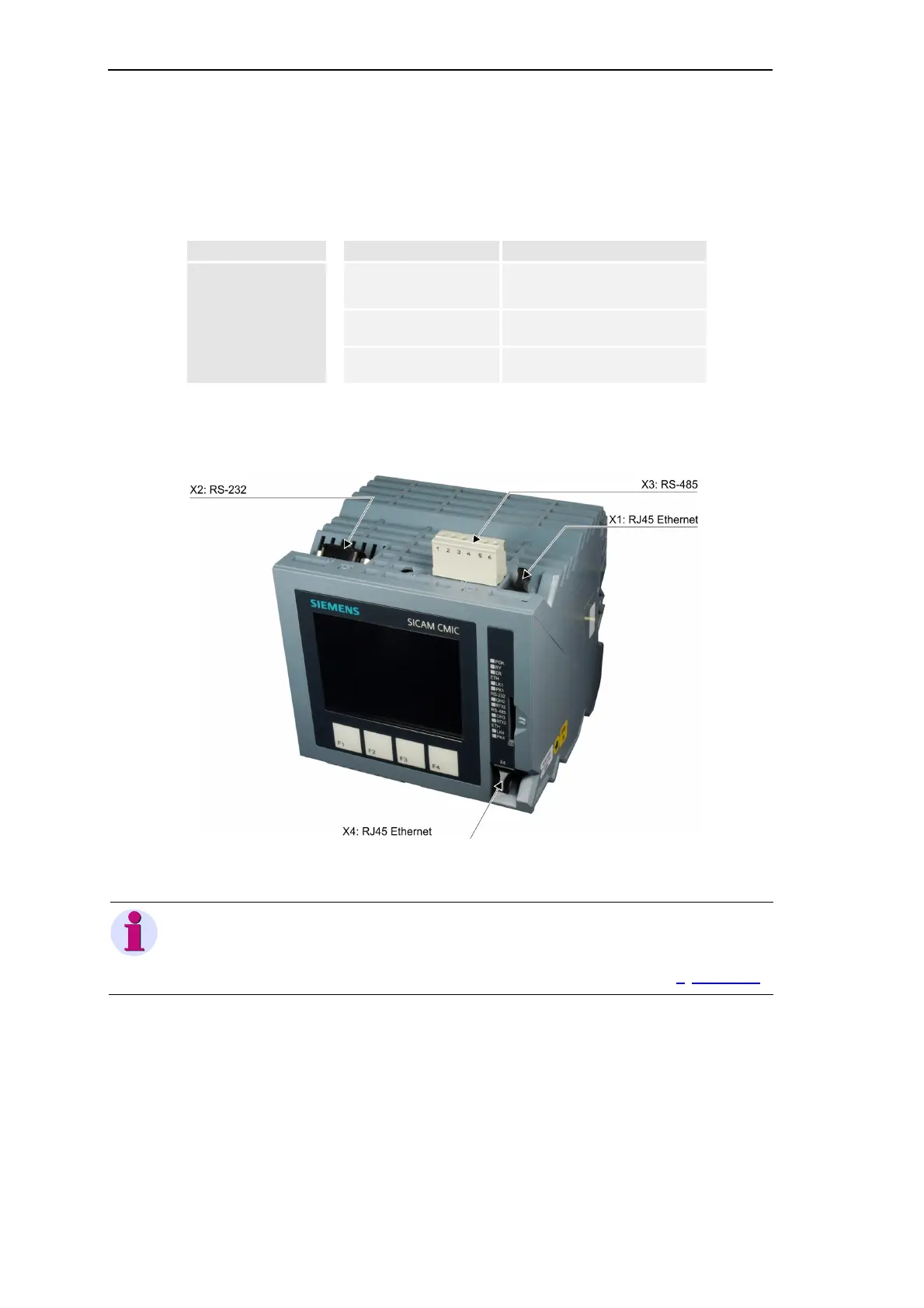

SICAM CMIC provides the following interfaces for engineering and maintenance:
System elemente Interface Engineering tool
CP-8000/CPC80 X1 (Ethernet TCP/IP)
X4 (Ethernet TCP/IP)
SICAM TOOLBOX II or
SICAM WEB
X2 (serial RS-232)
*)
SICAM TOOLBOX II or
SICAM WEB
X3 (serial RS-485) SICAM TOOLBOX II (indirectly via
SICAM AK or SICAM TM)
*)
with additional input for external auxiliary voltage (supply for external modem)
Note
Via the duplicated Ethernet link (X1 and X4 in switch mode) it is for instance possible to connect a local
engineering PC and at the same time a GPRS modem for the communication to the central station.
Furthermore, X1 and X4 can be operated via 2 independent IP addresses, see appendix F, Use Cases.
For the transmission of engineering data to a system SICAM CMIC, the engineering PC must
be connected with the target device, and a suitable SD card must be equipped in the target
device.
