Engineering via SICAM WEB
SICAM RTUs, User Manual SICAM CMIC 151
DC8-001-2.09, Edition 08.2016
5.1.4.2 Protocol Elements
You can equip up to 4 protocol elements. The hardware for a protocol element is integrated on
the master module.
The selection of the protocol elements resides in the directory tree also under
SICAM CMIC | Master module.

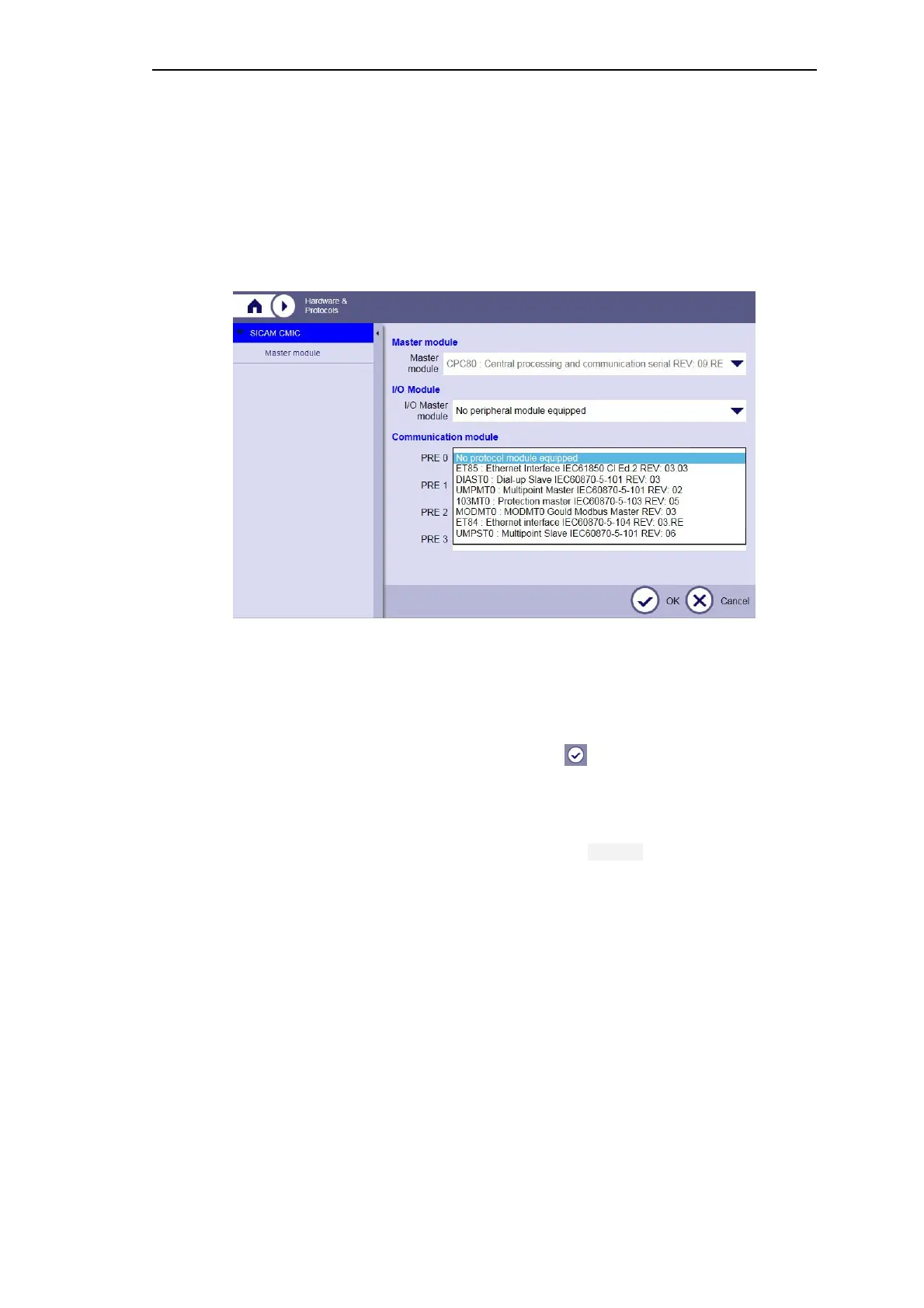

• In order to configure a protocol element, select a protocol for the respective protocol ele-
ment number.
After selection of the protocol(s) and acceptance with a restart of the target device is re-
quired.
After the startup the configured protocol elements appear in the directory tree under
SICAM CMIC | Master module | PRE <0…3>: <protocol name>.
The parameterization takes place for each protocol in the settings page. The parameters of
newly identified protocols are assigned with their default values.
You find more detailed information on the protocols in the manual SICAM RTUs
Ÿ
Ax 1703
Common Functions Protocol Elements.
