Interfaces and Circuitry
SICAM RTUs, User Manual SICAM CMIC 49
DC8-001-2.09, Edition 08.2016
X11
X12
X13
X14
X21
X
3
1
X22
X
3
2
X23
X
3
3
X24
Power Supply
PS-8630
X12 to X13
DO-8203
X21 to X24

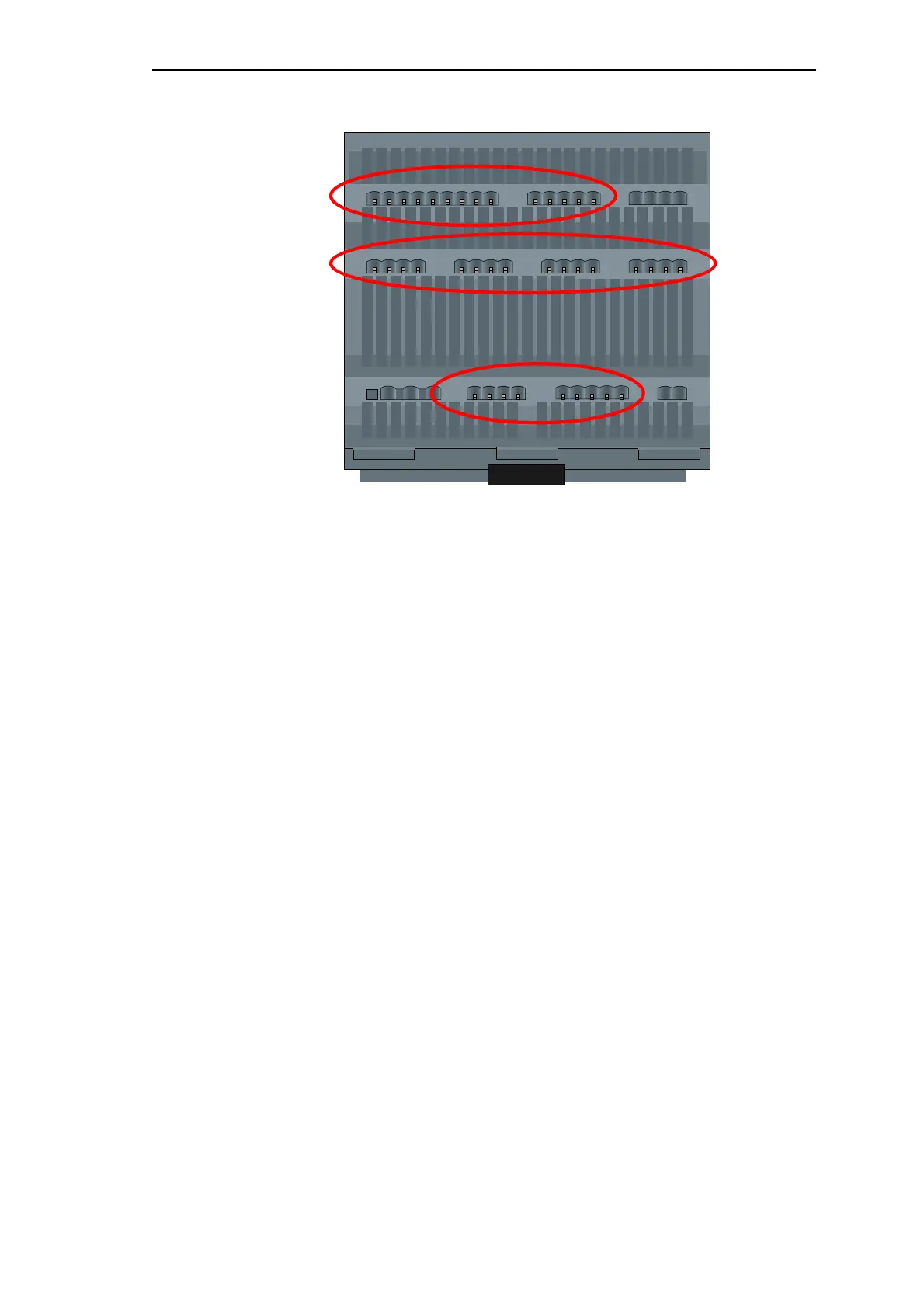

Interfaces on
the bottom of
the housing
DI-8100
X31 to X32
