Engineering via SICAM WEB
SICAM RTUs, User Manual SICAM CMIC 153
DC8-001-2.09, Edition 08.2016

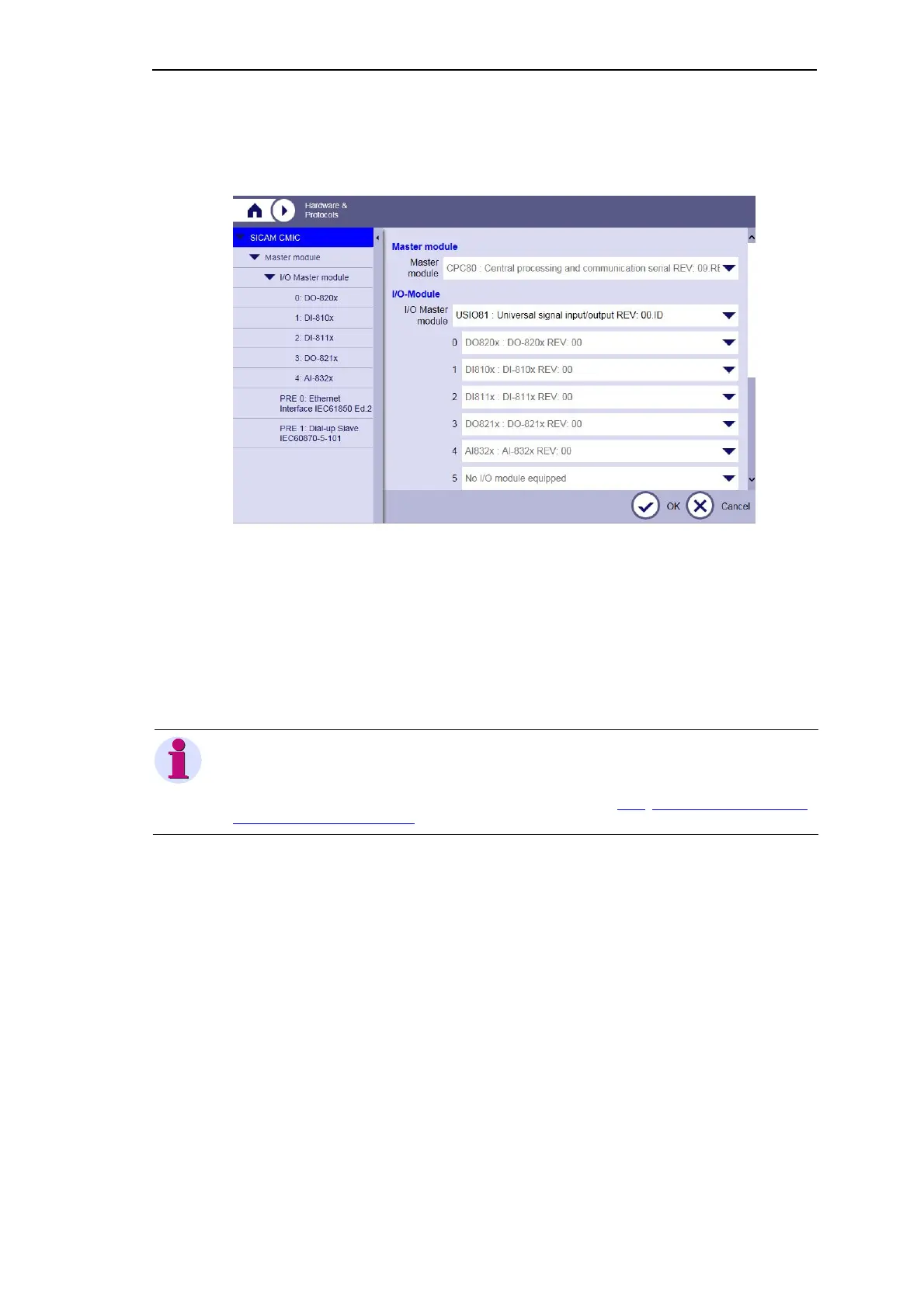

After the startup the configured I/O modules appear in the directory tree under
SICAM CMIC | Master module | I/O Master module | <0…7>: <I/O module name>.
You find more detailed information on the I/O modules in the manuals
SICAM RTUs
Ÿ
SICAM I/O Modules and SICAM RTUs
Ÿ
SICAM TM I/O Modules.
Please pay attention to the configuration notes and rules for the equipment of I/O modules in
the SICAM RTUs
Ÿ
SICAM CMIC System Description, chapter “Overview”, section “Architec-
ture” | “Peripheral Element” | “I/O Modules”.
Note
The detected configuration is checked with each additional startup against the actually connected
I/O modules. With deviation SICAM CMIC notifies an error.
If the once detected configuration is changed, pay attention to section 6.4.3, Adapt new Mechanical Con-
figuration in the Parameterization.
