Engineering via SICAM WEB
230 SICAM RTUs, User Manual SICAM CMIC
DC8-001-2.09, Edition 08.2016

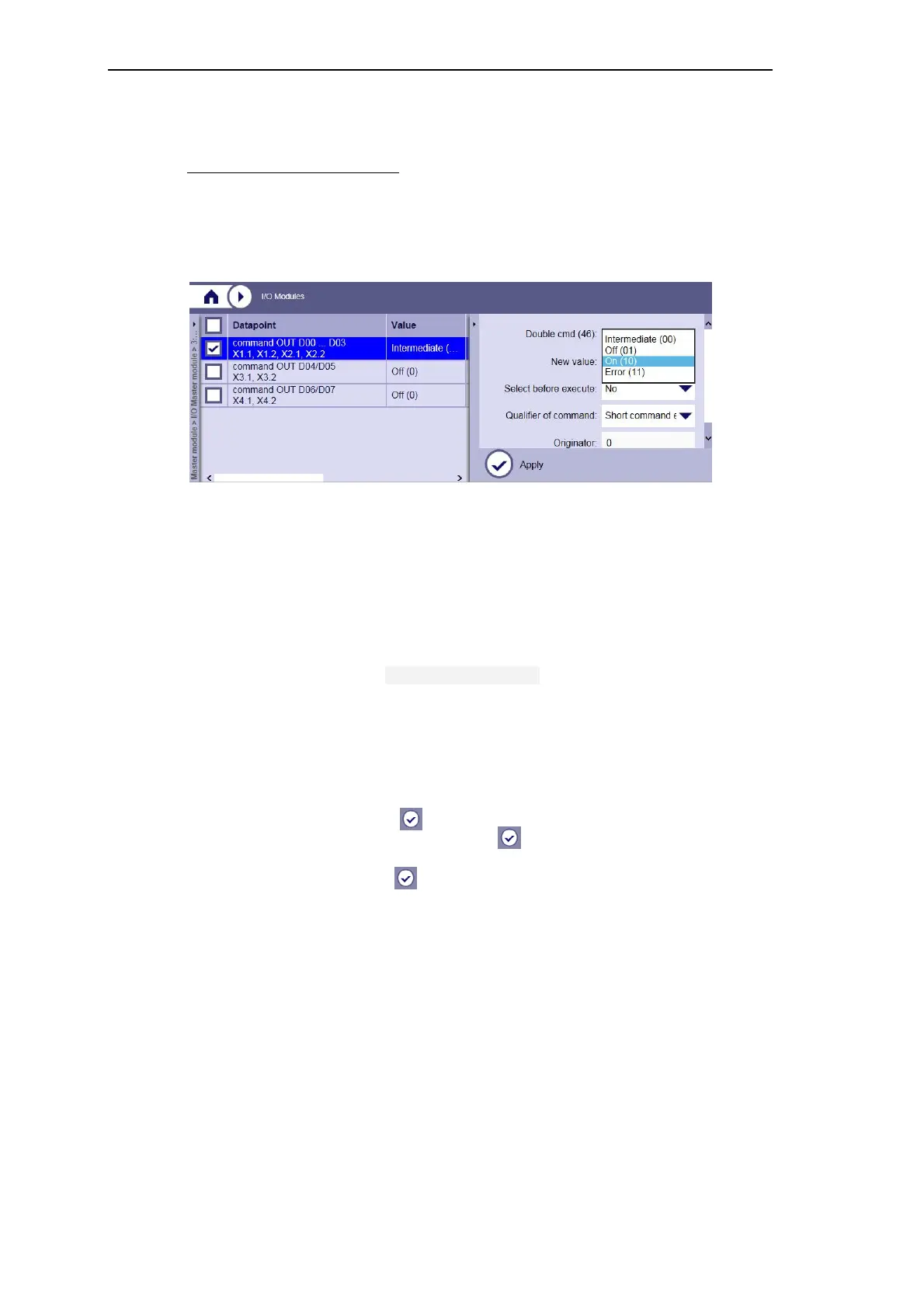

This is how to change a process value:
Example: double command output
• In the directory tree, mark the corresponding DO module
• Click on the side bar left beside the status area, if you want to extend it
• Mark the row with the desired datapoint
Control area:
• Select a “New value”
The data format corresponds to the setting of the data point on the I/O module (signal list).
• Select the “Qualifier of command“ option
With selection undefined the settings of the respective data point on the I/O module (out-
put_t_0, output_t_1) are used for the duration for the command output.
With selection Short command execution time or Long command execution time the
corresponding values of the AU common settings are used for the duration for the
command output.
With selection Persistant command a continuous command is output (only with pro-
cessing type DO_SX and DO_DX).
• Enter the “Originator“
This value defines the source address for the respective command (0…255).
• Select the “Select before execute“ option
With selection Yes and button you activate the select command. You activate the ex-
ecute command, when you click on the button once more within the adjusted time
(select_execute_t).
With selection No and button you activate the execute command directly.
The new process value is transferred to the target device and displayed in the column Value.
You find further details in the manual SICAM RTUs Common Functions Peripheral Elements
According to IEC 60870-5-101/104, chapter "Pulse Commands", section "Functions Inde-
pendent of the Hardware of the Systemelement", sections "Select and Execute Command",
"Set Control Location", "Command Output Time".
