Engineering via SICAM WEB
270 SICAM RTUs, User Manual SICAM CMIC
DC8-001-2.09, Edition 08.2016
The target device starts the loading procedure. The duration of the loading procedure de-
pends on the file size and the used communication connection.
The file is now checked upon validity. If the data is valid, it is written on the SD card of the tar-
get device. Otherwise, an error information is displayed.

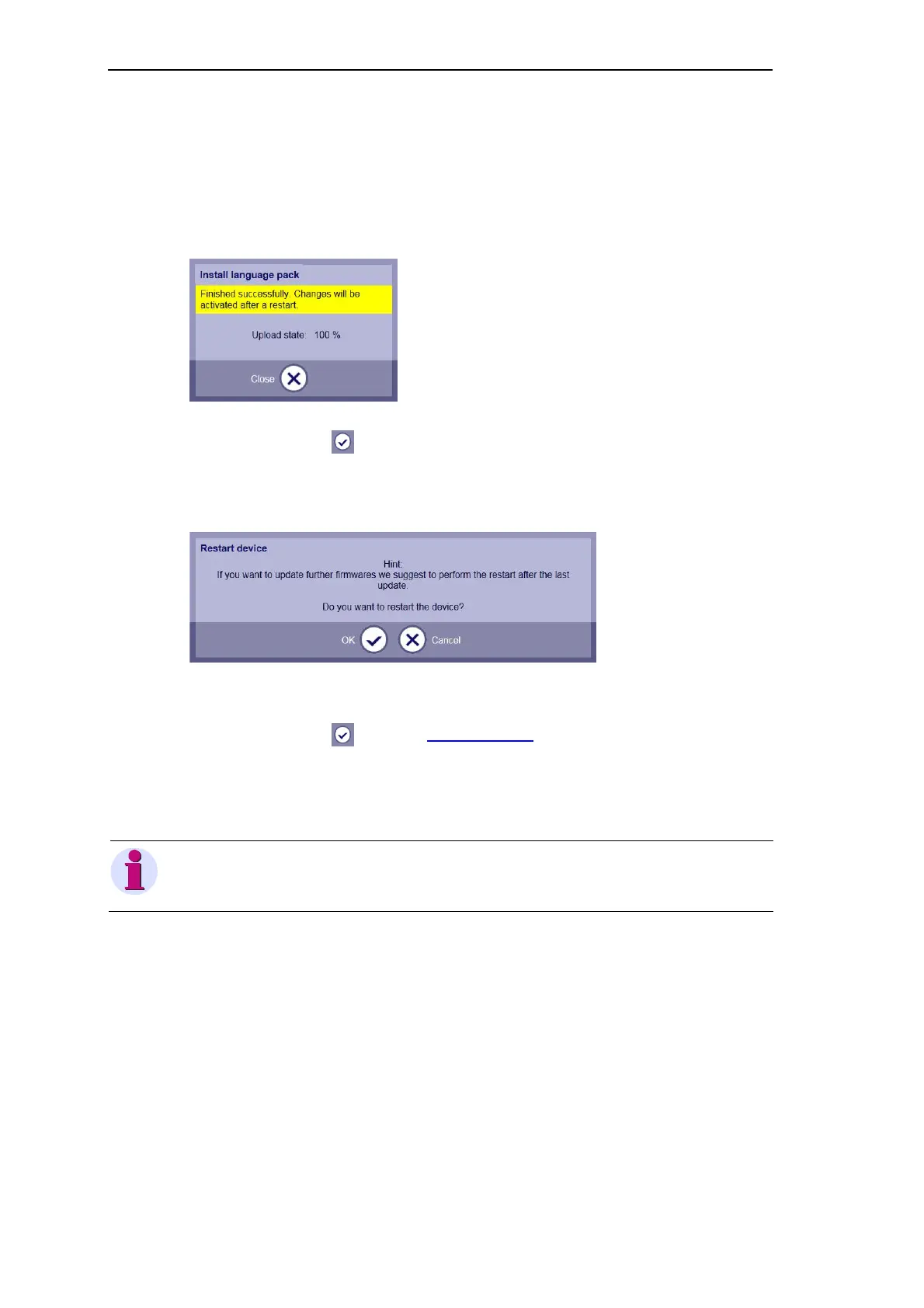

After successful upload the following dialog appears:
• Click on the button
Subsequently the following dialog appears:
You have the possibility to abort the restart of the device and to update further firmware.
• Click on the button in order to restart the device
The newly installed language is available in the dropdown list of the Logon dialog.
Note
Apart from the standard languages English and German, presently no language packages are defined.
