Submenu Submenu Function Status Meaning
2.2
Protocols
2.2.1
PRE0:
<Firmware>
˜
(All) connection(s) estab-
lished
2.2.2
PRE1:
<Firmware>
˜! Not all connections estab-
lished
2.2.3
PRE2:
<Firmware>
™! No connection established
™
Connection not established
2.2.4
PRE3:
<Firmware>
™? No detailed information avail-
able for this protocol
X? No interface is assigned to
this protocol

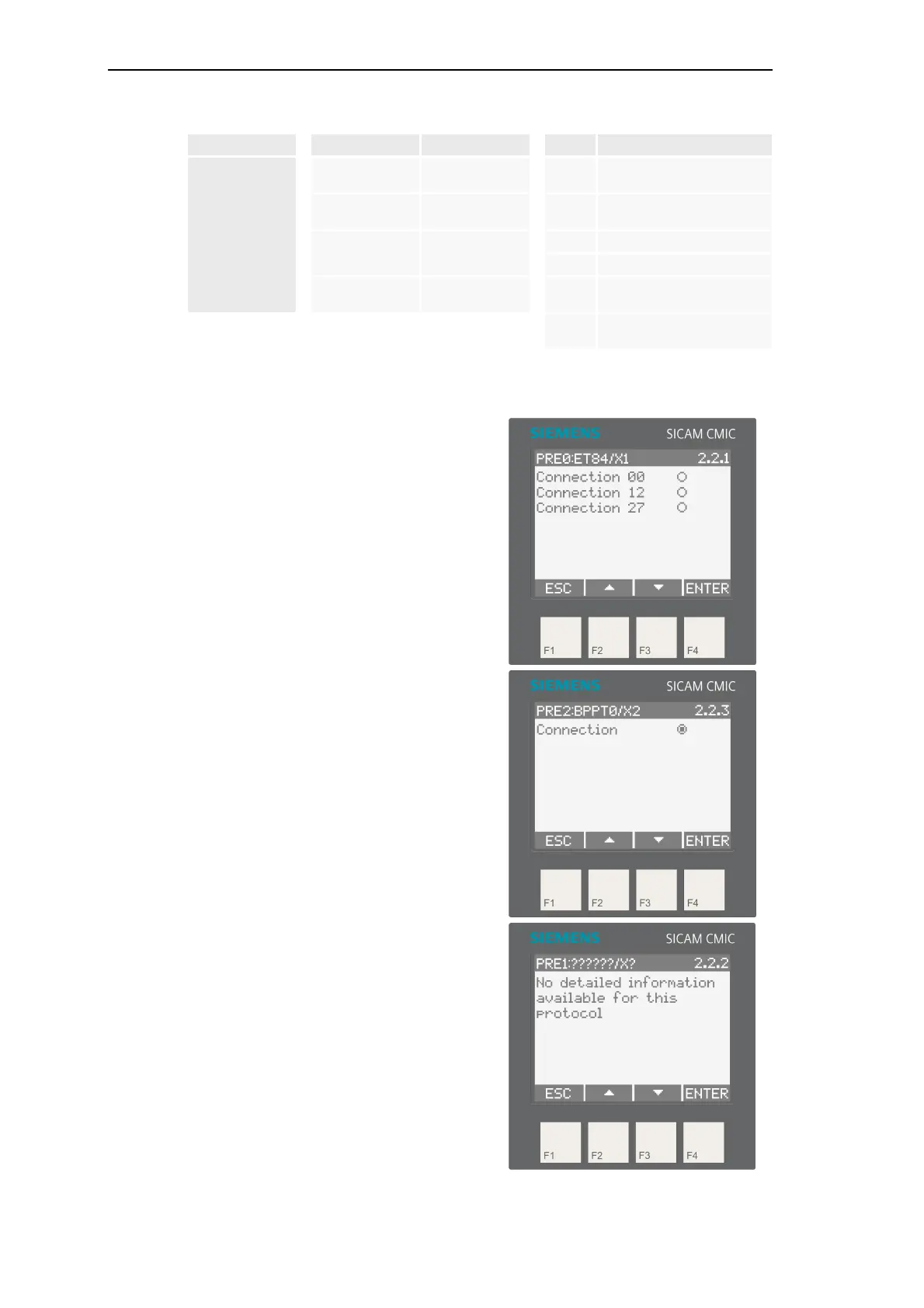

Examples:
This example is valid for LAN/multi-point traffic-
master and dial-up traffic-master.
• Only parametrized connections are
displayed.
• If there are more connections available as
can be shown on one page, these will be
displayed on the next page.
Meaning of the status symbols:
˜ Connection is established
™ Connection is not established
This example is valid for point-to-point or multi-
point traffic-slave.
Meaning of the status symbols:
˜ Connection is established
™ Connection is not established
This information is displayed if there are no
details available for this protocol.
To Next Page
