Siemens SICAM CMIC User Manual

Service
SICAM RTUs, User Manual SICAM CMIC 283
DC8-001-2.09, Edition 08.2016

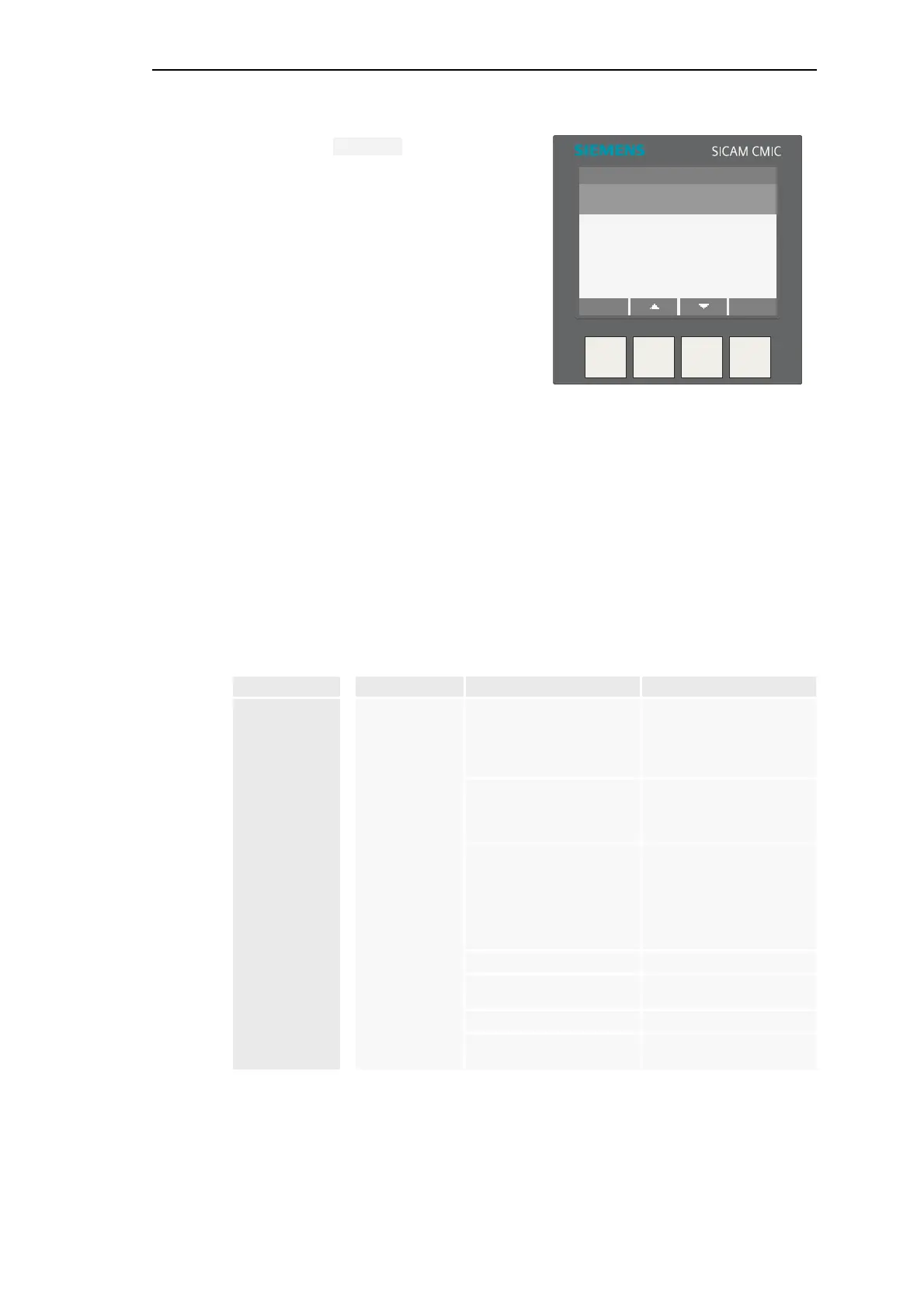

In the submenu All Events all process events
and diagnosis events are displayed in chrono-
logical order (most recent entry first).
In the header you can see which entry you have
selected and the amount of all entries.
After opening the list, the most recent entry is
automatically selected.
You can navigate through the entire list via function keys <▼> and <▲>
In the selected entry you can see detailed information on the selected entry (date,
timestamp, etc.).
Using the function key <TOP>, you go to the beginning of the list (and select the first entry).
The oscillating function key <TOP> shows that a new event is active.
• Press the oscillating function key <TOP> to refresh the entire list
The function key <TOP> will not be oscillating if you did select the first entry and a new
event occurs. In this case, however, the list will be refreshed.
Submenu Submenu Display/settings Meaning/range
3.1
Events
3.1.1
All Events
Event name
• Freely parameterizable text
(applies for process events)
• Always beginning with “Dia”
(applies for diagnosis
events)
Status
• Freely parameterizable text
(applies for process events)
• Coming, going (applies for
diagnosis events)
Quality bit Applies for process events
(TI 30 and TI 31) only:
?: not topical
!: invalid
#: blocked
$: substituted
Date Date of the selected event
Time stamp Timestamp of the selected
event
Time quality bit !: invalid (optional)
Indication of daylight-saving
time
S: daylight-saving time (op-
tional)
F4F3F2F1
24.02.16 08:20:53.460 !S
All Events 0001/0096
Dia Warnin
g
comin
g
ESC TOP
Dia Restart
g
oin
g
Dia Restart comin
g
Dia Warnin
g g
oin
g
Dia Warnin
g
comin
g
Dia Restart
g
oin
g
