565Global Effect Operations
Chapter 11 DME Operations
Setting the combiners
The setting menu differs according to the combiner usage status.
This section shows the cases of “Ch1+Ch2+Ch3” and “Ch1+Ch2, Ch3+Ch4”
as examples.
For details of operating procedures when using an SDI interface, see
“Procedure for combine operation when using an SDI interface” (page 566).
1 In the Global Effect >Ch1- Ch4 menu, select HF1 ‘Combiner Priority.’
The Combiner Priority menu appears.
2 If [Mix], [Auto] or [Depth] is on, turn it off.
3 Set the overlap priority for “Ch1+Ch2+Ch3” or “Ch1+Ch2, Ch3+Ch4” as
follows.
For case “Ch1+Ch2+Ch3”
Under <Priority1> to <Priority3>, press [Ch1], [Ch2], and [Ch3],
respectively, to set the overlap priority.
Priority1: Select the channel with the highest priority.
Priority2: Select the channel with the second highest priority.
Priority3: Select the channel with the lowest priority.
For case “Ch1+Ch2, Ch3+Ch4”
Under <Combiner 1 Priority 1> and <Combiner 1 Priority 2>, press [Ch1]
and [Ch2] respectively, and under <Combiner 2 Priority 1> and
<Combiner 2 Priority 2>, press [Ch4] and [Ch3] respectively, to set the
respective priorities for overlaying the images.

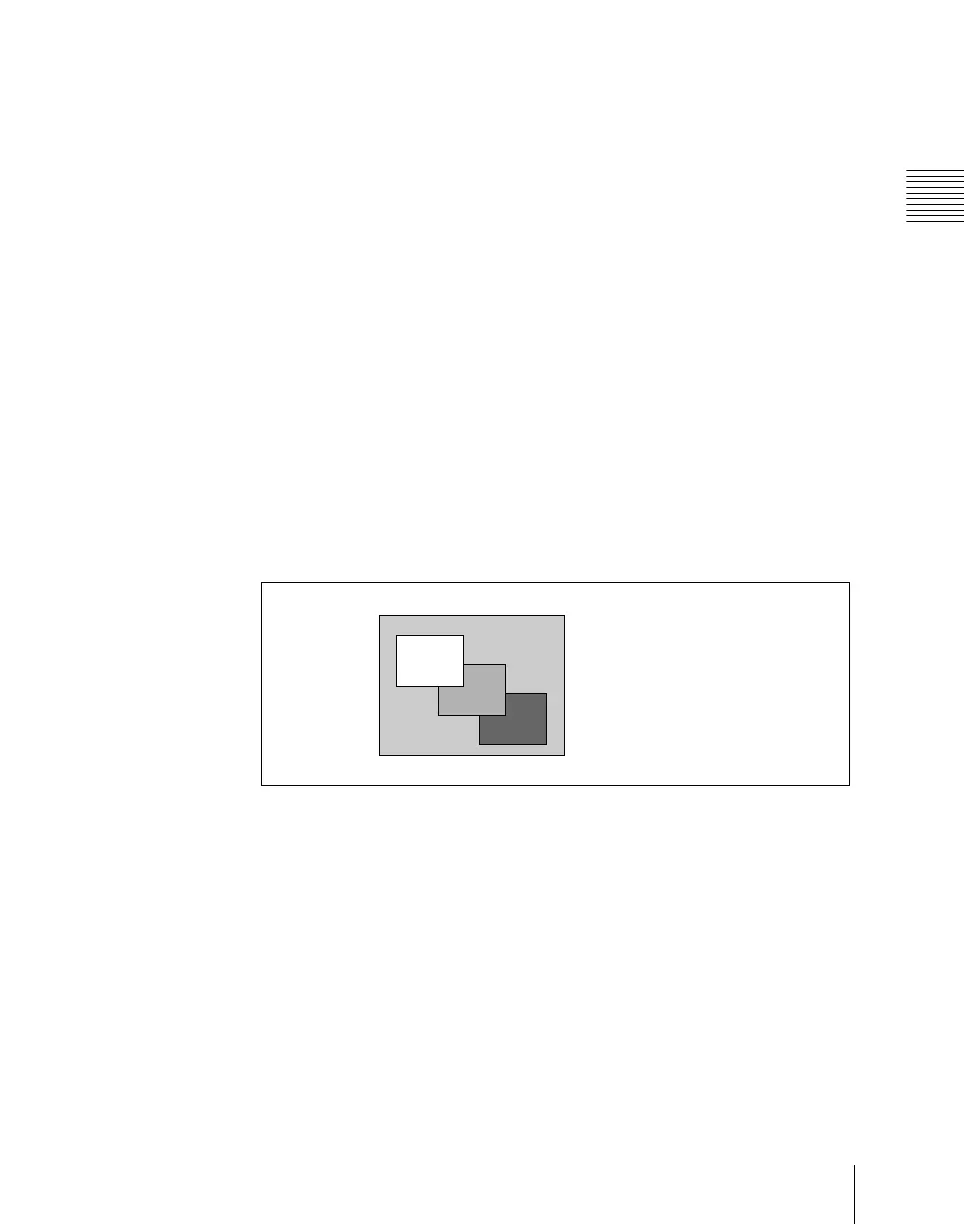

Priority1: Ch1
Priority2: Ch2
Priority3: Ch3
Ch1
Ch2
Ch3
