Operation 5
Working with loads
NOTE
The method of operating the lif
ting system
depends on the operating devic
es included in
the truck’s equipment.
– Ensure that the truck has been in operation
for a period of time before carrying out the
load measurement.
– Set lift mast to vertical.
– Raise the fork to a height of
300–800 mm.
– Ensure that the load is at rest.
6210_003-072_V2
2
1

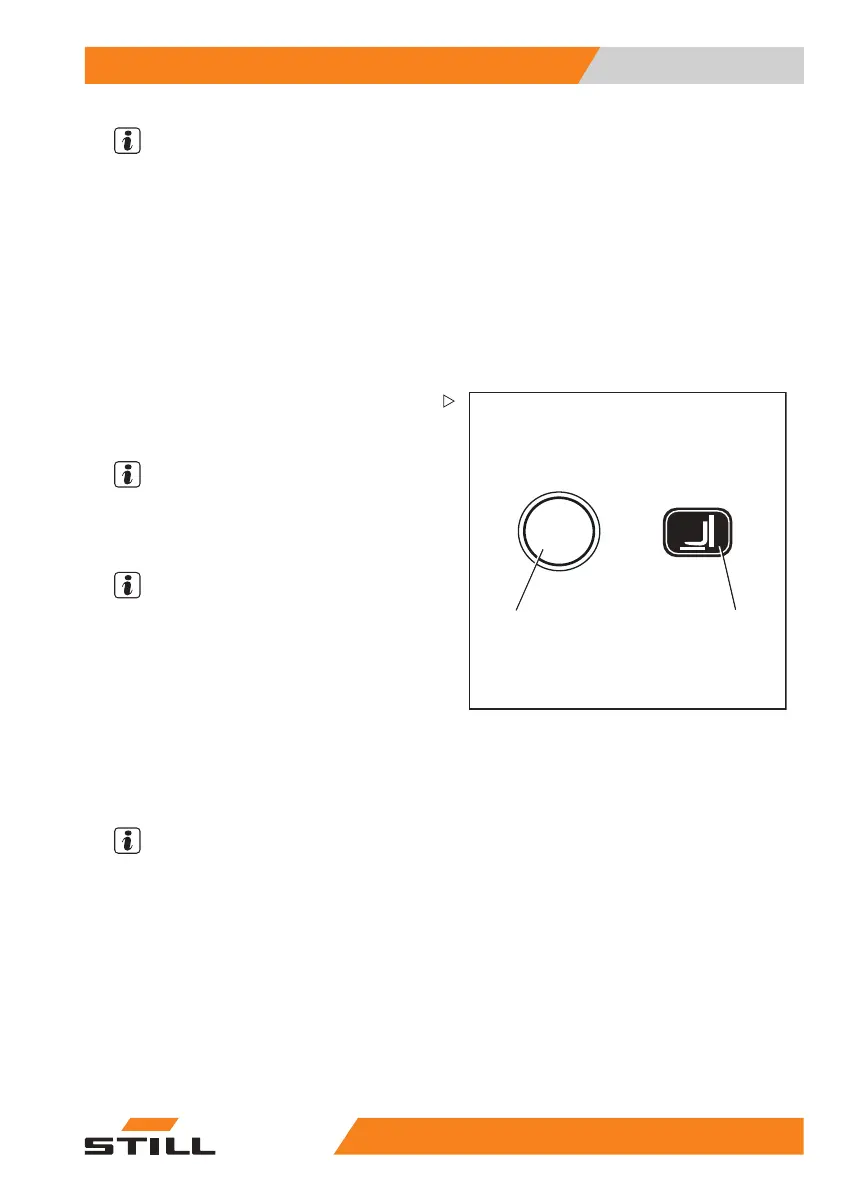

– Press button (1) for "load measurement";
the "load measurement" symbol (2) ap-
pears on the display highlighted in black.
NOTE
If the truck is equipped with mini-levers or
fingertip operation, the "F1" button can also be
pressed as an alternative.
NOTE
During the following process, the fork carriage
must be lowered slightly and then stopped
abruptly. While doing so, the fork must
not touch the ground, otherwise the load
measurement will not be accurate. To stop
the lowering procedure quickly, release the
operating device for lowering so that it jumps
into the zero position.
– Lower the fork carr
iage slightly and release
the operating devi
ce.
NOTE
When stopping the lowering process the
load must be cushioned in order to create a
measurable impulse.
