5.1 A: Initialization
YASKAWA ELECTRIC SIEP C710616 27G YASKAWA AC Drive A1000 Technical Manual 145

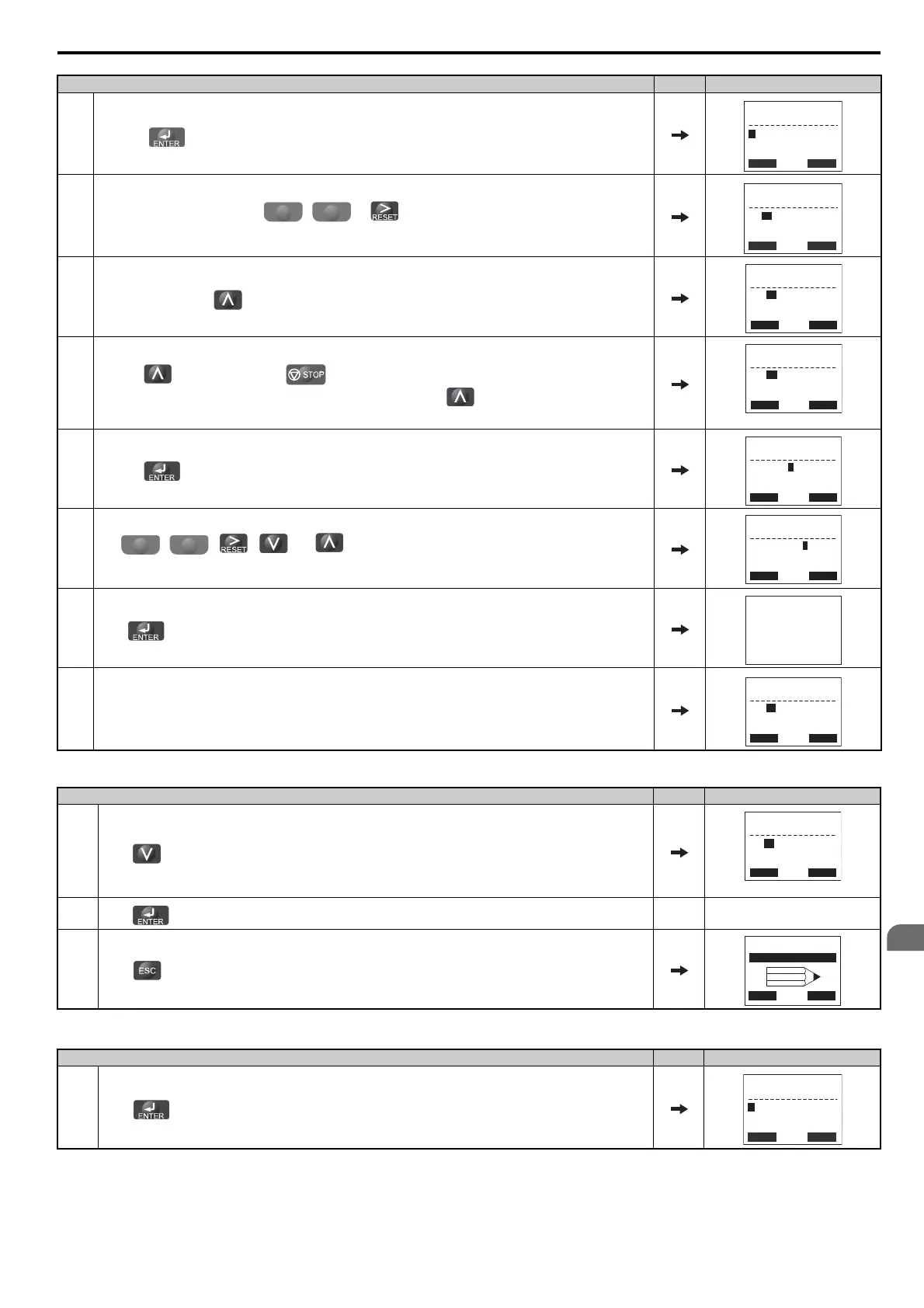

Table 5.3 Check to see if A1-02 is locked (continuing from step 10 above)
Table 5.4 Enter the Password to Unlock Parameters (continuing from step 3 above)
3.
Press the key to enter the parameter menu tree.
4.
Select the flashing digits by pressing , or .
5.
Select A1-04 by pressing .
6.
Press the key while holding down at the same time. A1-05 will appear.
No
te: Because A1-05 is hidden, it will not be displayed by simply pressing the key.
“05” flashes
7.
Press the key.
8.
Use , , , and to enter the password.
9.
Press to save what was
entered.
10. The display automatically returns to the display shown in step 5.
Step Display/Result
1.
Press to display A1-02.
“02” flashes
2.
Press to make sure that the set
ting values cannot be selected.
– –
3.
Press to return to the first display.
Step Display/Result
1.
Press to enter the parameter setup display.
Step Display/Result
←→
-PRMSET-
Initialization
Select Language
PRG
FWD
A1-00=0
←→
-PRMSET-
Select Language
English
PRG
FWD
A1-00=0 ∗0∗
←→
-PRMSET-
A1- 04 = 0
(0~9999)
“0”
PRG
Enter Password
FWD
←→
-PRMSET-
A1- 05 = 04
(0~9999)
“0”
PRG
Select Password
FWD
←→
-PRMSET-
A1- 05 = 0000
(0~9999)
“0”
PRG
Select Password
FWD
←→
-PRMSET-
A1-05= 1234
(0~9999)
“0”
PRG
Select Password
FWD
Entry Accepted
←→
-PRMSET-
A1- 05 = 1234
(0~9999)
“0”
PRG
Select Password
FWD
←→
-PRMSET- PRG
Control Method
FWD
A1-02= 2
∗2∗
Open Loop Vector
HELP
- MODE - PRG
DATA
Programming
FWD
←→
-PRMSET-
Initialization
Select Language
PRG
FWD
A1-00=0
