YASKAWA A1000

1.5 Component Names
40 YASKAWA ELECTRIC SIEP C710616 27G YASKAWA AC Drive A1000 Technical Manual
 Three-Phase AC400 V CIMR-A4A0515A, 0675A
Figure 1.7

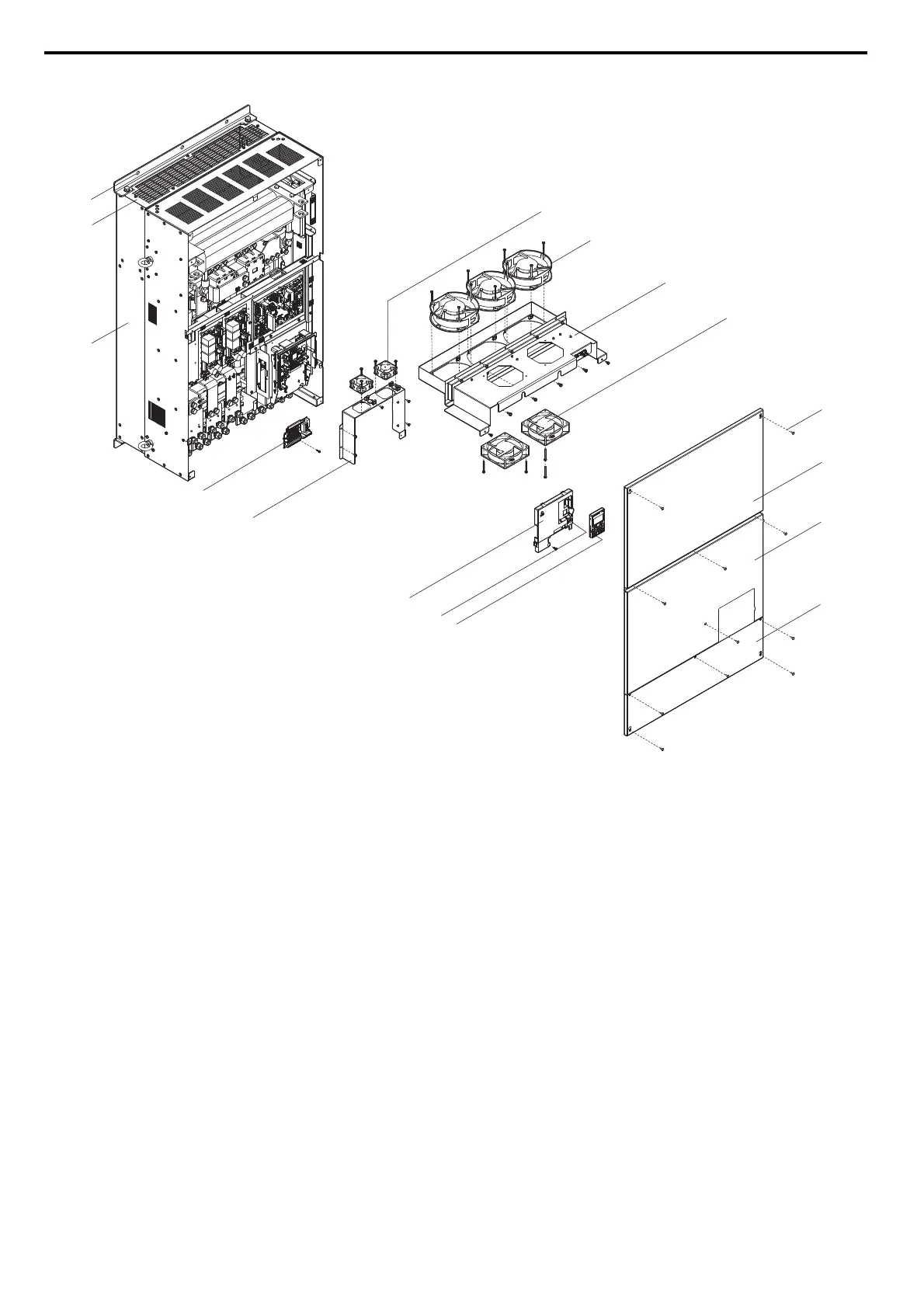

Figure 1.7 Exploded view of IP00 Enclosure Type Components (CIMR-A4A0515A, 0675A)
A – Circuitboard cooling fan I – Digital operator
B – Cooling fan J – USB port (type-B)
C – Fan unit case K – Front cover
D – Circulation fan L – Circuitboard cooling fan unit case
E – Front cover screw M – Terminal board
F – Drive cover 1 N – Heatsink
G – Drive cover 2 O – Fan guard
H – Terminal cover P – Mounting hole
P
N
L
C
B
A
O
D
K
J
I
F
E
G
H
M
