YASKAWA A1000 Technical Manual

2.2 Mechanical Installation
YASKAWA ELECTRIC SIEP C710616 27G YASKAWA AC Drive A1000 Technical Manual 55
Mechanical Installation
2
Table 2.6 Dimensions for IP00 Enclosure: 200 V Class
Table 2.7 Dimensions for IP00 Enclosure: 400 V Class
Drive Model
CIMR-A2A
Figure
Dimensions (mm)
Weight
(kg)
W H D W1 W2 H1 H2 D1 t1 t2 d
0110
1
250 400 258 195 10 385 7.5 100 2.3 2.3 M6
21
0138 275 450 258 220 10 435 7.5 100 2.3 2.3 M6 25
0169 325 550 283 260 10 535 7.5 110 2.3 2.3 M6 37
0211 325 550 283 260 10 535 7.5 110 2.3 2.3 M6 38
0250 450 705 330 325 10 680 12.5 130 3.2 3.2 M10 76
0312 450 705 330 325 10 680 12.5 130 3.2 3.2 M10 80
0360 500 800 350 370 10 773 13 130 4.5 4.5 M12 98
0415 500 800 350 370 10 773 13 130 4.5 4.5 M12 99
Drive Model
CIMR-A4A
Figure
Dimensions (mm)
Weight
(kg)
W H D W1 W2 W3 W4 H1 H2 D1 t1 t2 d
0058
1
250 400 258 195 10 – –– 385 7.5 100 2.3 2.3 M6 21
0072 275 450 258 220 10 – – 435 7.5 100 2.3 2.3 M6 25
0088 325 510 258 260 10 – – 495 7.5 105 2.3 3.2 M6 36
0103 325 510 258 260 10 – – 495 7.5 105 2.3 3.2 M6 36
0139 325 550 283 260 10 – – 535 7.5 110 2.3 2.3 M6 41
0165 325 550 283 260 10 – – 535 7.5 110 2.3 2.3 M6 42
0208 450 705 330 325 10 – – 680 12.5 130 3.2 3.2 M10 79
0250 500 800 350 370 10 – – 773 13 130 4.5 4.5 M12 96
0296 500 800 350 370 10 – – 773 13 130 4.5 4.5 M12 102
0362 500 800 350 370 10 – – 773 13 130 4.5 4.5 M12 107
0414 2 500 950 370 370 7.7 – – 923 13 135 4.5 4.5 M12 125
0515
3
670 1140 370 440 6 220 – 1110 15 150 4.5 4.5 M12 216
0675 670 1140 370 440 6 220 – 1110 15 150 4.5 4.5 M12 221
0930
4
1250 1380 370 1110 6 330 440 1345 15 150 4.5 4.5 M12 545
1200 1250 1380 370 1110 6 330 440 1345 15 150 4.5 4.5 M12 555

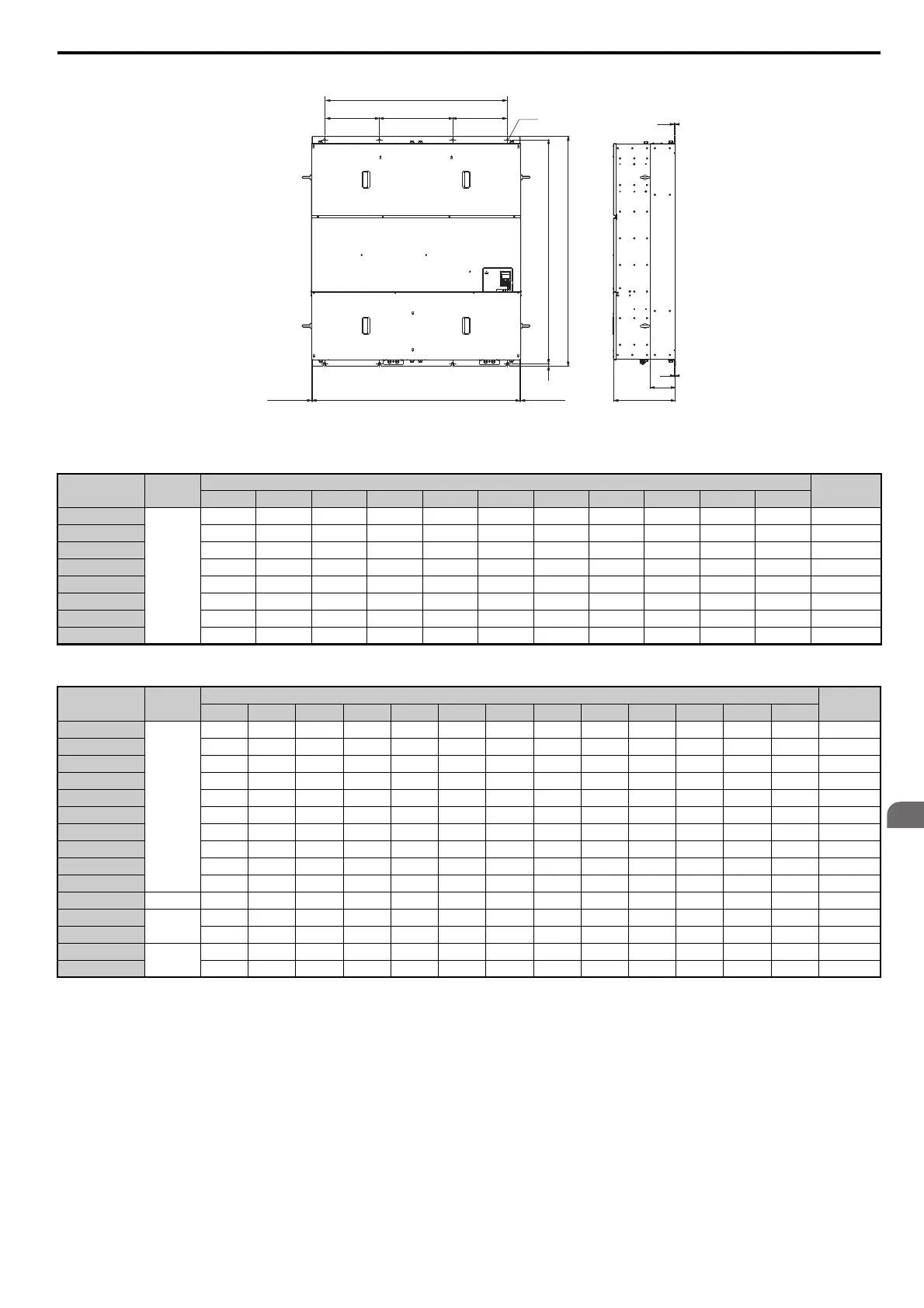

Figure 4
W3 W3
8-d
W4
W1
H1
W
H2
D
H
D1
t2
t1
Max W2Max W2
