YASKAWA A1000 Technical Manual

2.2 Mechanical Installation
54 YASKAWA ELECTRIC SIEP C710616 27G YASKAWA AC Drive A1000 Technical Manual

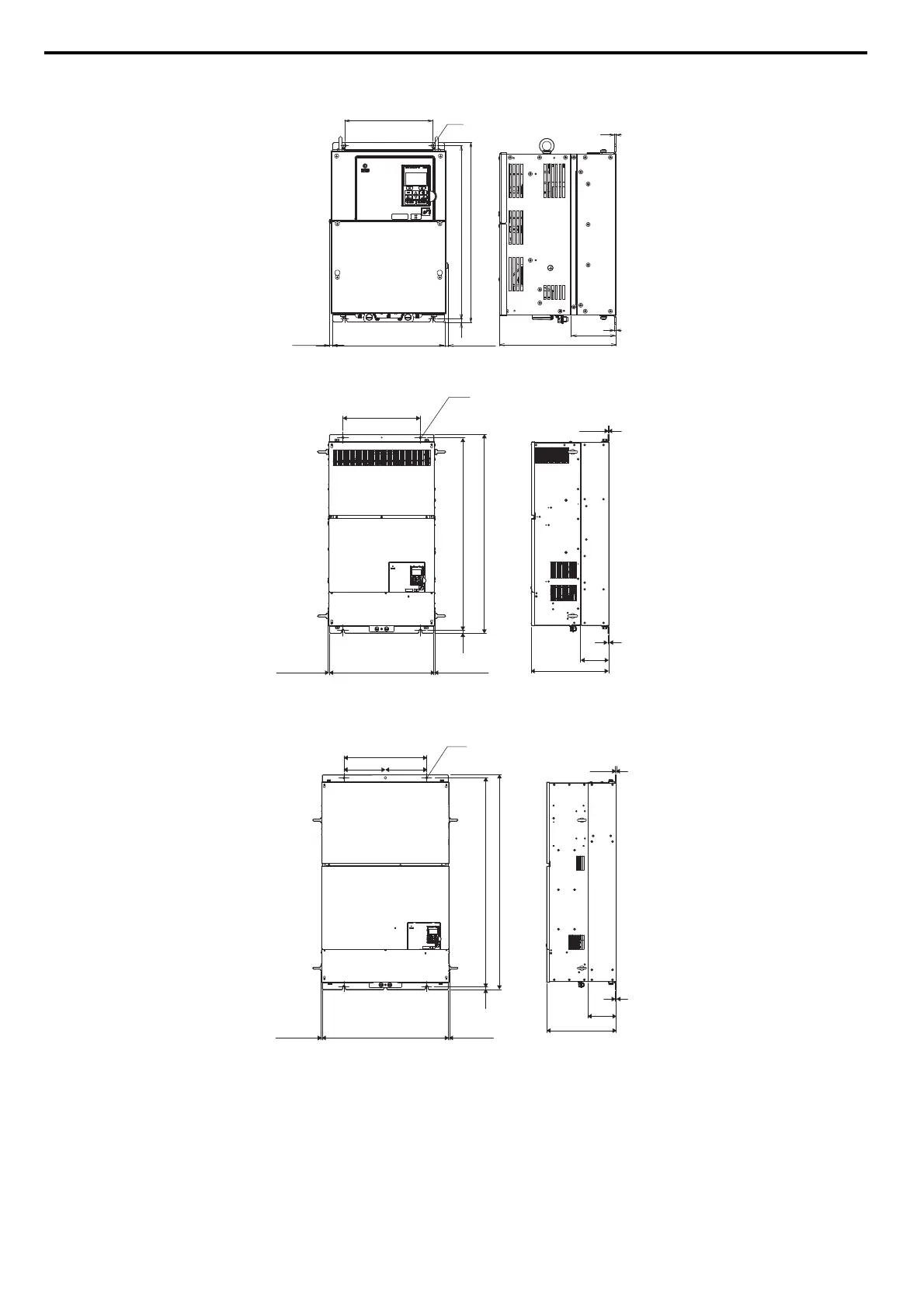

 IP00 Enclosure Drives
W1
4-d
H1
H
H2
Max W2
W
t2
t1
D1
D
Figure 1
Max W2
D1
D
t2
H1
H2
H
4-d
W1
W
Max W2Max W2
t1
Figure 2
D1
D
W
H1
H2
H
Max W2Max W2
4-d
t2
Figure 3
t1
W1
W3 W3

YASKAWA A1000 Specifications

General

Type	AC Drive
Series	A1000
Input Voltage	200-240V, 380-480V
Frequency Range	0-400 Hz
Horsepower Range	0.5 to 1000 HP
Power Range	0.4 to 630 kW
Control Method	V/f Control
Overload Capacity	150% for 60 seconds
Braking	Dynamic Braking
Communication	Modbus
Safety	Safe Torque Off (STO)
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheat
Operating Temperature	-10 to +50°C
Storage Temperature	-20 to 60°C
Humidity	5 to 95% RH (non-condensing)
Enclosure	IP20
