YASKAWA A1000 Technical Manual

2.2 Mechanical Installation
YASKAWA ELECTRIC SIEP C710616 27G YASKAWA AC Drive A1000 Technical Manual 53
Mechanical Installation
2
 IP20/NEMA 1, UL Type 1 Enclosure Drives
Note: IP20/NEMA 1, UL Type 1 enclosure drives are equipped with a top cover. Removing this cover voids NEMA 1, UL Type 1
protection but still keeps IP20 conformity.

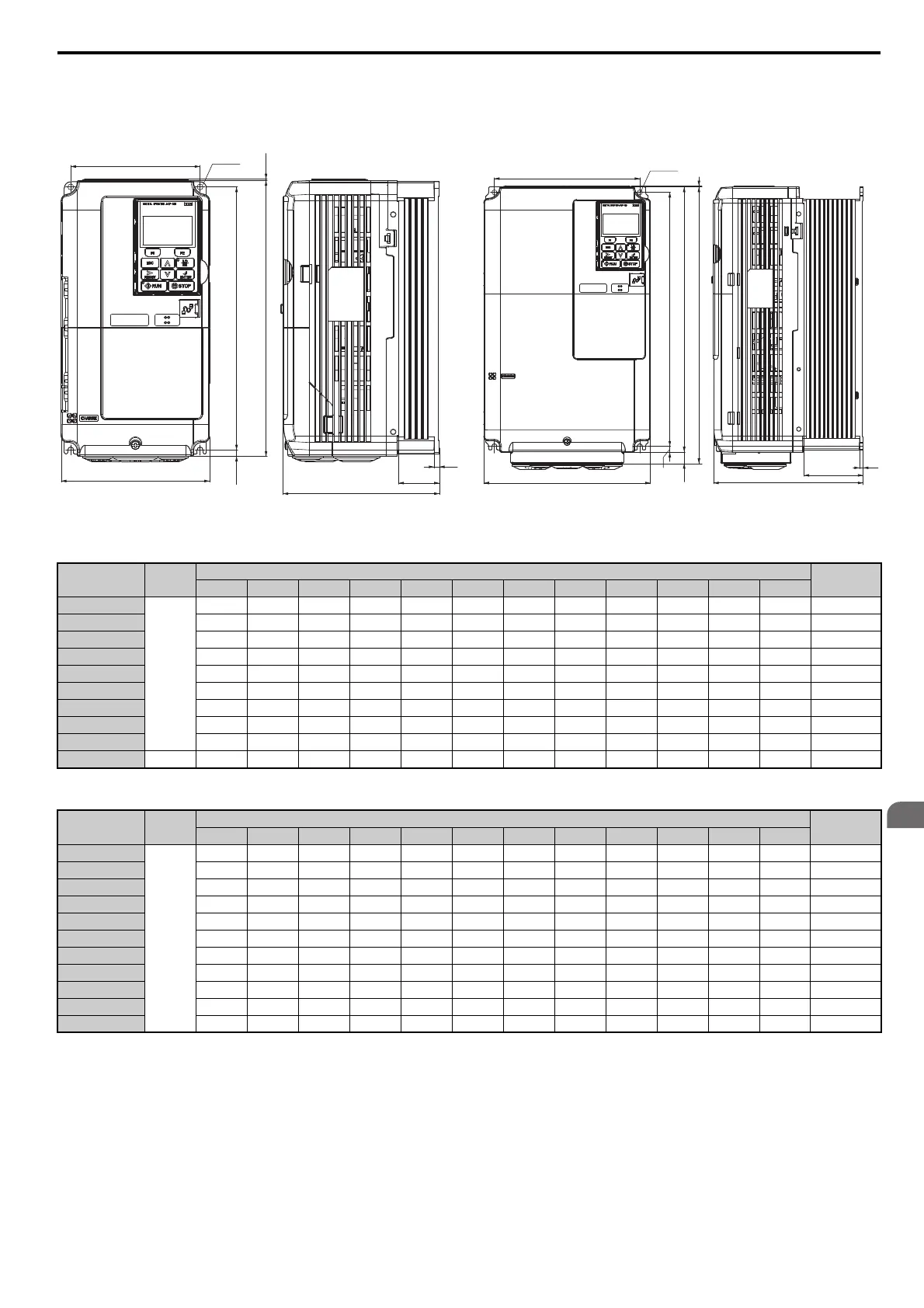

Table 2.4 Dimensions for IP20/NEMA 1, UL Type 1 Enclosure: 200 V Class
Table 2.5 Dimensions for IP20/NEMA 1, UL Type 1 Enclosure: 400 V Class
Drive Model
CIMR-A2A
Figure
Dimensions (mm)
Weight
(kg)
W H D W1 H0 H1 H2 H3 D1 t1 t2 d
0004
1
140 260 147 122 – 248 6 – 38 5 – M5
3.1
0006 140 260 147 122 – 248 6 – 38 5 – M5 3.1
0010 140 260 147 122 – 248 6 – 38 5 – M5 3.2
0012 140 260 147 122 – 248 6 – 38 5 – M5 3.2
0021 140 260 164 122 – 248 6 – 55 5 – M5 3.5
0030 140 260 167 122 – 248 6 – 55 5 – M5 4.0
0040 140 260 167 122 – 248 6 – 55 5 – M5 4.0
0056 180 300 187 160 – 284 8 – 75 5 – M5 5.6
0069 220 350 197 192 – 335 8 – 78 5 – M6 8.7
0081 2 220 365 197 192 350 335 8 15 78 5 – M6 9.7
Drive Model
CIMR-A4A
Figure
Dimensions (mm)
Weight
(kg)
W H D W1 H0 H1 H2 H3 D1 t1 t2 d
0002
1
140 260 147 122 – 248 6 – 38 5 – M5
3.2
0004 140 260 147 122 – 248 6 – 38 5 – M5 3.2
0005 140 260 147 122 – 248 6 – 38 5 – M5 3.2
0007 140 260 164 122 – 248 6 – 55 5 – M5 3.4
0009 140 260 164 122 – 248 6 – 55 5 – M5 3.5
0011 140 260 164 122 – 248 6 – 55 5 – M5 3.5
0018 140 260 167 122 – 248 6 – 55 5 – M5 3.9
0023 140 260 167 122 – 248 6 – 55 5 – M5 3.9
0031 180 300 167 160 – 284 8 – 55 5 – M5 5.4
0038 180 300 187 160 – 284 8 – 75 5 – M5 5.7
0044 220 350 197 192 – 335 8 – 78 5 – M6 8.3
W1
1.5
H
H1
H2
W
D
D1
t1
H2
W1
1.5
H
H0 H1
W
D1
D
t1
H3
Figure 1 Figure 2
4-d
4-d

YASKAWA A1000 Specifications

General

Type	AC Drive
Series	A1000
Input Voltage	200-240V, 380-480V
Frequency Range	0-400 Hz
Horsepower Range	0.5 to 1000 HP
Power Range	0.4 to 630 kW
Control Method	V/f Control
Overload Capacity	150% for 60 seconds
Braking	Dynamic Braking
Communication	Modbus
Safety	Safe Torque Off (STO)
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheat
Operating Temperature	-10 to +50°C
Storage Temperature	-20 to 60°C
Humidity	5 to 95% RH (non-condensing)
Enclosure	IP20
