YASKAWA DX100 Instructions

13 Description of Units and Circuit Boards
DX100 13.7 Machine Safety Unit (JZNC-YSU01-1E)
13-19
13.7.2 Connection for Servo-ON Enable Input (ONEN1 and ONEN2)
Connect the ONEN signal lines to enable the function to turn ON or OFF
the servo power supply of an individual servo when a robotic system is
divided into areas. Because these signals are not used for units of
standard specifications, a jumper cable is connected as shown in the
following figure.
For safety reasons, dual circuits are used for the Servo-ON Enable input
signals. Connect the signal so that both input signals are turned ON or
OFF at the same time. If only one signal is turned ON, an alarm occurs.
Refer to “8 Servo Power Supply Individual Control Function” of
“Independent/Coordinated Function Instructions Manual” for the usage of
the Servo-ON Enable signals.
For the connection of CN211 Connector, refer to chapter 13.8 “WAGO
Connector” at page 13-21

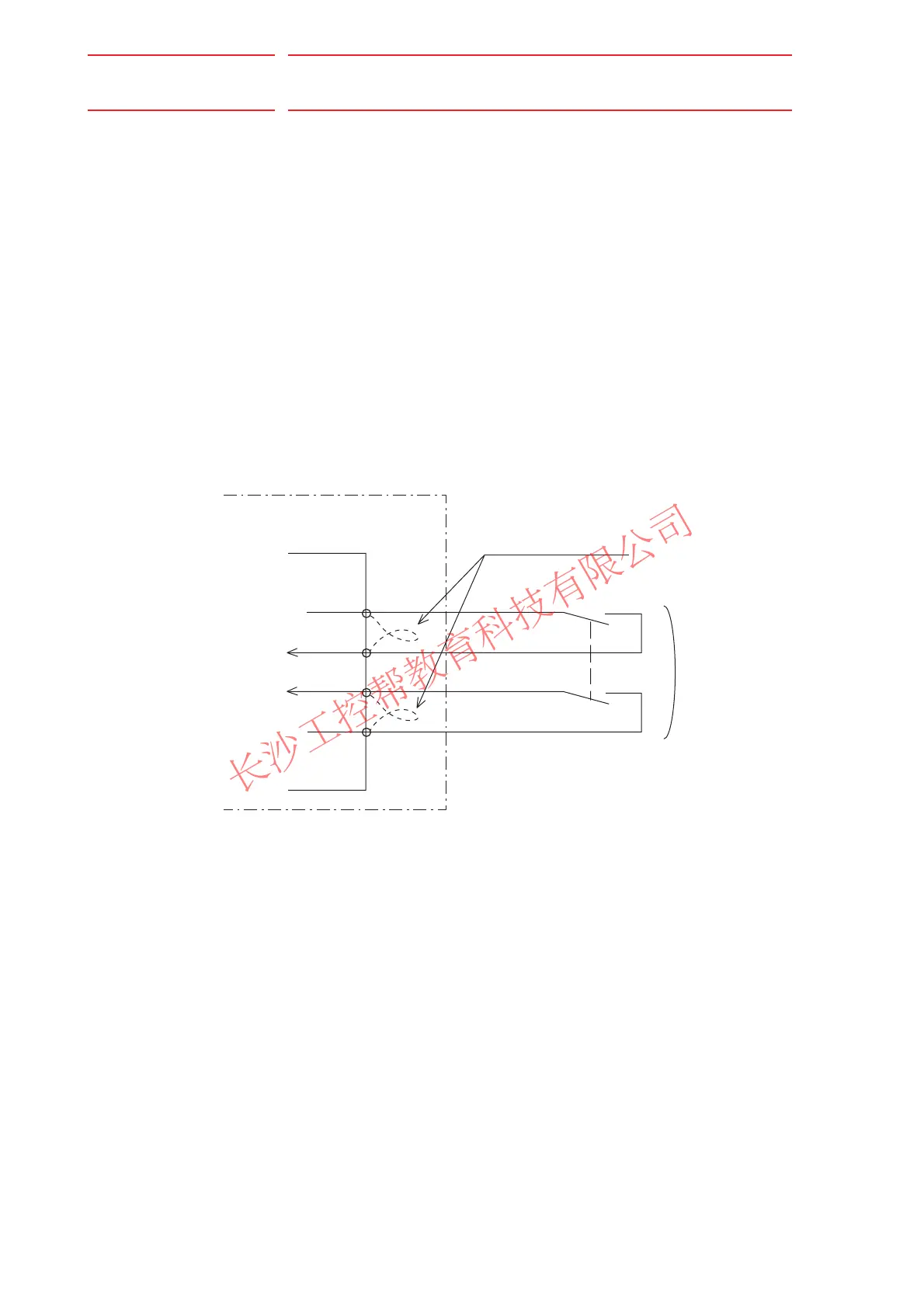

Fig. 13-11: Connection for Servo-ON Enable Input
DX100
CN211
-1
-2
-3
-4
Servo-ON enable input signal
Turn ON/OFF
at the same time
Machine safety unit
JZNC-YSU01-1E
Remove the jumper cable
ONEN1_1+
ONEN1_1-
ONEN1_2+
ONEN1_2-
长沙工控帮教育科技有限公司
工控帮助教小舒QQ:2823408167

YASKAWA DX100 Specifications

General

Programming Language	Inform III
Compatible Robots	Motoman robots
Operating Temperature	0-45°C
Humidity	20-80% RH (non-condensing)
Protection Class	IP20
Interface	Ethernet
Safety Standards	ANSI/RIA R15.06-1999
Pendant	Available
I/O Capacity	1024 inputs / 1024 outputs
Storage Temperature	-10-60°C
