YASKAWA DX100 Instructions

11 Modification of System Configuration
DX100 11.2 Addition of Base and Station Axes
11-10

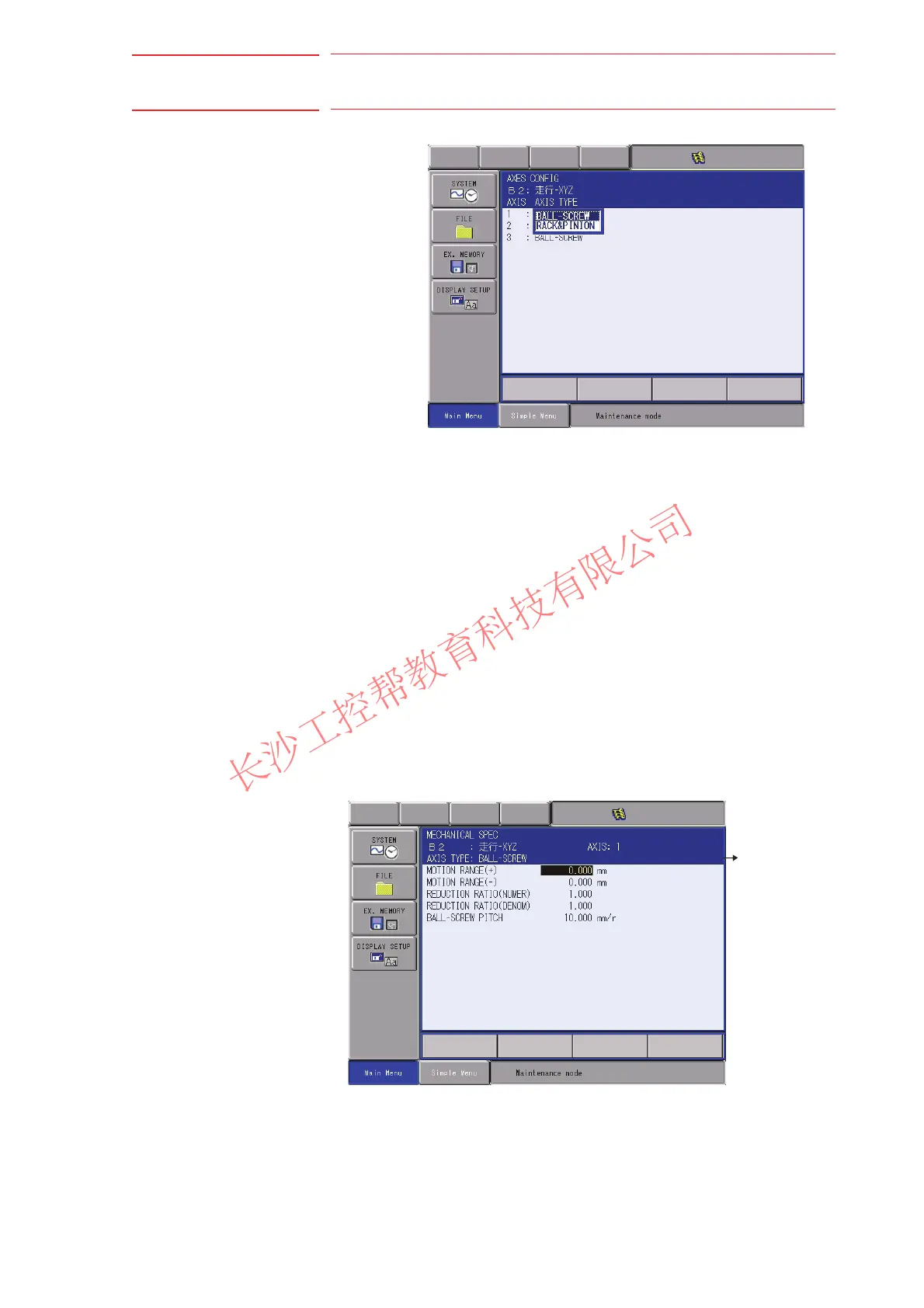

(1) The settable axis type is displayed.
(2) Select "BALL-SCREW" when the servo track is ball-screw type,
and "RACK&PINION" when the servo track is rack & pinion type.
After the selection, the window returns to the AXES CONFIG win-
dow.
(3) Select the axis type.
3. Press [ENTER] in the AXES CONFIG window.
4. The setting in the AXES CONFIG window is completed and the
window moves to the MECHANICAL SPEC window.
11.2.1.4 Mechanical Specification Setting
The mechanical data is specified in the MECHANICAL SPEC window.
1. Confirm specification of each axis in the MECHANICAL SPEC window.
– The mechanical specification of axis is shown.
The MECHANICAL SPEC window (in case of the BALL-SCREW type)
– MOTION RANGE : Input maximum moving position (positive (+)
direction and negative (-) direction) from
home position when setting the home
position to 0. (Unit: mm)
Selected group, type, axis no.
and axis type are shown.
长沙工控帮教育科技有限公司
工控帮助教小舒QQ:2823408167

YASKAWA DX100 Specifications

General

Programming Language	Inform III
Compatible Robots	Motoman robots
Operating Temperature	0-45°C
Humidity	20-80% RH (non-condensing)
Protection Class	IP20
Interface	Ethernet
Safety Standards	ANSI/RIA R15.06-1999
Pendant	Available
I/O Capacity	1024 inputs / 1024 outputs
Storage Temperature	-10-60°C
