YASKAWA DX100 Instructions

8 System Setup
DX100 8.15 Numeric Key Customize Function
8-105
8.15.3.3 Job Call Allocation

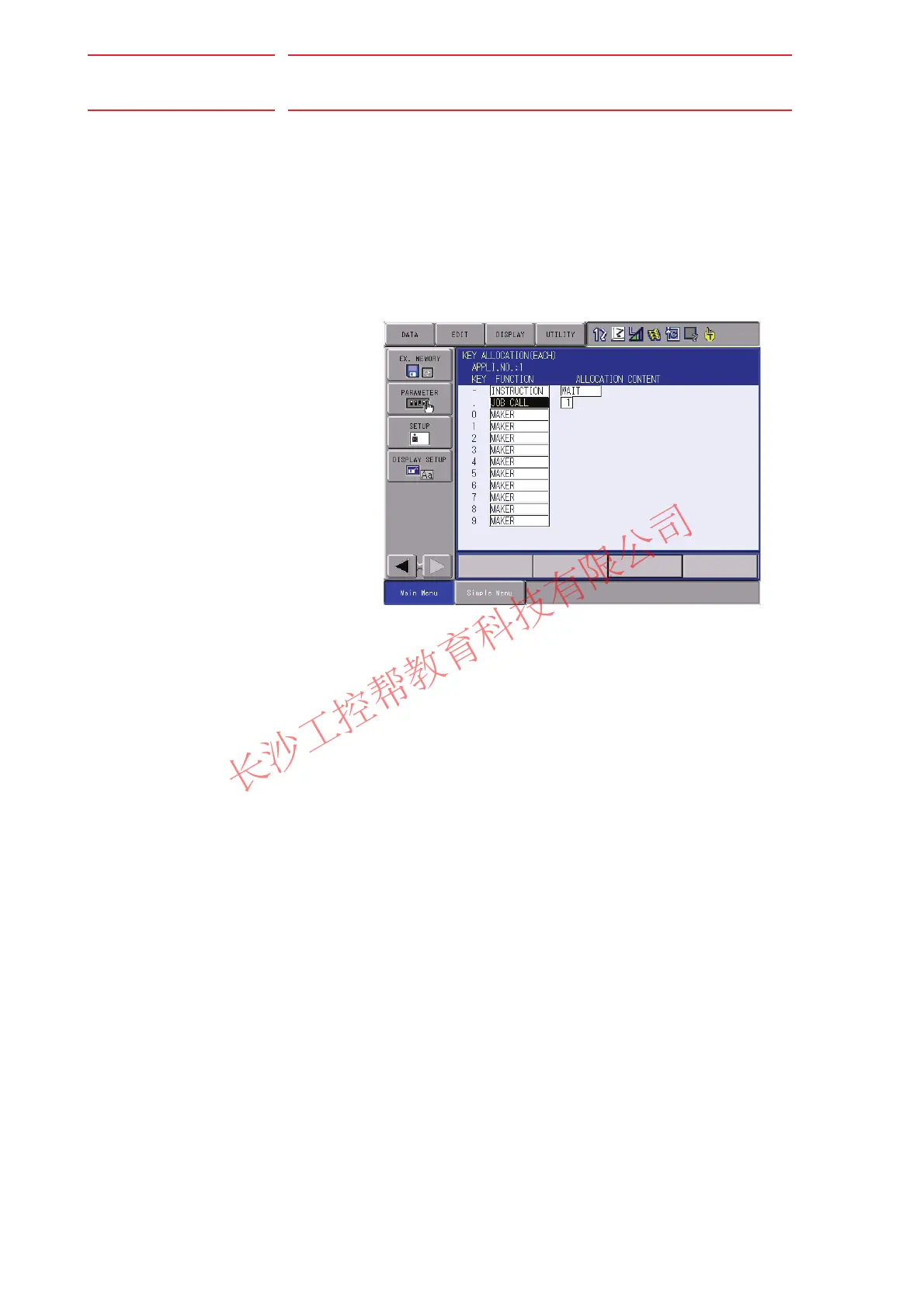

Set this function in the KEY ALLOCATION (EACH) window.
1. Move the cursor to the “FUNCTION” of the key to be allocated and
press [SELECT].
– A selection list appears.
2. Select “JOB CALL”.
– The reserved job registration No. is shown in the “ALLOCATION
CONTENT” (reserved job registration No.: 1 to 10).
(1) To change the reserved job registration No. move the cursor to the
No. and press [SELECT]. Then input buffer line appears.
(2) Input the number to be changed, and press [ENTER].
8.15.3.4 Display Allocation
Set this function in the KEY ALLOCATION (EACH) window.
1. Move the cursor to the “FUNCTION” of the key to be allocated and
press [SELECT].
– Selection list appears.
2. Select [DISPLAY].
3. Move the cursor to “ALLOCATION CONTENT” and press [SELECT].
– Character input is available.
