DX100 13.5 Brake Control Board (JANCD-YBK01-□E)
13-12
13.5 Brake Control Board (JANCD-YBK01-□E)

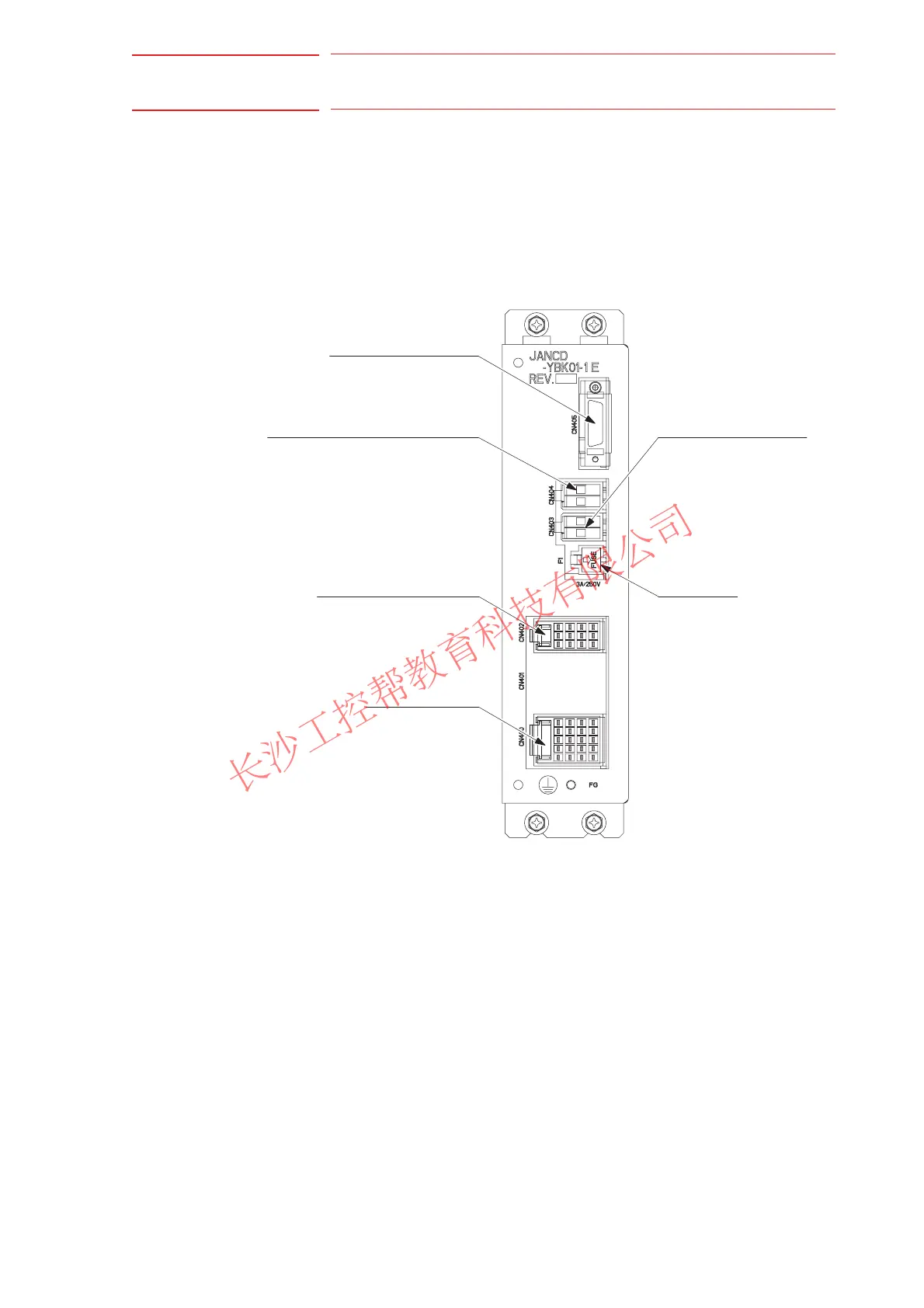

13.5.1 Brake Control Board (JANCD-YBK01-□E)
Brake Control Board controls ON/OFF of the brakes of total nine axes
(Robot + external axes) according to the command signal from Major
Axes Control Circuit Board (SRDA-EAXA01
□).
(CN405)
(CN404)
(CN400)
(CN402)
F1:Fuse
3A/250V
(CN403)
Brake Power Supply Input
Brake Output
Contactor Interlock Input
For Switching External Power Supply
Brake Command Input
