YASKAWA DX100 Instructions

8 System Setup
DX100 8.15 Numeric Key Customize Function
8-107
8.15.3.5 Alternate Output Allocation

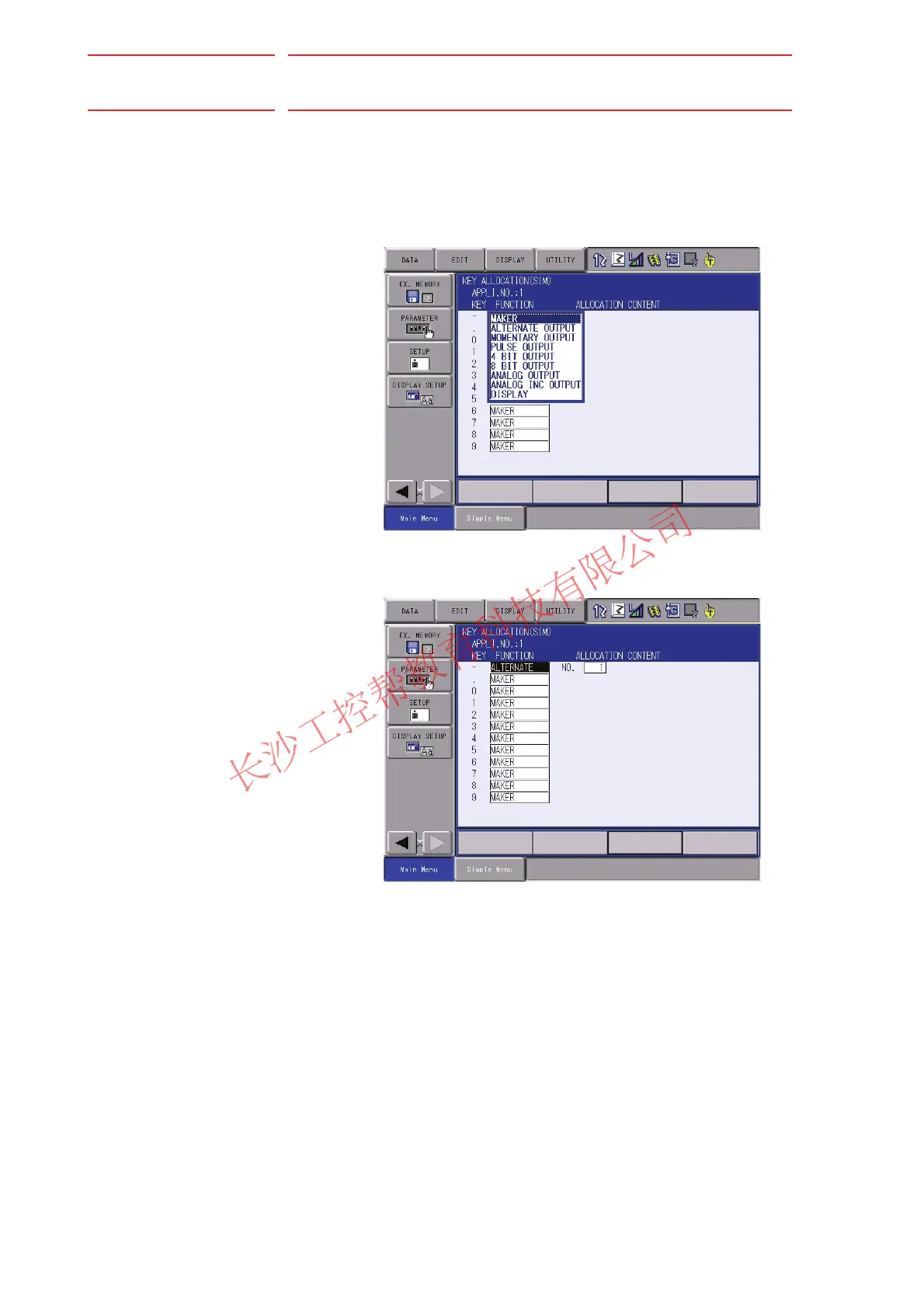

Set this function in the KEY ALLOCATION (SIM) window.
1. Move the cursor to the “FUNCTION” of the key to be allocated and
press [SELECT].
– Selection list appears.
2. Select “ALTERNATE OUTPUT”.
– The output No. is displayed in the “ALLOCATION CONTENT”.
(1) To change the output No., move the cursor to the No. and press
[SELECT]. Then numeric value can be entered.
(2) Input the number to be changed, and press [ENTER].
