YOKOGAWA DL6000 Series

6-6
IM DLM6054-01EN

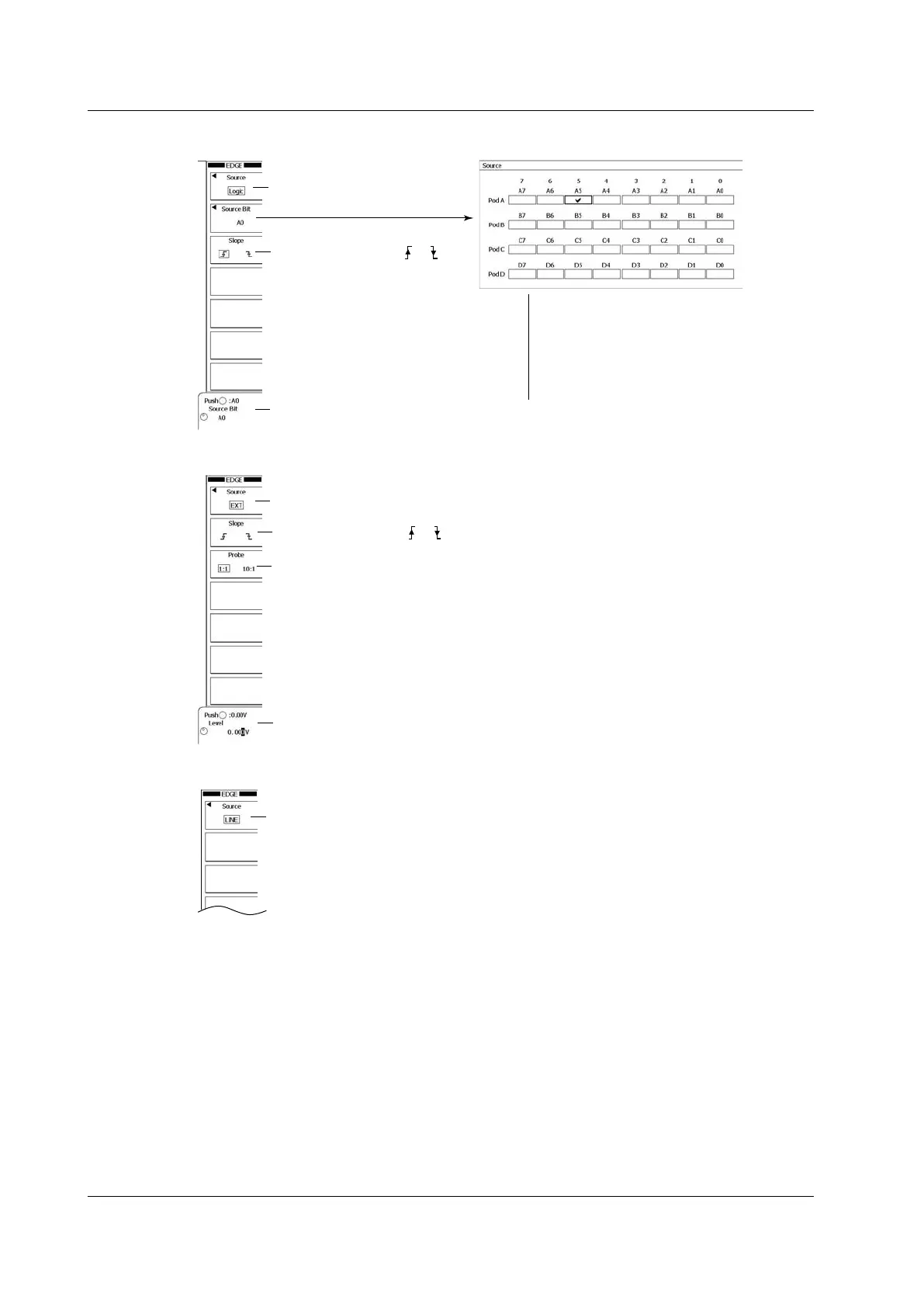

When the Trigger Source is LOGIC (DLM6000)
Set the trigger source to Logic.
Set the trigger slope ( , ).
Select the source bit (A0-A7, B0-B7, C0-C7, -D0-D7).
When the Trigger Source Is EXT
Set the trigger source to EXT.
Set the trigger slope ( , ).
Set the probe attenuation (1:1, 10:1).
Set the trigger level.
When the Trigger Source Is LINE
Set the trigger source to Line.
6.3 Triggering on an Edge Trigger
