YOKOGAWA DL6000 Series User Manual

15-3
IM DLM6054-01EN
Rear Panel Input and Output
3
2
1
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
Index
App

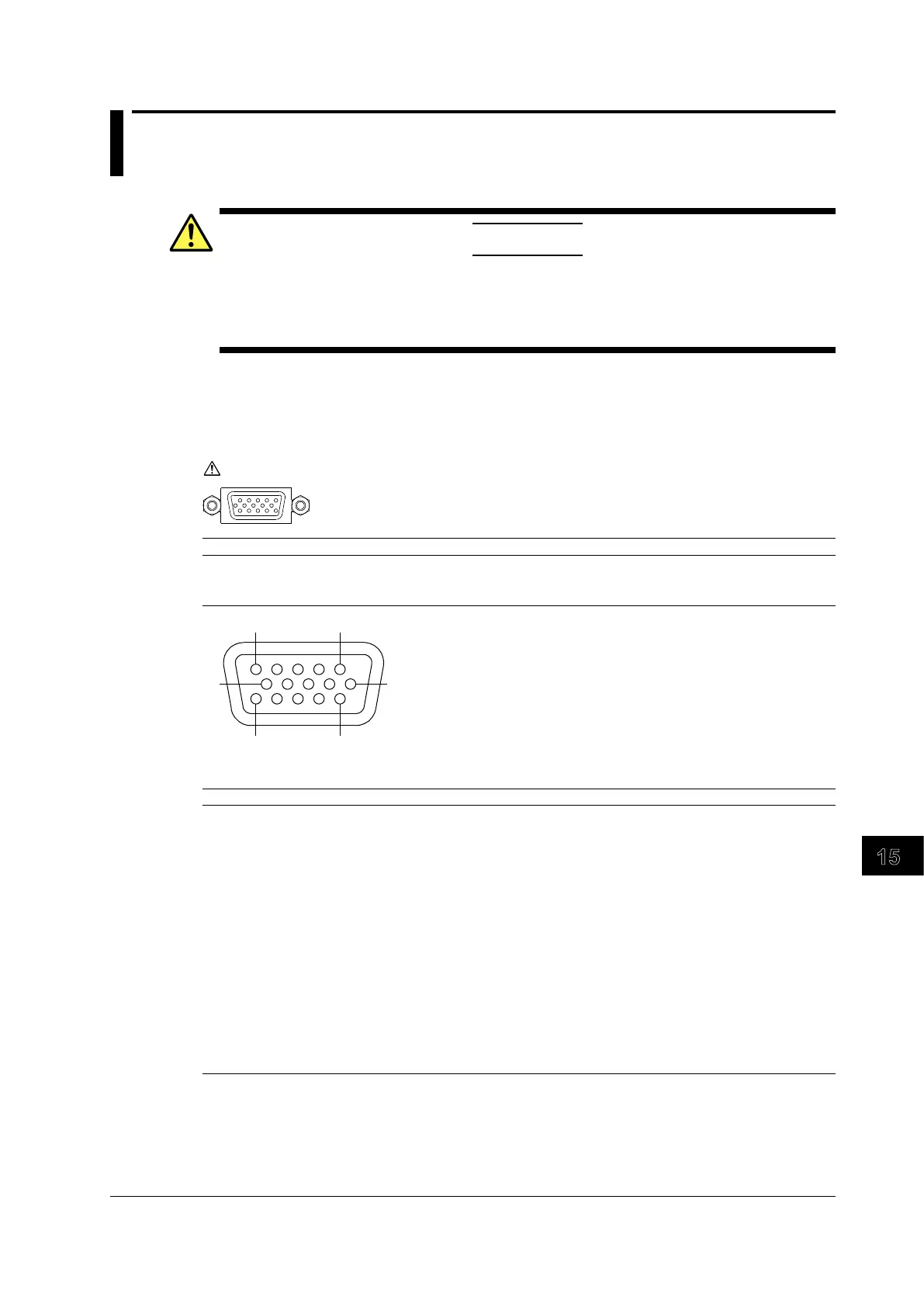

15.3 RGB Video Signal Output (RGB VIDEO OUT)
CAUTION
• Only connect the DL6000/DLM6000 to a monitor after turning both the DL6000/DLM6000
and the monitor off.
• Do not short the VIDEO OUT
terminal or apply external voltage to it. Doing so may damage
the DL6000/DLM6000.
Video Signal Output Terminal
You can connect an external monitor to the video signal output terminal and use it to view the DL6000/
DLM6000 display. Any multisync monitor that supports XGA can be connected.
VIDEO OUT
(XGA)
Item Specifications
Connector type D-Sub 15-pin
Output format Analog RGB output
Output resolution 1024 × 768 dots, approx. 60 Hz Vsync
6
11
1
5
15
10
D-Sub 15-pin receptacle
Pin No. Signal Name Specifications
1 Red 0.7 Vp-p
2 Green 0.7 Vp-p
3 Blue 0.7 Vp-p
4 —
5 —
6 GND
7 GND
8 GND
9 —
10 GND
11 —
12 —
13 Horizontal sync signal Approx. 36.4 kHz, TTL positive logic
14 Vertical sync signal Approx. 60 Hz, TTL positive logic
15 —
Connecting to a Monitor
1.
Turn off the DL6000/DLM6000 and the monitor.
2.
Use an RGB cable to connect the DLM2000 to the monitor.
3.
Turn on the DL6000/DLM6000 and the monitor.
