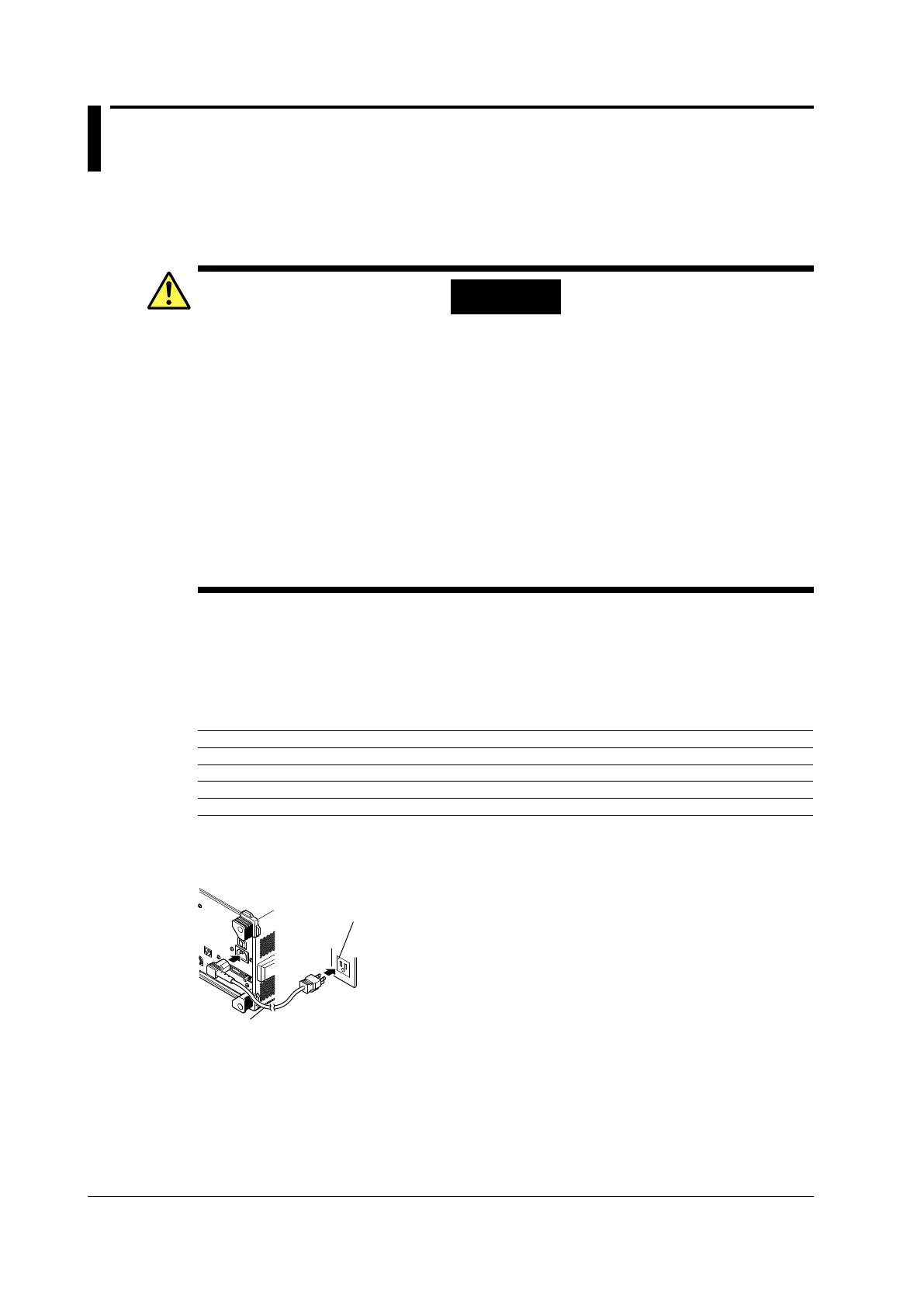

3.3 Connecting the Power
Before Connecting the Power
Make sure that you observe the following points before connecting the power. Failure to do so may
cause electric shock or damage to the instrument.
WARNING
• Before connecting the power cord, ensure that the source voltage matches the rated supply
voltage of the instrument and that it is within the maximum rated voltage of the provided
power cord.
• Check that both the main power switch and power switch of th
e DL6000/DLM6000 are off
before connection the power cord.
• T
o prevent the possibility of electric shock or fire, be sure to use the power cord for the
instrument that was supplied by YOKOGAWA.
• Make sure to perform protective earth grounding to prevent ele
ctric shock. Connect the
power cord to a three-prong power outlet with a protective earth terminal.
• Do not use an extension cord without a protective earth groun
d. Otherwise, the protection
function will be compromised.
• If an
AC outlet that conforms to the accessory power cord is unavailable and protective
grounding cannot be furnished, do not use the instrument.
Connecting the Power Cord
1.
Check that both the main power switch and power switch of the DL6000/DLM6000 are off.
2.
Connect the power cord plug to the power connector on the rear panel.
3.
Connect the other end of the cord to an outlet that meets the conditions below. Use the three-prong
power outlet equipped with a protective earth terminal.
Rated supply voltage
*
100 to 120 VAC/220 to 240 VAC (automatic switching)
Permitted supply voltage range 90 to 132 VAC/198 to 264 VAC
Rated supply voltage frequency 50/60 Hz
Permitted supply voltage frequency range 48 to 63 Hz
Maximum power consumption Max. approx. 300 VA
* The DL6000/DLM6000 can use a 100-V or a 200-V system for the power supply
. The maximum rated voltage
differs according to the type of power cord. Check that the voltage supplied to the DL6000/DLM6000 is less
than or equal to the maximum rated voltage of the provided power cord (see page iii) before using it.
Three-prong outlet
Power cord
(accessory)
