YOKOGAWA DL6000 Series User Manual

10-1
IM DLM6054-01EN
Analysis and Searching
3
2
1
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
Index
App

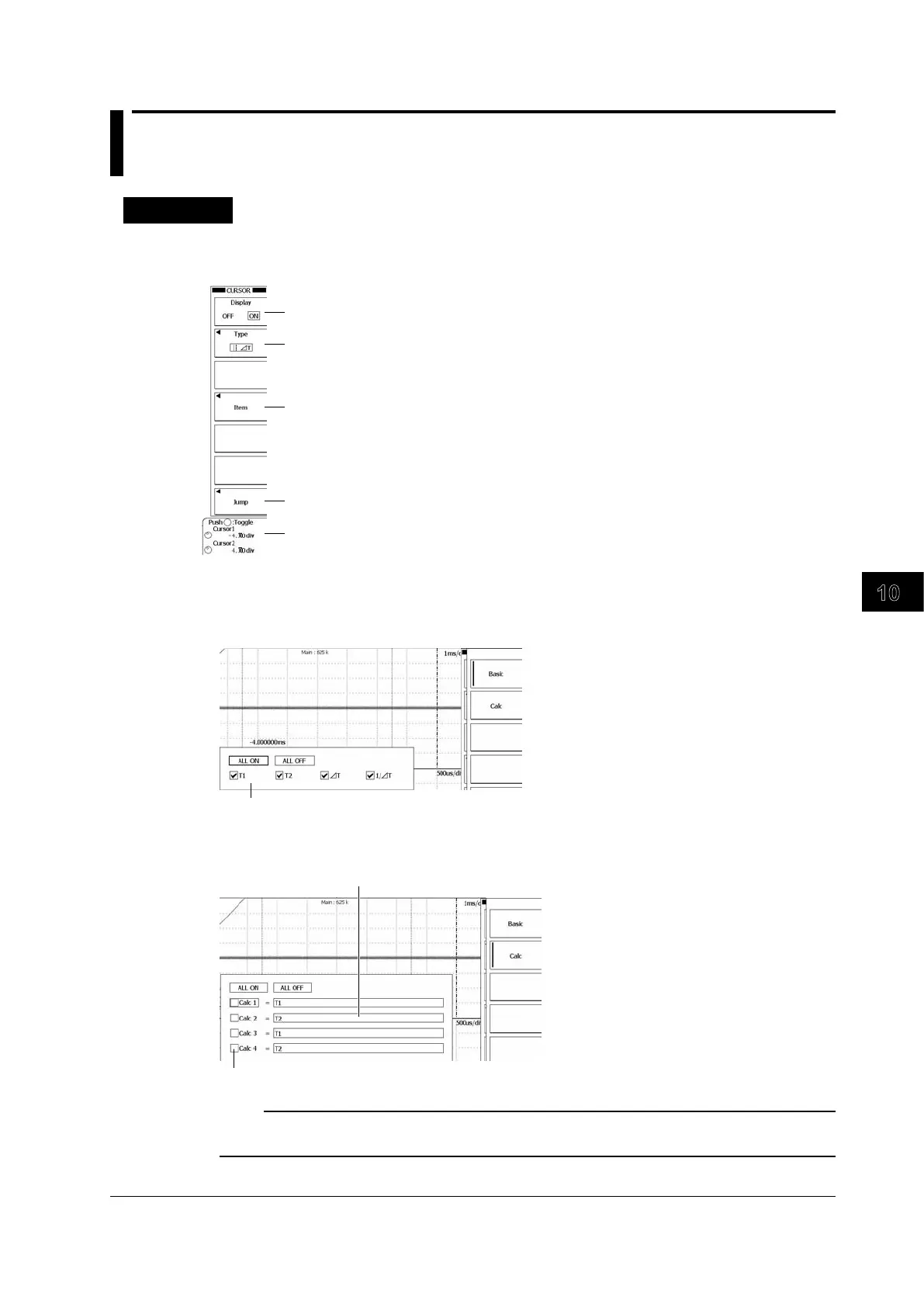

10.1 Using Cursors to Make Measurements
Procedure
CURSOR
D
T
Menu
Press the CURSOR key, the Type soft key, and then the
D
T soft key to display the following menu.
Turns cursor measurement on and off
Set the cursor type to
∆
T.
Press to set measurement items.
Press to specify where to make the cursors jump to (Zoom1, Zoom2).
Set the cursor positions (Cursor1 and Cursor2).
Setting Measurement Items (Item)
Press the Item soft key and then the Basic or Calc soft key to display one of the following menus.
When You Press Basic
Set the items that you want to measure.
When You Press Calc
Set the expressions that you want to use.
Define expressions using functions, arithmetic operators,
and measurement items.
Note
If you want to move the cursors while maintaining the same space between them, press SET repeatedly until
the jog shuttle adjusts both Cursor1 and Cursor2.
Chapter 10 Analysis and Searching
