13.7 Loading Measured Data
CAUTION
Do not remove the storage medium or turn off the power when the file icon ( ) in the bottom
left of the screen is blinking. Doing so may damage the storage medium and corrupt its data.
Procedure

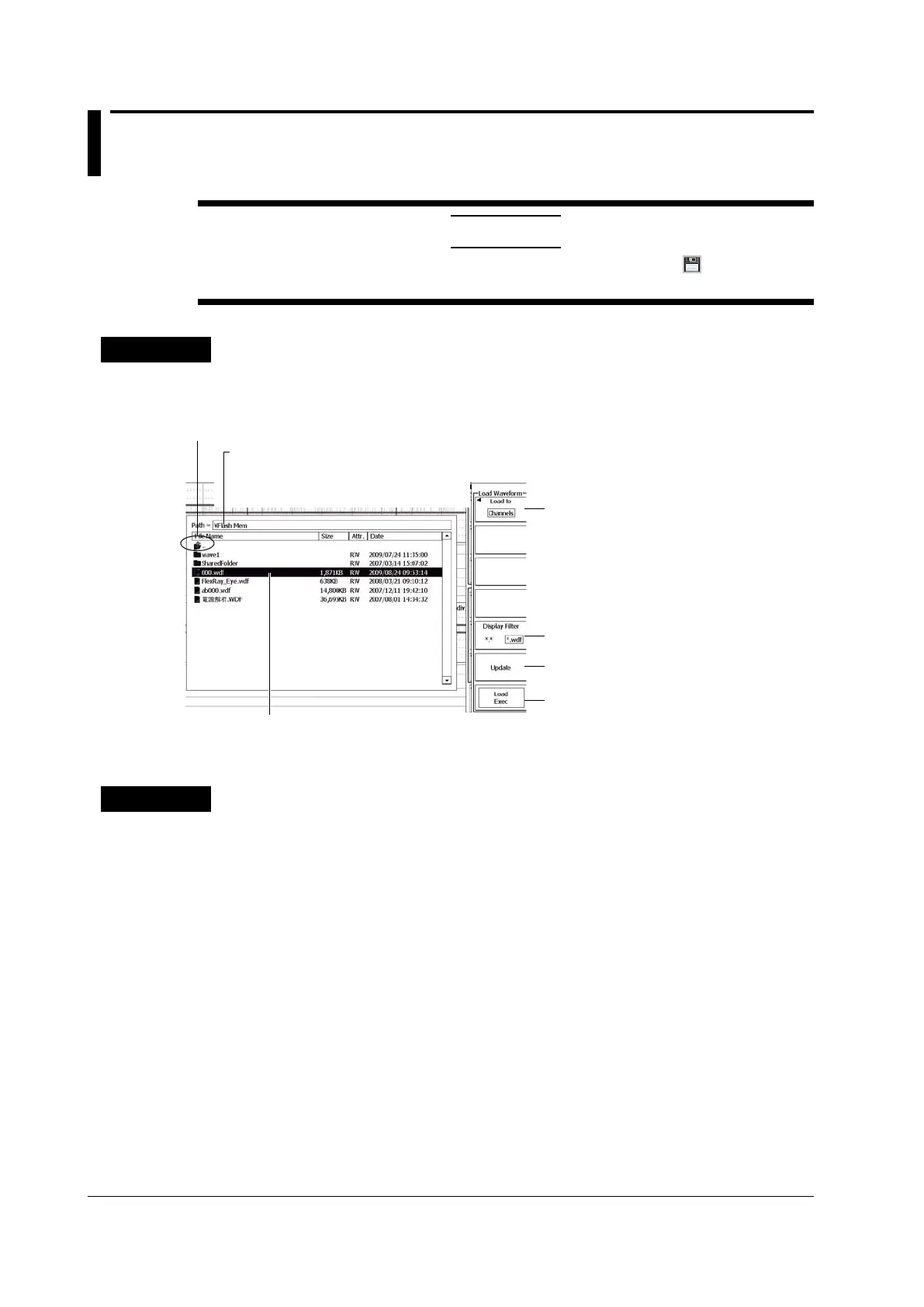

FILE Waveform (Load) Menu
Press FILE and then the Waveform(Load) soft key to display the following menu.
Set the location to which you want to
load the data
Set which files to display in the File
List window (*.wdf, *.*).
Updates the File List with the most
recent information
Loads measured data
Set the folder to load from.
Move the cursor to a folder by using the
jog shuttle or the SET key (by moving it
up, down, left, or right), and press SET.
To move to the folder that contains the current folder, move the cursor to this line and press SET.
Move the cursor to the file that you want to
load by using the jog shuttle or the SET key
(by moving it up, down, left, or right).
Explanation
You can load and display measured data that has been saved to a storage medium. You can load the
measured data into a reference waveform or the acquisition memory. Data saved with Source set to
ALL or LOGIC cannot be loaded into a reference waveform. Also, compressed data cannot be loaded
into the acquisition memory.
Data that has been loaded into the acquisition memory is overwritten when you start waveform
acquisition.
Data to Load (Load to)
You can select the data to load from the following options.
Channels: All the saved data is loaded into the acquisition memory. The saved setup data is also
loaded.
REF1 to REF4: The data is loaded into the reference waveform that corresponds to the number that
you specify. Setup data is not loaded.
