10-39
IM DLM6054-01EN
Analysis and Searching
10

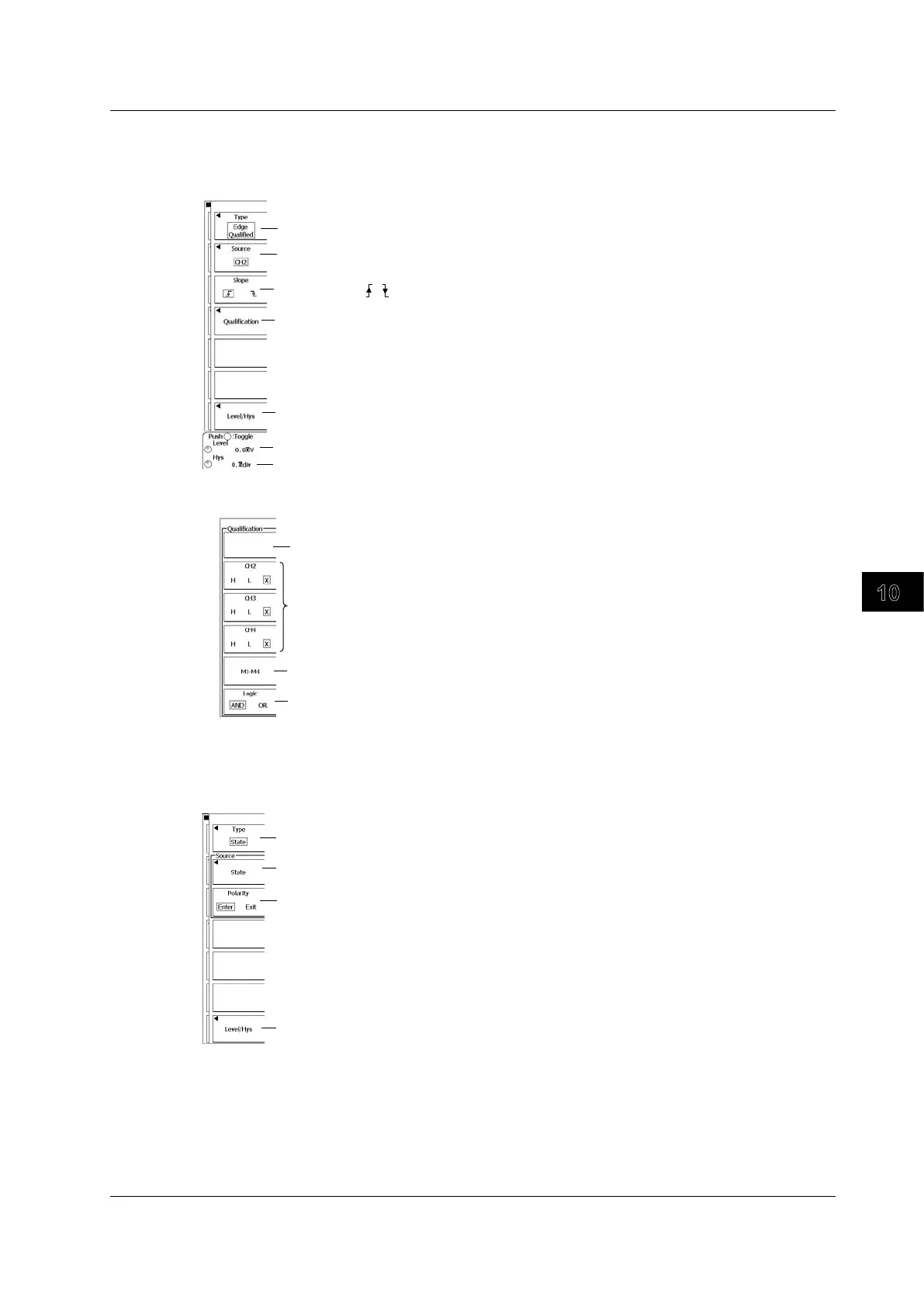

Using Qualifications to Limit an Edge Search (Edge Qualified)
Press the Setup soft key, the Type soft key, the Edge/State soft key, and then the Edge Qualified soft
key to display the following menu.
Set the search type to Edge Qualified.
Set the hysteresis of the source.
Set the level of the source.
Set the waveform to search
(CH1–CH4, M1–M4).
Set the slope ( , ).
Press to configure the qualifications.
► section 6.4
Press to set the level and hysteresis.
Level and Hysteresis Settings
You cannot set a qualification for the waveform that will be searched.
Set the logic for the qualifications.
Set the qualification for each channel (H, L, X).
Press to open the setup menu for M1 to M4.
Searching for State Conditions (State)
Press the Setup soft key, the Type soft key, the Edge/State soft key, and then the State soft key to
display the following menu.
Set the location to be searched (Enter, Exit).
Set the search type to State.
Press to set the level and hysteresis.
► “Searching for Edge Using Conditions”
Press to set the state conditions.
► section 6.6
10.9 Searching Waveforms
To Next Page
