6.15 Performing GO/NO-GO Determination with
Zones
Procedure
Action Go/Nogo Menu

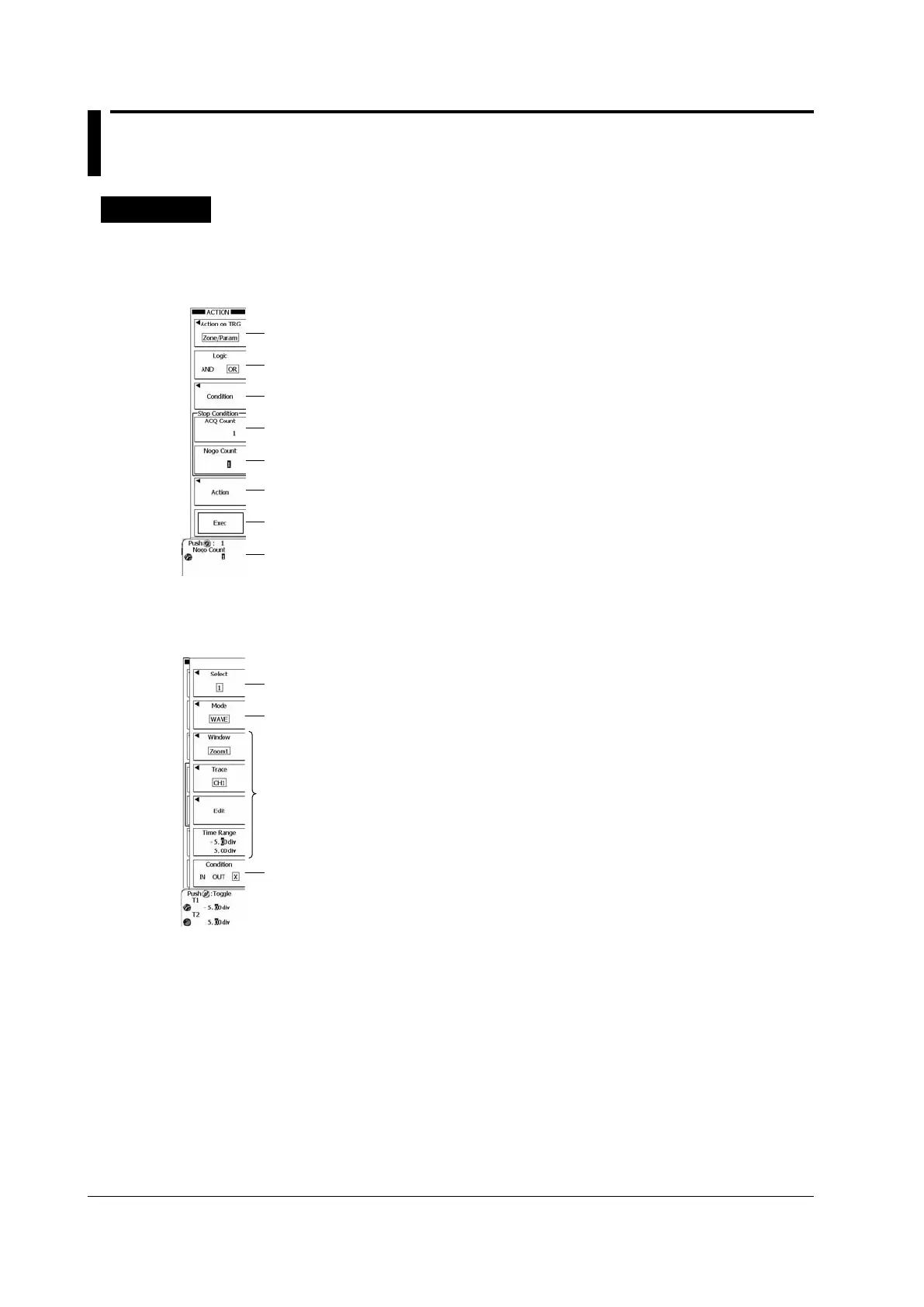

Press SHIFT+MODE(ACTION GO/NO-GO), the Action on TRIG soft key, and then the Zone Param
soft key to display the following menu.
Press to configure the determination conditions.
Set the number of waveform acquisitions (using the jog shuttle).
Set the number of NO-GO determinations (using the jog shuttle).
Press to set the actions to perform when the conditions are met.
Executes (Exec) or stops (Abort) GO/NO-GO determination
Set the waveform acquisition count and the NO-GO determination count.
Set the GO/NO-GO determination type to Zone/Param.
Set the determination logic (AND, OR).
Setting Conditions for Determination (Condition)
Press the Condition soft key to display the following menu.
Set the determination condition number.
Set the determination mode (Rect, WAVE, Polygon, Parameter
*
).
*
See section 6.16 for details.
Set the reference condition (IN, OUT, X).
The setup menu varies depending on the determination mode.
