YOKOGAWA DL6000 Series User Manual

15-4
IM DLM6054-01EN

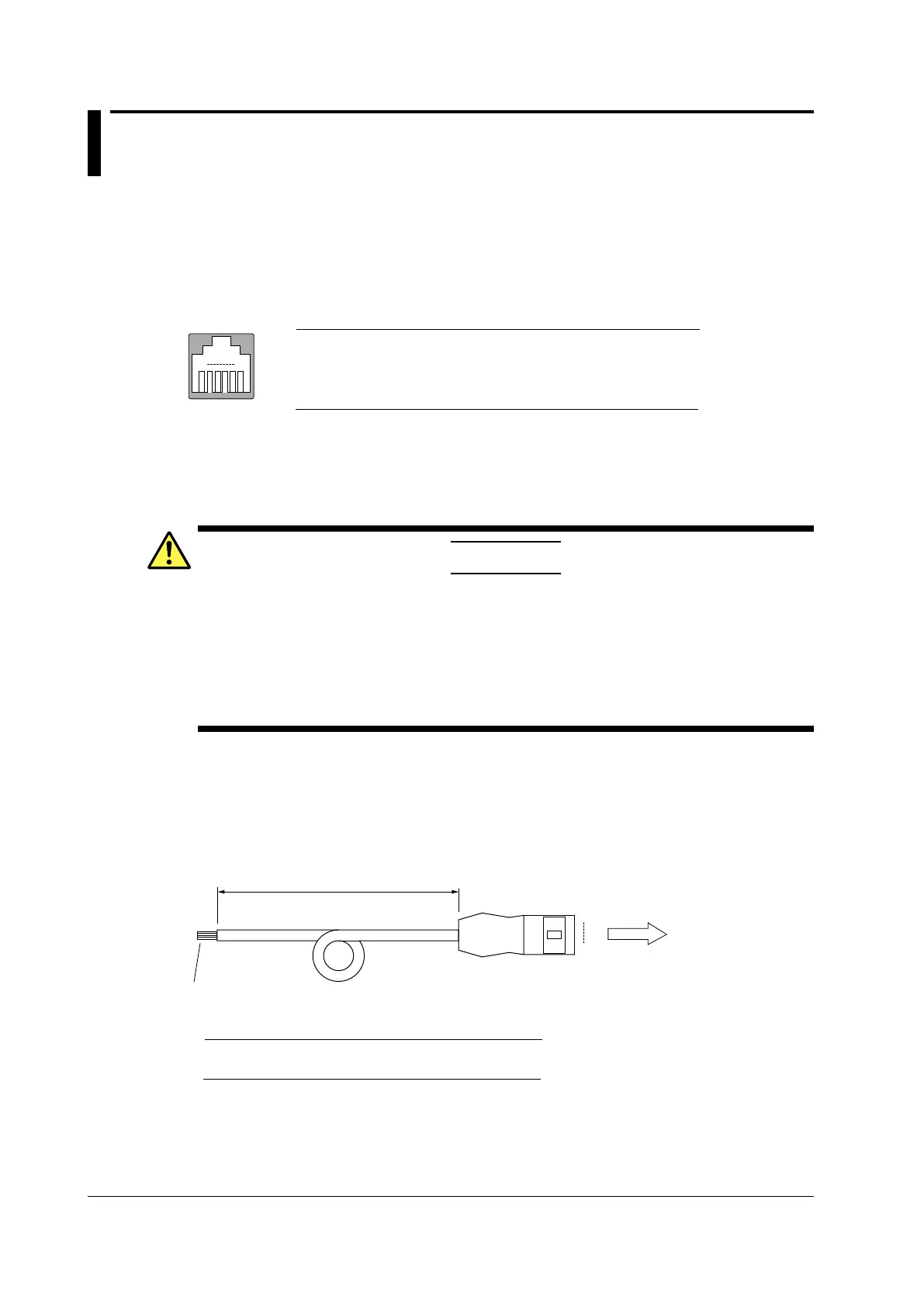

15.4 GO/NO-GO Signal Output
You can transmit the results of GO/NO-GO determination to an external device.
Output Terminal
The connector uses an RJ-12 modular jack. Connect the separately sold 366973 cable to the
connector.
6
1
1
Pin No. Signal Name
2
3
4
5
6
NC (no connection)
GO OUT (negative logic)
GO/NO-GO
NO-GO OUT (negative logic)
Connector on the
DL6000/DLM6000
GND
NC (no connection)
NC (no connection)
Input level: TTL (0 to 5 V)
Connecting to Other Instruments
CAUTION
• Do not apply external voltage to the NO-GO OUT and GO OUT output pins. Doing so may
damage the DL6000/DLM6000.
• When connecting the GO/NO-GO determination signal output
to another device, do
not connect the wrong signal pin. Doing so may damage the DL6000/DLM6000 or the
connected device.
• Do not connect a USB cable to the GO/NO-GO output terminal. Doing so may damage the
DL6000/DLM6000.
When connecting to an external device, use a cable designed for GO/NO-GO determination, such as
optional accessory 366973.
Do not use this cable for any purpose other than transmitting GO/NO-GO determination signals from
the DL6000/DLM6000.
1
6
Approx. 1.5 m
RJ-12 modular jack
Connect to the GO/NO-GO output
connector on the rear panel of the
DL6000/DLM6000.
Process the wires at the end of the
stripped cable as necessary.
Pin No. Signal Name Logic
3
4
5
GO OUT
NO-GO OUT
Negative logic
Negative logic
GND
Wire color
White
Green
Blue
Specifications of the GO/NO-GO Cable (Optional accessory 366973)
