8-2
IM DLM6054-01EN
Setting the Intensity of the Grid, Zoom Box, Cursor, and Marker
(Grid/Cursor)

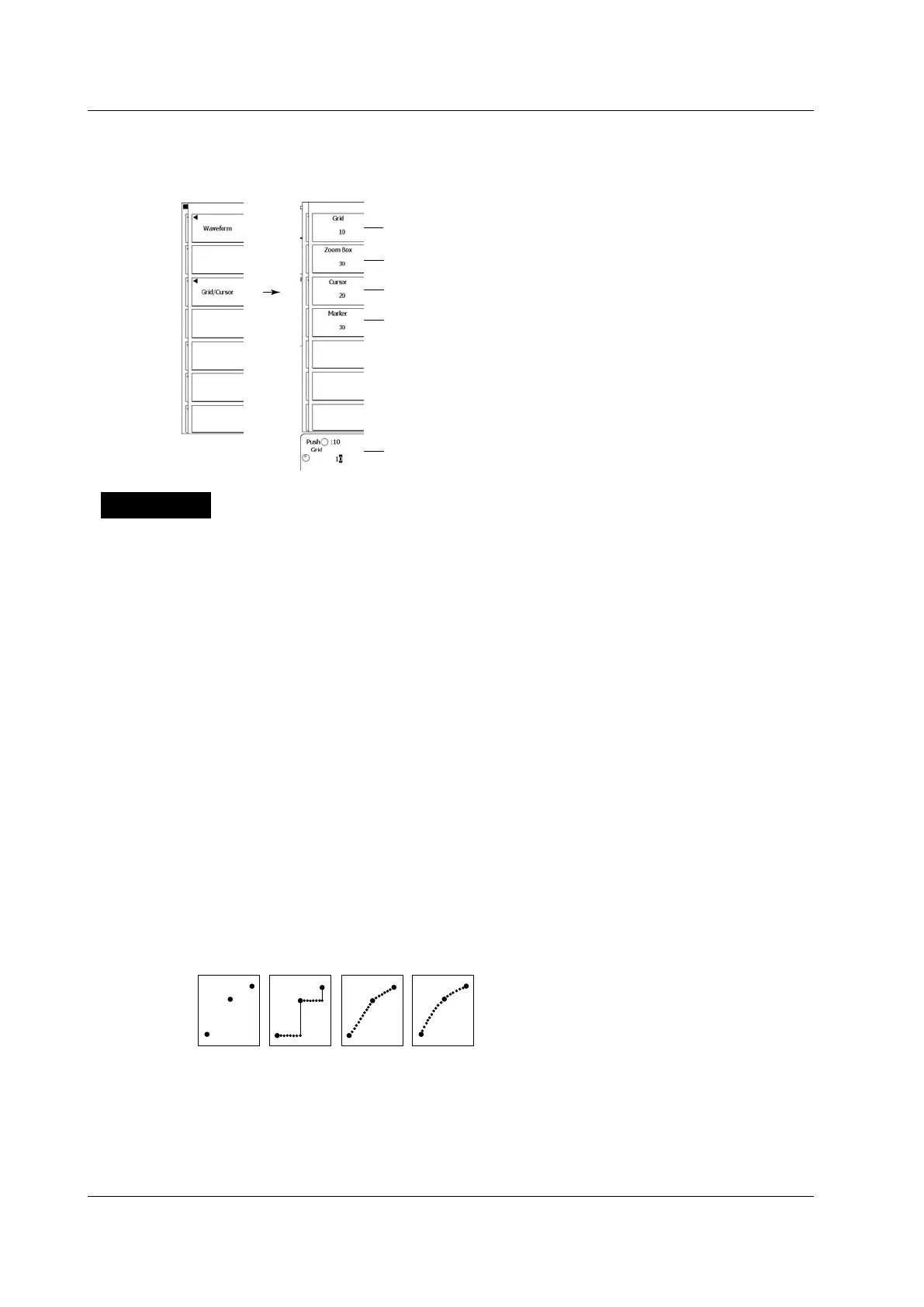

Press the Color soft key and then the Grid/Cursor soft key to display the following menu.
Set the grid intensity (using the jog shuttle).
Set the zoom box intensity (using the jog shuttle).
Set the cursor intensity (using the jog shuttle).
Set the marker intensity (using the jog shuttle).
Set the intensity of the grid, zoom box, cursor, or marker.
Explanation
Display Format (Format)
You can choose how much you want to divide the analog waveform display window. The positions in
which each of the channels waveforms are displayed vary depending on the display format.
Single (no splitting), Dual (split in half), Triad (split into thirds), and Quad (split into quarters)
Display Interpolation (Dot Connect)
Set the method used to connect the sampled data points in the displayed waveform. In the Main,
Zoom1, and Zoom2 windows, when the display record length is one of the values listed below,
interpolation just involves connecting the sampled data points vertically. It does not matter whether you
select Pulse, Line, or Sine.
• 4 kpoints and 5 kpoints
• Above 10 kpoints
When the display record length is set to a value other than those listed above, the specified
interpolation method is used to produce points between the sampled data, and those points are
connected vertically.
OFF: The DL6000/DLM6000 does not perform interpolation.
Pulse: T
he DL6000/DLM6000 draws a horizontal line to the time value of the next sampled data point
and then draws a vertical line up to point.
Line: The DL6000/DLM6000 interpolates between two points using a straight line.
Sine: The DL6000/DLM6000 interpolates between two points using the sin x/x function.
Illustrations of Interpolation Methods
8.1 Setting Display Conditions
