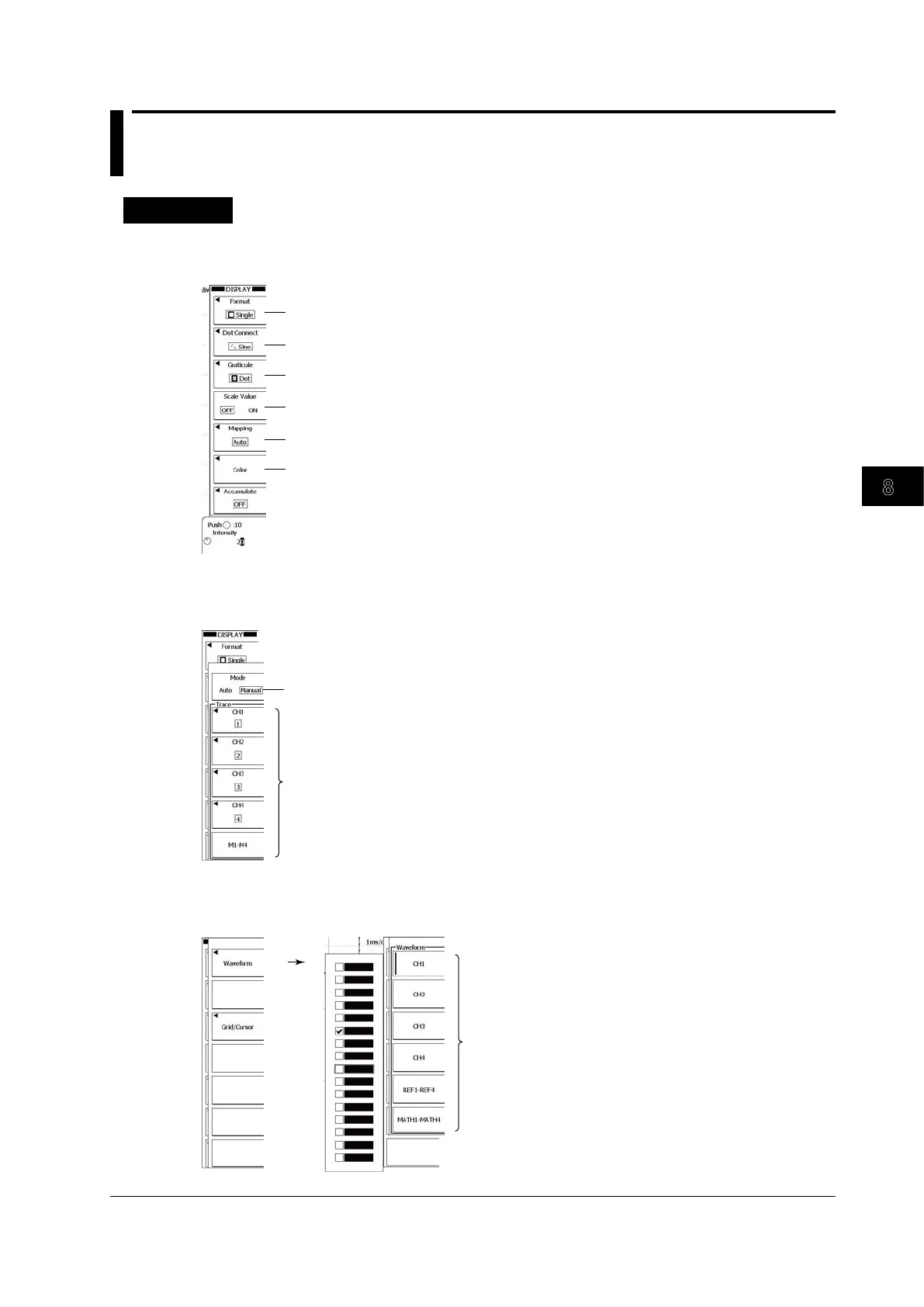

8.1 Setting Display Conditions
Procedure
DISPLAY Menu
Press DISPLAY to display the following menu.
Set the display format (Single, Dual, Triad, Quad).
Set the display interpolation (OFF, Pulse, Line, Sine).
Set the graticule display (Dot, Line, Frame, Cross Hair).
Turns the scale value display on or off
Press to set waveform mapping.
Press to set the waveform display color and grid, zoom box, cursor, and marker settings.
Setting Waveform Mapping (Mapping)
Press the Mapping soft key to display the following menu.
Set the waveform mapping mode (Auto, Manual).
Set the channel to set (CH1–CH4, M1–M4).
Setting Waveform Display Colors (Waveform)
Press the Color soft key and then the Waveform soft key to display the following menu.
Set the waveform display colors
(for CH1–CH4, REF1–REF4, MATH1–MATH4).
Chapter 8 Display
