Displaying and Searching History Waveforms
3
2
1
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
Index
App

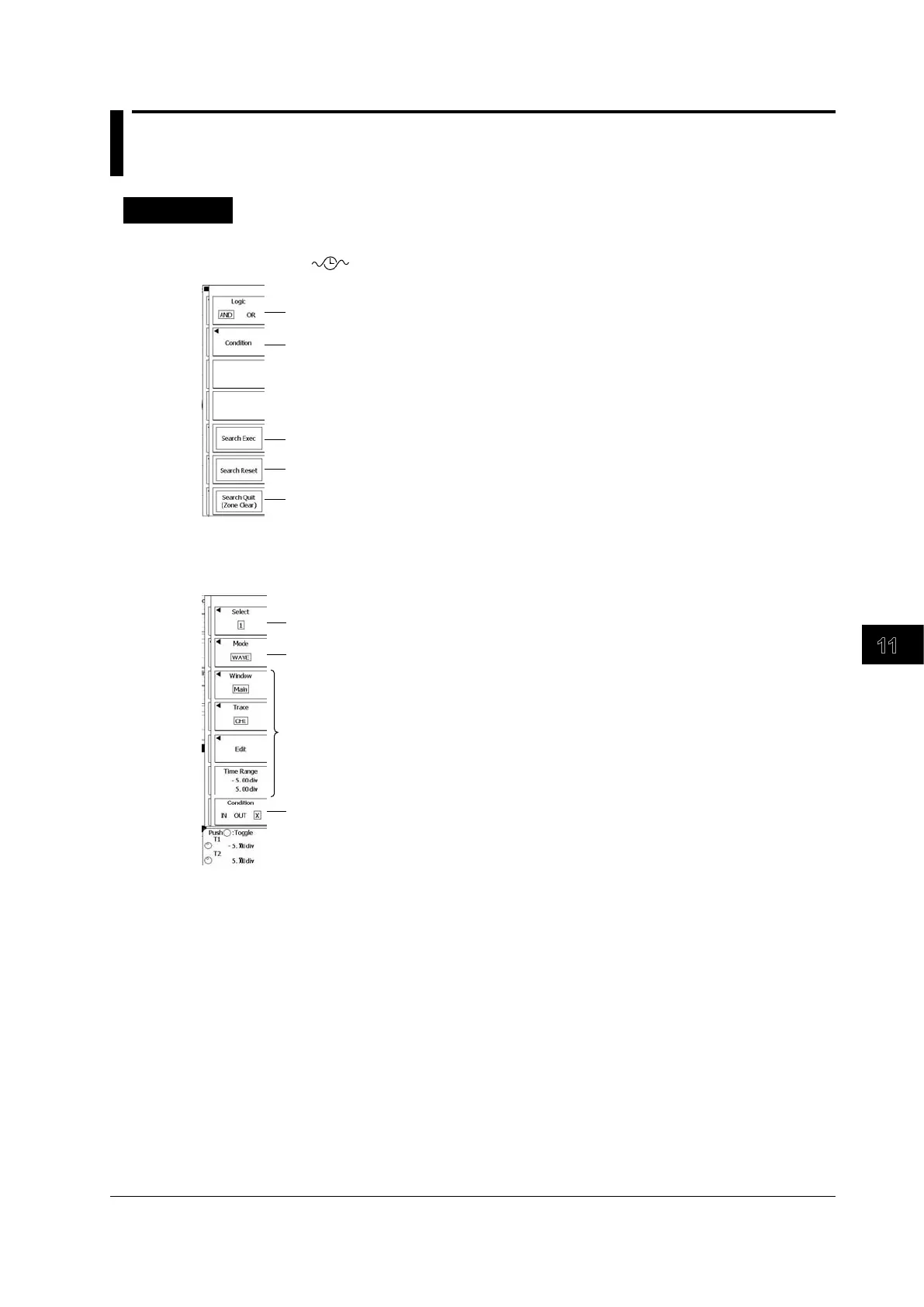

11.2 Searching for History Waveforms by Zone
Procedure
HISTORY Search Menu
Press HISTORY ( ) and then the Search soft key to display the following menu.
Set the search logic (AND, OR).
Configure the search conditions.
Executes a search
Ends the search
Clears the search zones
Setting Search Conditions (Condition Setup)
Press the Condition soft key to display the following menu.
Set the search condition number.
Set the search mode (Rect, WAVE, Polygon, Parameter).*
* See section 11.3 for details.
Set the search criterion (IN, OUT, X).
The setup menu varies depending on the search mode.
