9-14
IM DLM6054-01EN

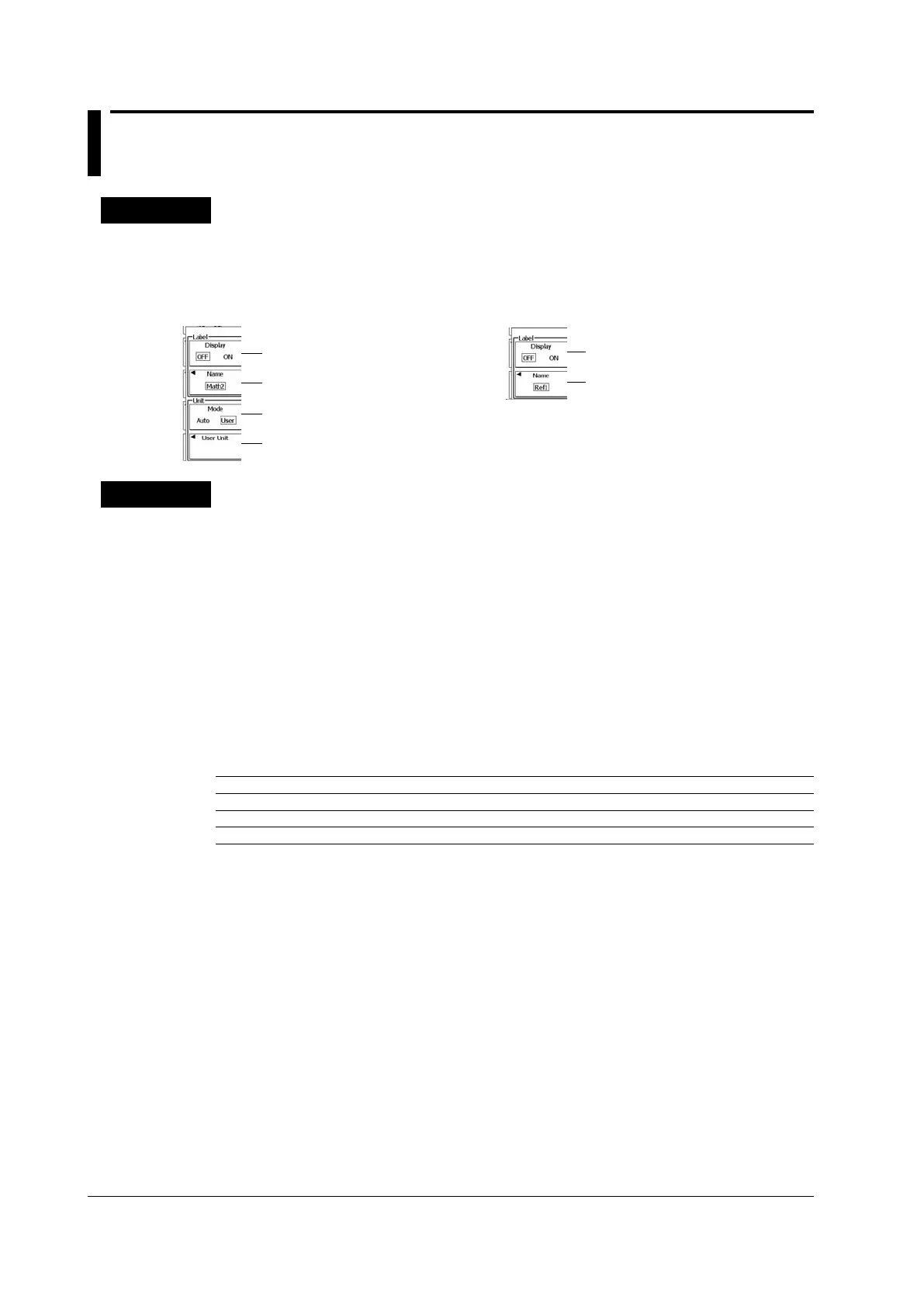

9.9 Setting Labels and Units
Procedure
MATH/REF Label and Unit Menus
Press MATH/REF and then the Label/Unit soft key to display the following menu.
(When the computation mode is Ref, press MATH/REF and then the Label soft key.)
Turns labels on and off
Set the label.
Set the unit mode (Auto, User).
Specify a unit (when Mode is set to User).
Turns labels on and off
Set the label.
When the computation mode is Math
When the computation mode is Ref
Explanation
Setting Labels and Units (Label/Unit)
Turning Labels On and Off (Display)
Select whether or not to display labels.
Label (Name)
When you turn the label display on, you can set the MATH1 to MATH4 labels or the REF1 to REF4
labels using up to eight characters.
Unit (Unit)
You can assign a unit to the computed results.
• Auto
The default unit for the current computation type is used.
Filter, addition, subtraction, or multiplication V, A, VV, AA, or VA
Integration Vs, As, VVs, AAs, or VAs
Edge count and rotary count Blank
D/A conversion and user-defined computation EU
• User
You can specify a unit using up to four characters.
To Next Page
