YOKOGAWA DL6000 Series User Manual

10-32
IM DLM6054-01EN
Configuring Cursors (Cursor)

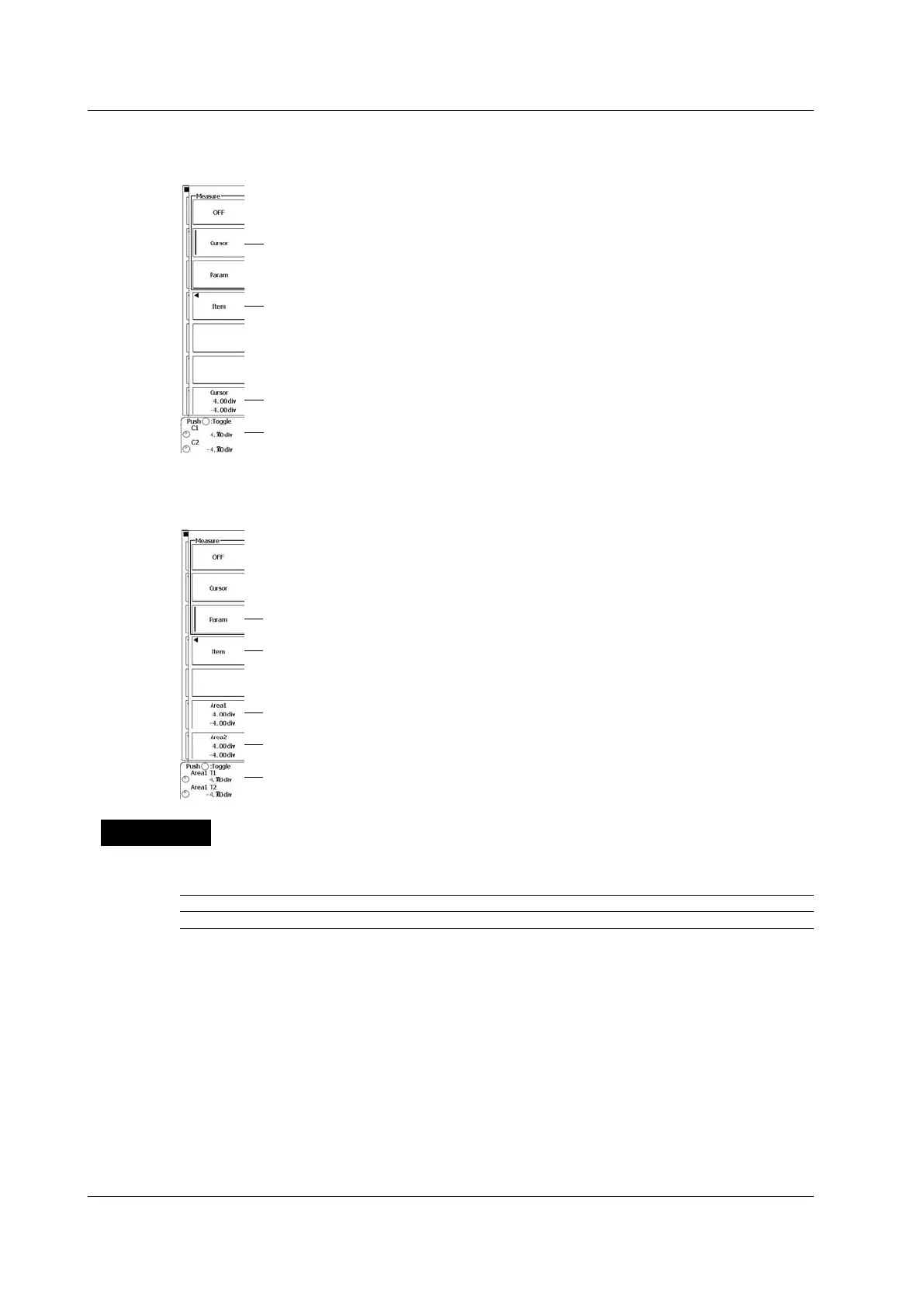

Press the Measure soft key and then the Cursor soft key to display the following menu.
Select Cursor.
Press to set the item to analyze (Basic, Calc).
Switches the value that the jog shuttle adjusts (C1, C2)
Set the cursor positions (C1 and C2).
Configuring Parameters (Param)
Press the Measure soft key and then the Param soft key to display the following menu.
Select Param.
Press to set the item to analyze (Area1, Area2, Calc item).
Set the range of Area1 (using the jog shuttle).
Set the range of Area2 (using the jog shuttle).
Set the upper and lower limits (T1 and T2) of the Area1 and Area2 ranges.
Explanation
Axis (Mode)
Select the histogram axis.
V Vertical
H Horizontal
Waveform to Display (Trace)
Select a waveform from CH1 to CH4 or M1 to M4.
Source Window (Window)
You can set the source window to main, Zoom1, or Zoom2.
10.7 Displaying the Frequency Distribution of a Specified Area (Accum Histogram)
