9.8 Loading Reference Waveforms
Procedure

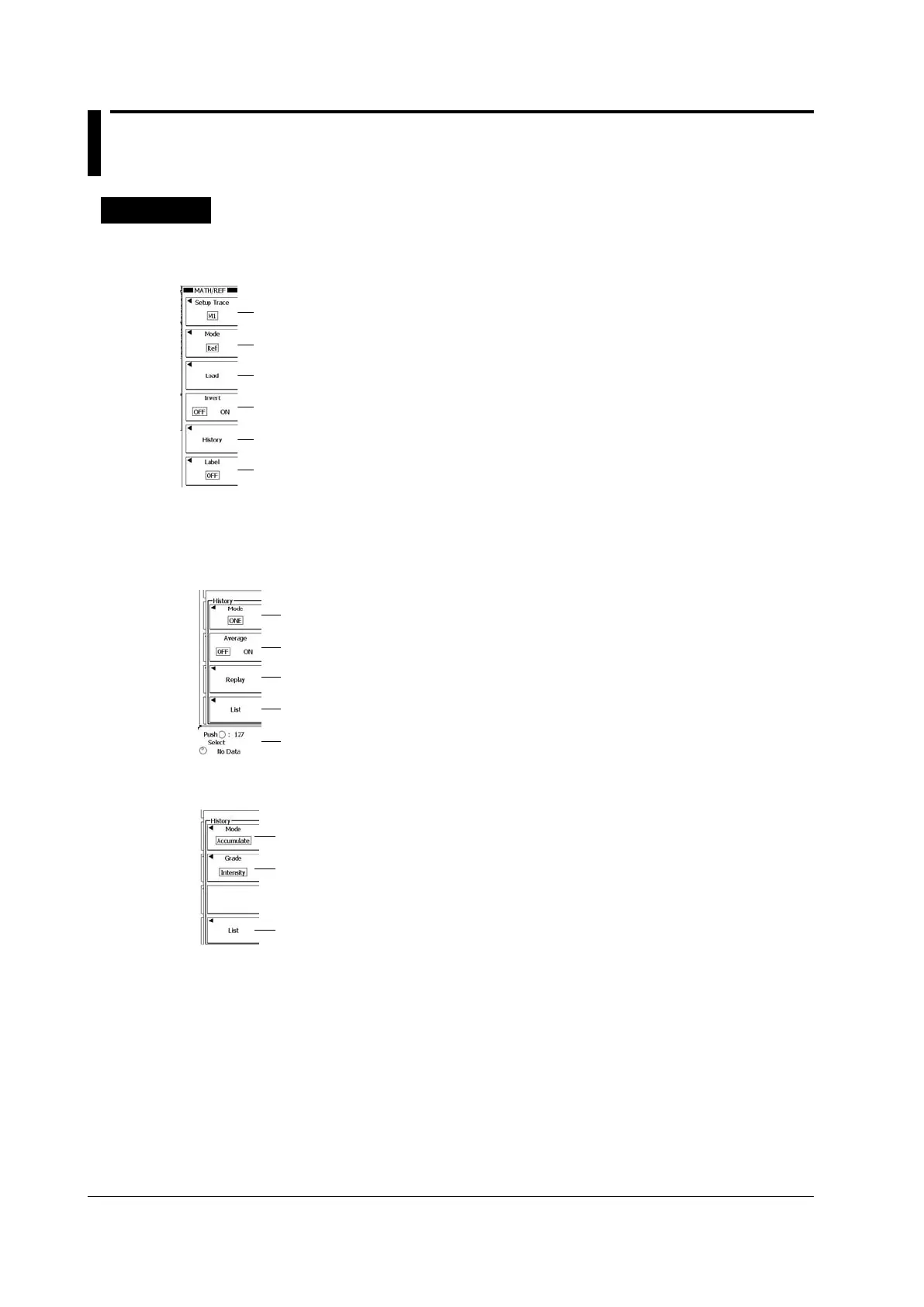

MATH/REF Menu
Press MATH/REF to display the following menu.
Set the trace number.
Select Ref.
Loads a reference waveform (CH1–CH4, M1–M4)
Turns inverted display on and off
Displays history waveforms (and the Mode, Average, Replay, and List items)
Enables or disables labels and units. ► section 9.9
History Waveform Display (History)
Press the History soft key to display the following menu.
When the Display Mode Is ONE or All Half Tone
Set the display mode to ONE or All Half Tone.
Turns averaging on or off
Replays history waveforms
Displays a list
Set the waveform to highlight (when Average is set to OFF).
When the Display Mode Is Accumulate
Set the display mode to Accumulate.
Set the gradation mode (Intensity, Color).
Displays a list
