9.5 Counting Edges

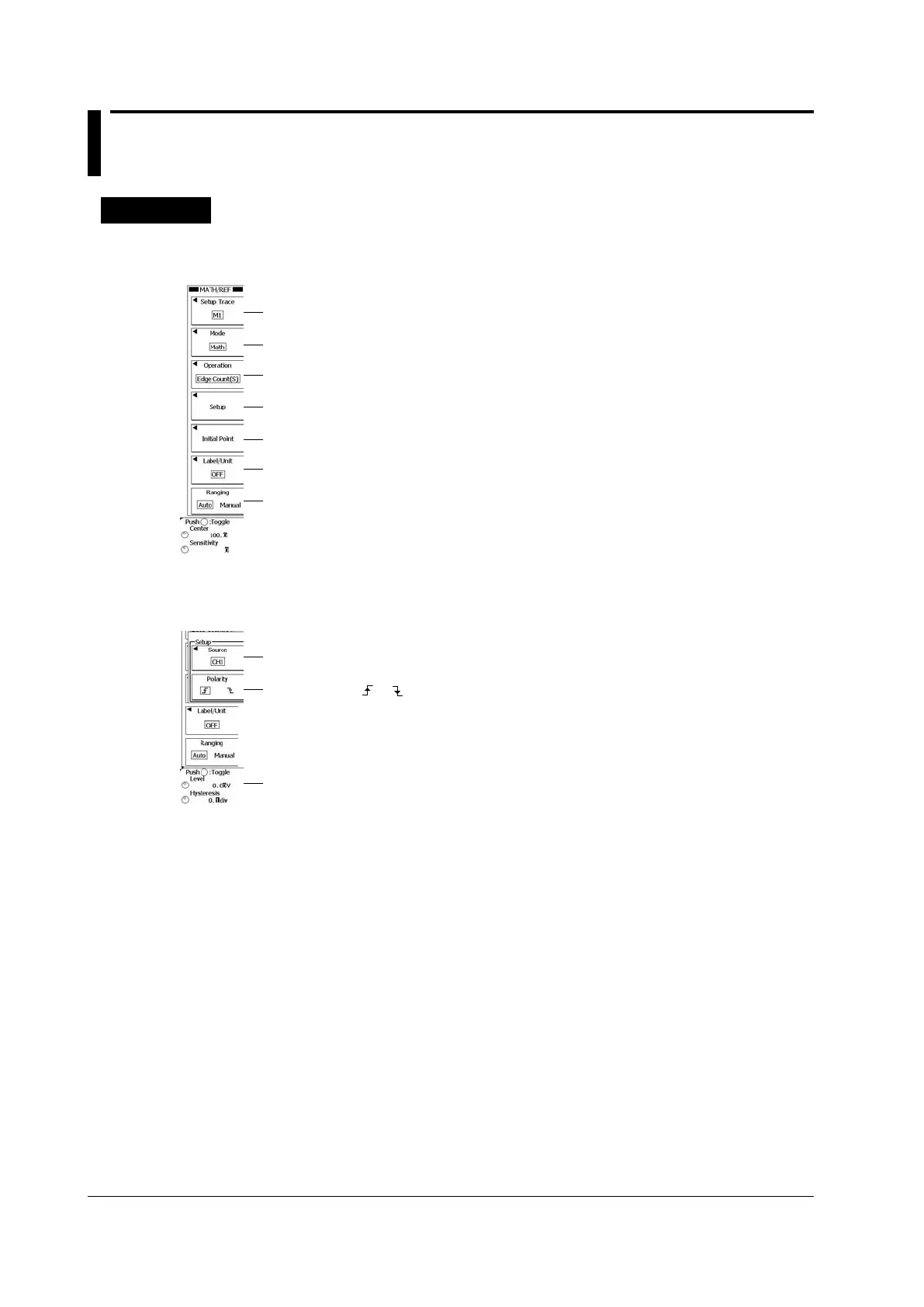

Procedure
MATH/REF Menu
Press MATH/REF to display the following menu.
Set the trace number.
Select Math.
Set the operator to Edge Count.
Set the counting conditions.
Set the count starting point (directly or using the jog shuttle).
Enables or disables labels and units. â–º section 9.9
Set the display range. â–º section 9.2
Setting the Counting Conditions (Setup)
Press the Setup soft key to display the following menu.
Set the computation source waveform (CH1–CH4, M1;
you can select M1 when the selected trace number is one of the numbers from M2 to M4).
Set the slope to or .
Configure the detection level and the hysteresis.
To Next Page
