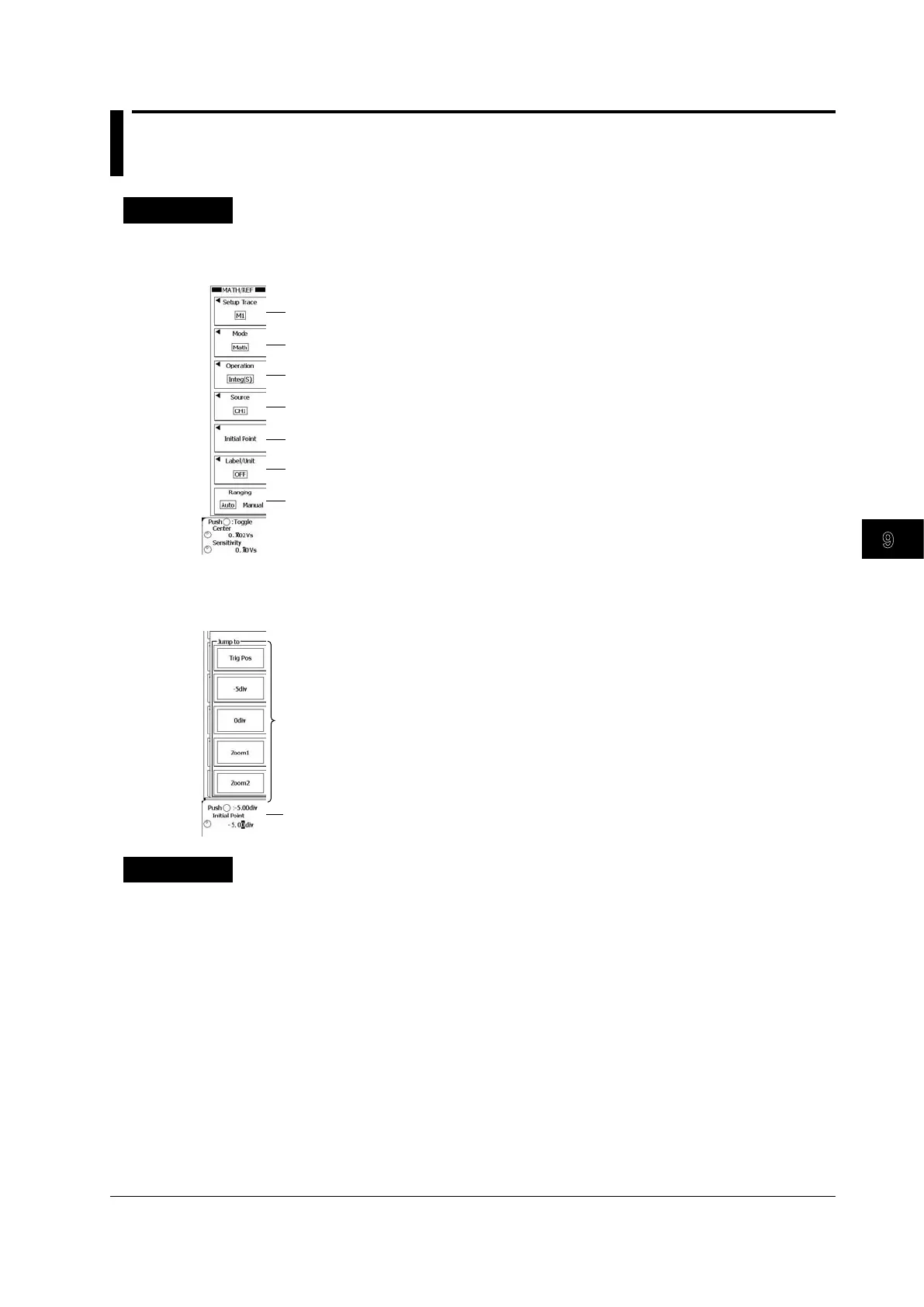

9.4 Performing Integration

Procedure

MATH/REF Menu

Press MATH/REF to display the following menu.

Set the trace number.

Select Math.

Set the operator to Integ.

Set the computation source waveform (CH1–CH4, M1;

you can select M1 when the selected trace number is one of the numbers from M2 to M4).

Set the initial point.

Enables or disables labels and units. ► section 9.9

Set the display range. ► section 9.2

Setting the Initial Computation Point (Initial Point)

Press the Initial Point soft key to display the following menu.

Set the initial point.

Set the initial point directly

(Trig Pos, –5div, 0div, Zoom1, Zoom2).

Explanation

The DL6000/DLM6000 integrates the waveform assigned to Source with the initial computation point

set to zero.

Initial Computation Point (Initial Point)

Set the initial point of computation.

• Settable range: –5 div to 5 div

• Default value: –5 div

You can also set the initial point to one of the following points.

Trig Pos (trigger position), –5 divisions, 0 divisions, Zoom1 (the center of Zoom1), or Zoom2 (the

center of Zoom2)
