6-70
IM DLM6054-01EN

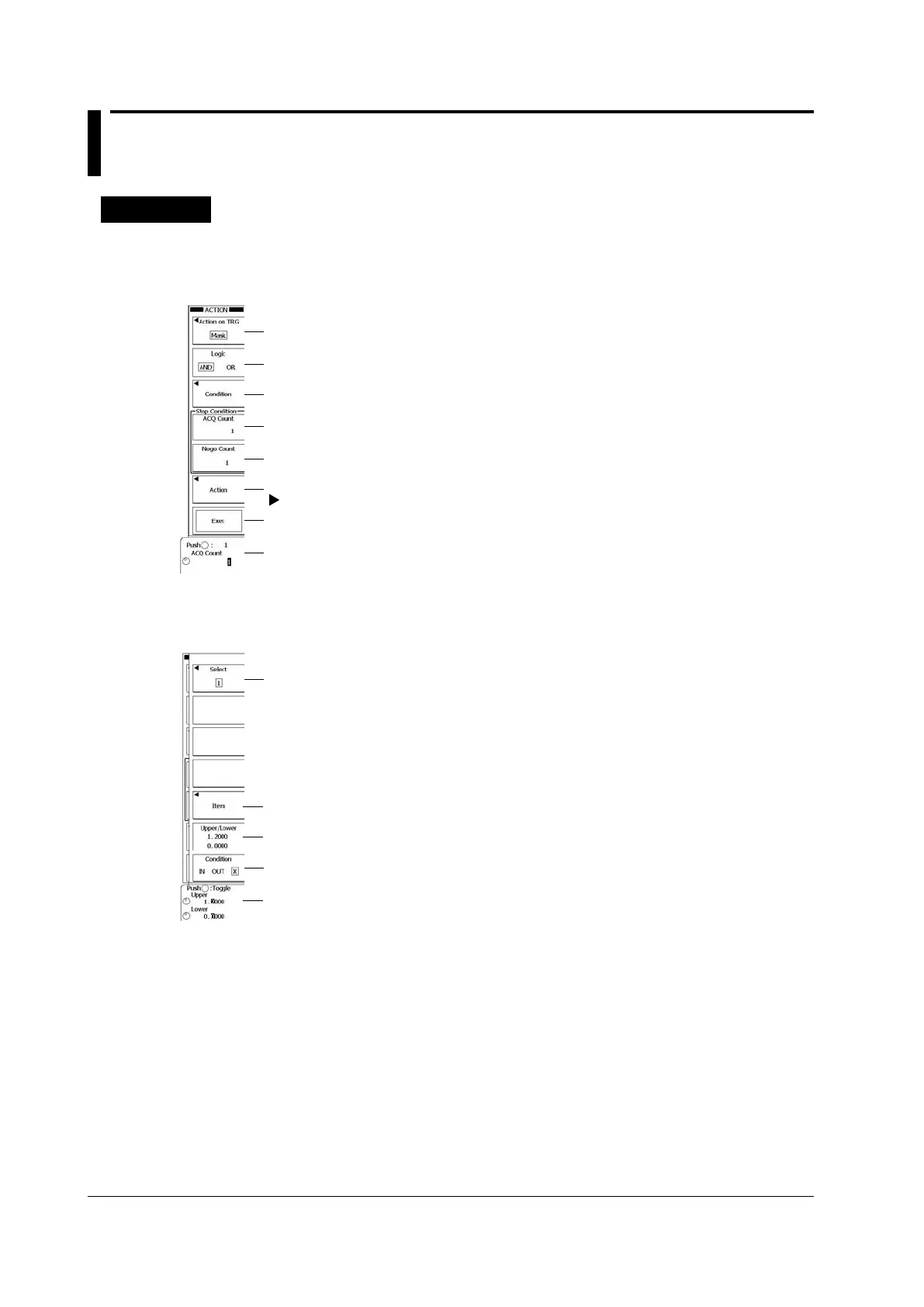

6.17 Performing GO/NO-GO Determination with
Mask Tests and Eye Patterns
Procedure
Action Go/Nogo Menu
Press SHIFT+MODE(ACTION GO/NO-GO), the Action on TRIG soft key, and then the Mask soft key
to display the following menu.
Press to configure the determination conditions.
Set the number of waveform acquisitions (using the jog shuttle).
Set the number of NO-GO determinations (using the jog shuttle).
Press to set the actions to perform when the conditions are met
section 6.15.
Executes (Exec) or stops (Abort) GO/NO-GO determination
Set the waveform acquisition count and the NO-GO determination count.
Set the GO/NO-GO determination type to Mask.
Set the determination logic (AND, OR).
Setting Conditions for Determination (Condition)
Press the Condition soft key to display the following menu.
Set the determination condition number.
Set the reference condition (IN, OUT, X).
Press to set the parameter to use for determination.
Set the upper and lower limits of the determination range.
Switches the item that the jog shuttle adjusts (between Upper and Lower).
To Next Page
