Displaying and Searching History Waveforms
3
2
1
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
Index
App
11.1 Displaying History Waveforms
Procedure
HISTORY Menu

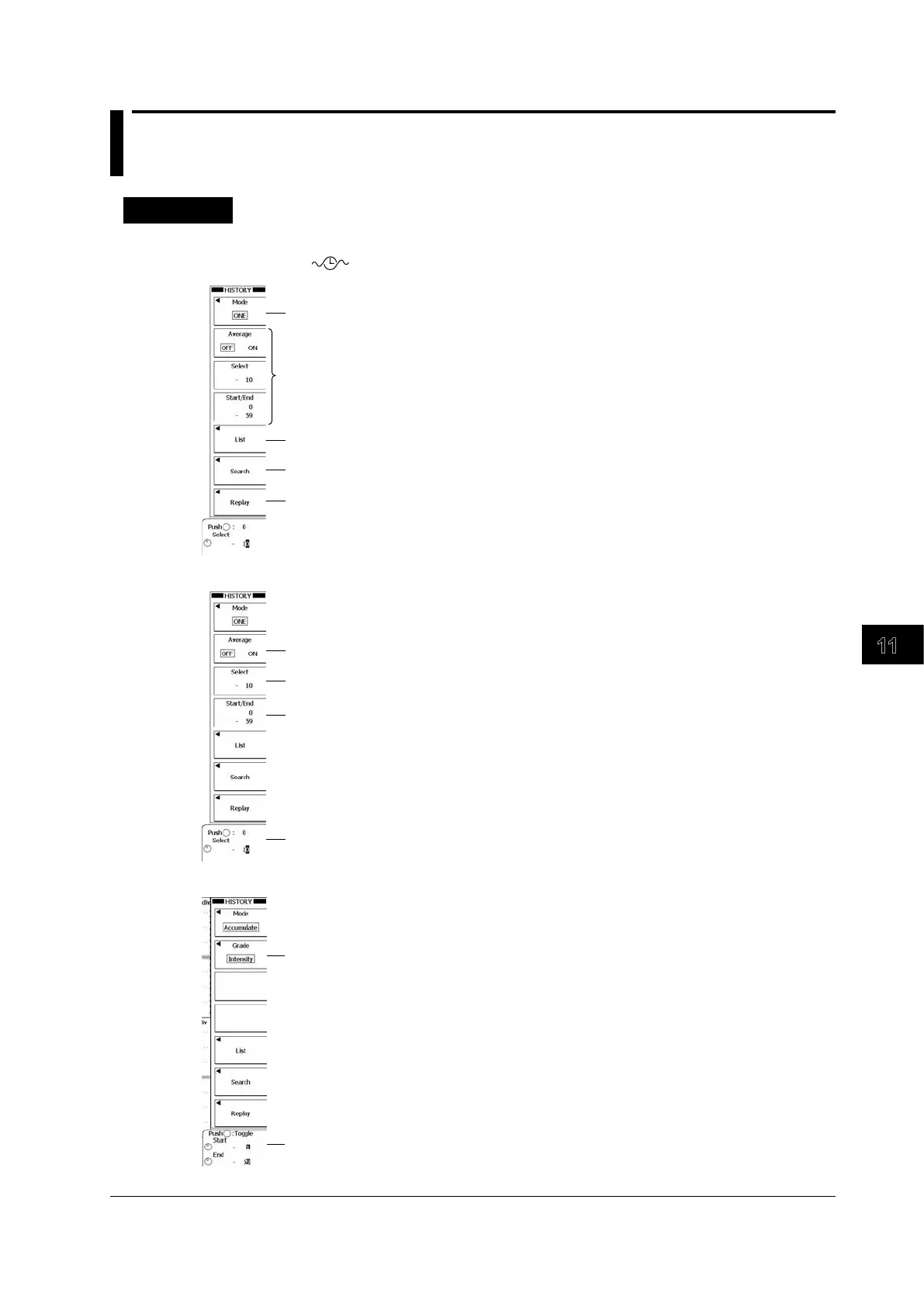

Press HISTORY ( ) to display the following menu.
Set the display mode (ONE, All Half Tone, Accumulate).
Shows a list of timestamps
► sections 11.2 and 11.3
Replay (unless Average is set to ON)
The setup menu varies depending on the display mode.
When the Display Mode is One or All Half Tone
Turns averaging on or off
Set the highlighting
(using the jog shuttle; only when Average is set to OFF).
Set the display range or the highlighting.
Set the display range (using the jog shuttle).
When the Display Mode Is Accumulate
Set the gradation mode (Intensity, Color).
Set the start and end of the display range.
Chapter 11 Displaying and Searching History Waveforms
