Making Preparations for Measurements
3-3
IM DLM6054-01EN
3
2
1
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
Index
App
3.2 Installing the Instrument
Installation Conditions
Install the instrument in a place that meets the following conditions.
Flat, Even Surface
Install the instrument with the correct orientation on a stable, horizontal surface. The recording
quality of the printer may be hindered when the instrument is placed in an unstable or inclined
place.

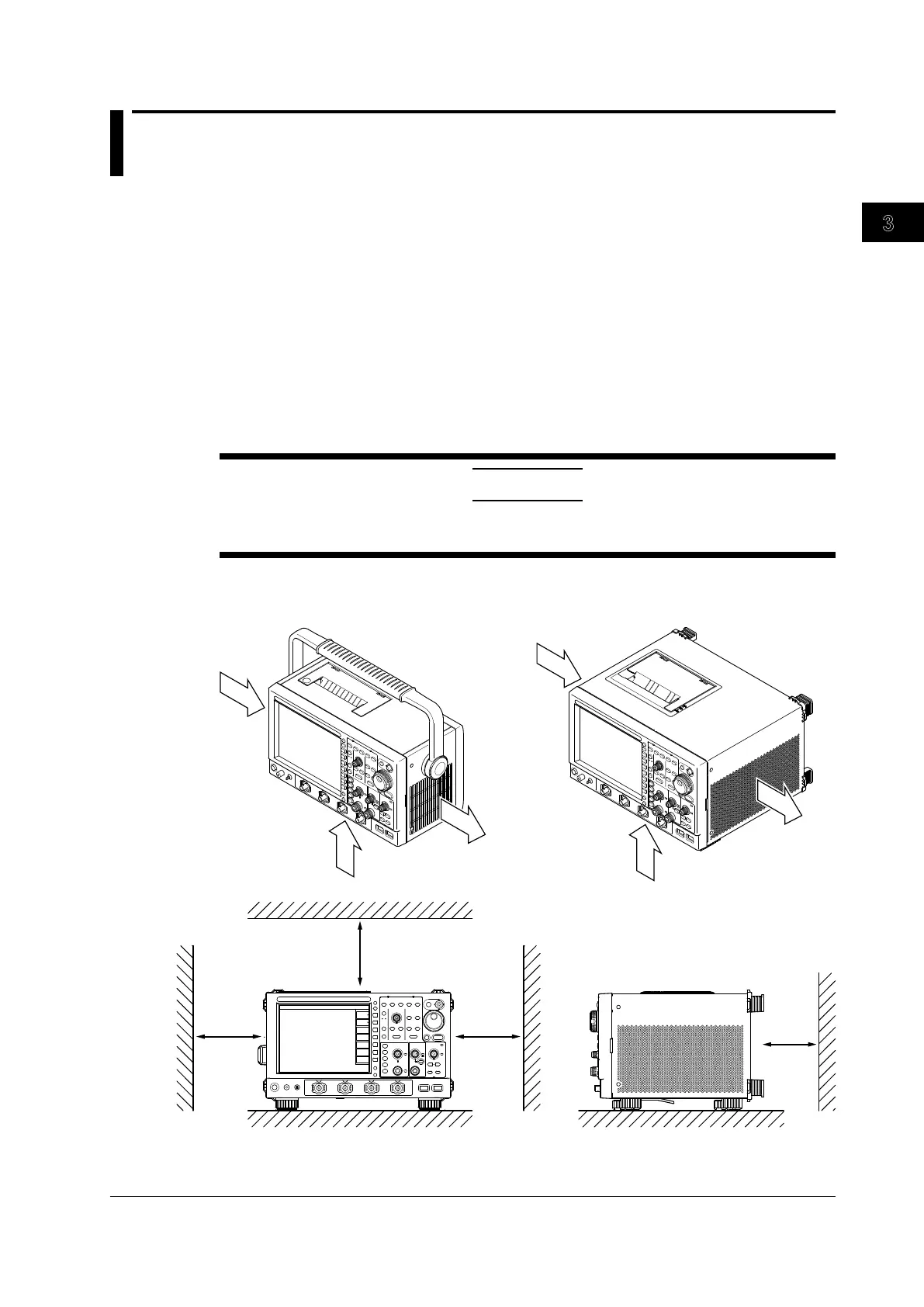

Well-Ventilated Location
Inlet holes are located on the left and bottom sides of the instrument. There are also exhaust holes
on the right side. To prevent internal overheating, allow for enough space around the instrument (see
the figure below) and do not block the inlet and exhaust holes.
CAUTION
If the inlets on the left and bottom sides of the instrument, and exhaust holes on the right side
are blocked, the temperature of the instrument will rise, and can result in damage.
10 cm or
more
10 cm or more
10 cm or
more
5 cm or
more
Including the spaces shown in the drawing above, allow for plenty of space to connect the cables and
to open and close the cover of the built-in printer.
To Next Page
