Selecting Which Parameter to Use for Determination (Item)

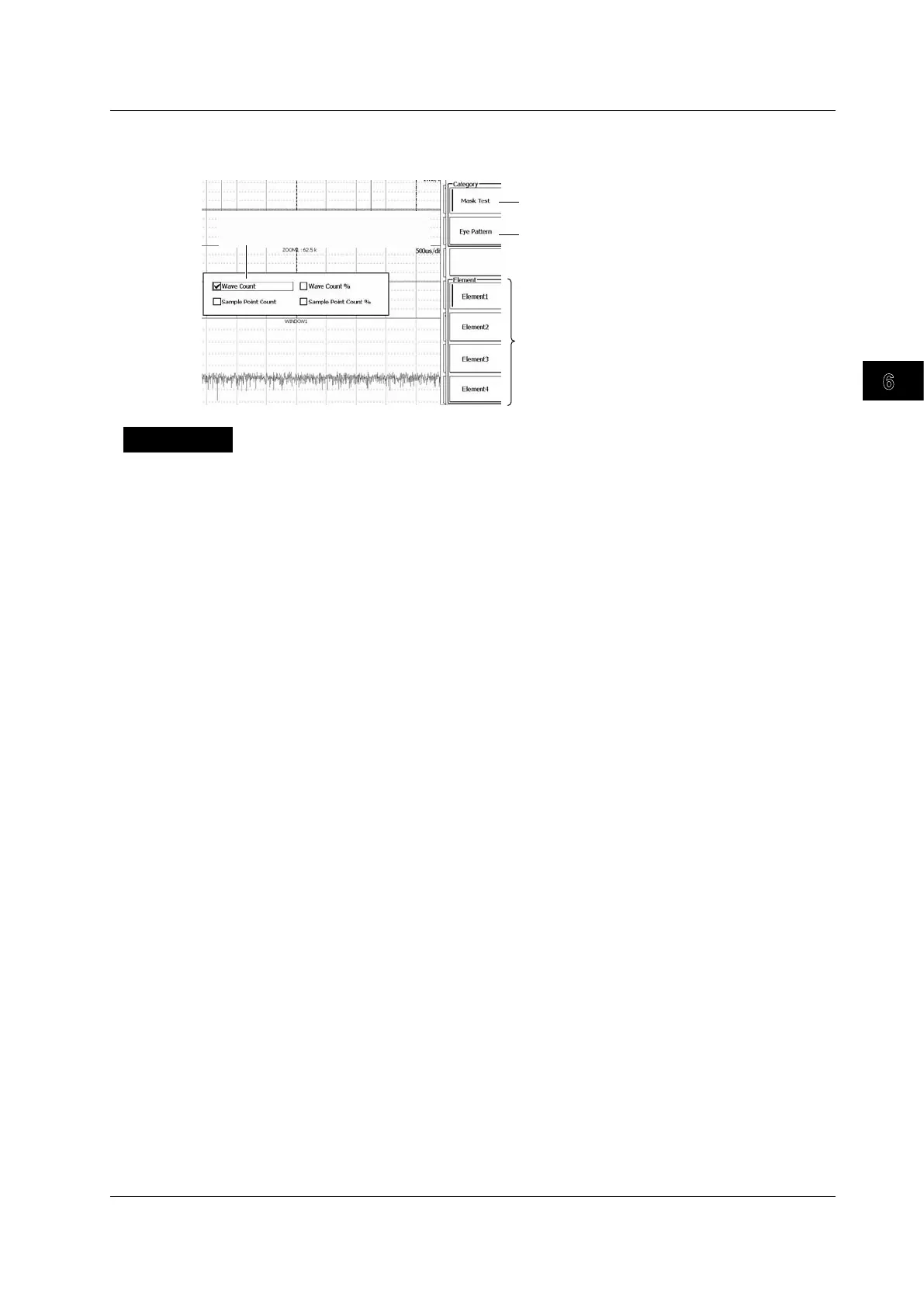

Press the Item soft key to display the following menu.
Select when you want to use a mask test item for
determination.
Select when you want to use an eye pattern item for
determination.
Select the check box of the item
you want to use for determination.
Select the element to use for determination.
Explanation
The DL6000/DLM6000 uses a mask test or eye pattern to determine whether the acquired waveform
meets the reference conditions (NO-GO result) or not (GO result). When the DL6000/DLM6000
produces a NO-GO result, it executes the specified actions.
You can specify up to four determination conditions. You can also apply AND or OR logic to the four
determination conditions.
GO/NO-GO Determination Mode (Action on TRIG)
You can set the GO/NO-GO determination mode to one of the settings below.
• OFF: The DL6000/DLM6000 will acquire the number of signals specified by ACQ Count
and then stop.
• All Condition:
The DL6000/DLM6000 executes the specified actions whenever a trigger occurs
(see section 6.14 for details).
• Zone/Parameter (GoNogo):
Select this mode when you want to perform GO/NO-GO determination using a
zone or parameter (see sections 6.15 and 6.16 for details).
• Mask (GoNogo): Select this mode when you want to perform GO
/NO-GO determination using a
mask test or eye pattern.
Determination Condition Numbers (Select)
For search conditions 1 to 4, set the determination range (the parameter upper and lower limits) and
the reference condition.
Parameter (Item)
Mask Test
Select the parameter that you want to use for determination from the measured mask test items.
You can select a determination source element from Element1 to Element4.
Eye Pattern
Select the parameter that you want to use for determination from the eye pattern test items.
Upper and Lower Parameter Limits (Upper/Lower)
Range for upper and lower limits: –1.0E + 31 to 1.0E + 31
6.17 Performing GO/NO-GO Determination with Mask Tests and Eye Patterns
