9-8
IM DLM6054-01EN

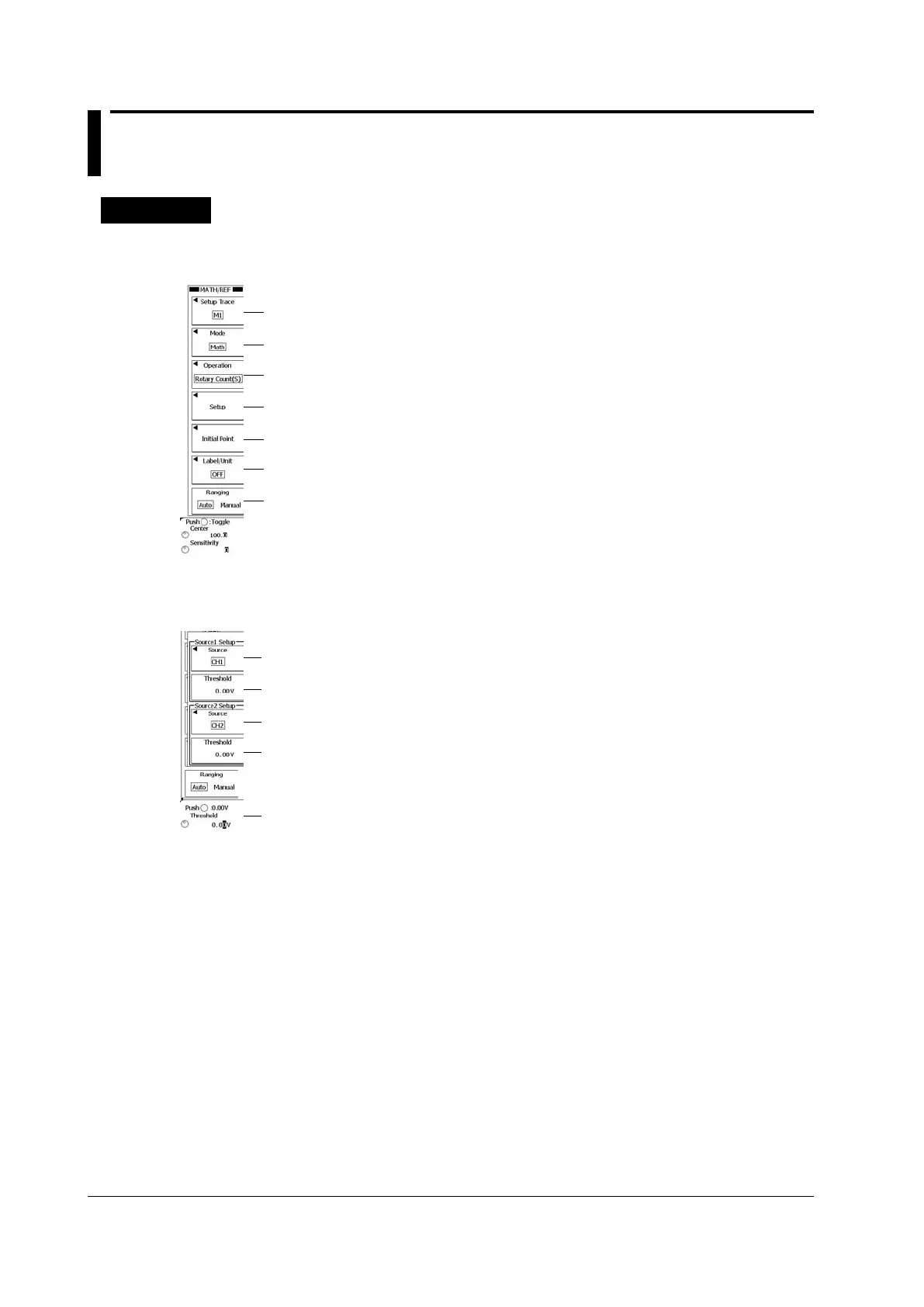

9.6 Performing Rotary Counting
Procedure
MATH/REF Menu
Press MATH/REF to display the following menu.
Set the trace number.
Select Math.
Set the operator to Rotary Count.
Set the counting conditions.
Set the count starting point (directly or using the jog shuttle).
Enables or disables labels and units. â–º section 9.9
Set the display range. â–º section 9.2
Setting the Counting Conditions (Setup)
Press the Setup soft key to display the following menu.
Set the source waveform for phase A (CH1–CH4, M1).*
Set the threshold for phase A (using the jog shuttle).
Set the source waveform for phase B (CH1–CH4, M1).*
* You can select M1 when the selected trace number is one of the numbers from M2 to M4).
Set the threshold for phase B (using the jog shuttle).
Set the thresholds for phases A and B.
To Next Page
